Sale!

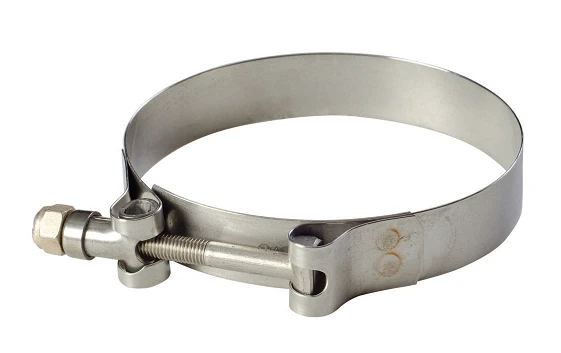

FLX2583-0475 By FlexFab | Series 2583 | T-Bolt Clamps | 4.75" Min Dia | 5.06" Max Dia | 10 Per Pack

FLX2583-0475 By FlexFab | Series 2583 | T-Bolt Clamps | 4.75″ Min Dia | 5.06″ Max Dia | 10 Per Pack

Original price was: $96.73.Current price is: $67.71.

SKU: AG9ZZ 1481976152100 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • Recommended for Charge Air Connectors and Turbo Charger Sleeves
  • Heavy-duty T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration applications in heavy-duty trucks, industrial machinery, off-road equipment, agricultural irrigation equipment and machinery. Features a 3/4″ wide stainless steel band with welded construction for reliability.
Specifications:
  • All 300 grade stainless steel T-bolt clamps
  • Hex Head: 7/16″ with Nylon insert
  • Band Width: 3/4″
Applications:
  • Recommended for silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90 and 45 degree elbows, and silfab ducting
  • Resists salt water and may be used in marine applications
CAC And Turbo Charger Hose Clamping Instructions:
  • FLX2583-0475 By FlexFab | Series 2583 | T-Bolt Clamps | 4.75" Min Dia | 5.06" Max Dia | 10 Per Pack -Hose Ware House FLX2583
  • Use only T-bolt style clamps. Constant torque T-bolt style clamps may help retain clamp load. Torque clamps to 70-75 inch-lbs.
Part Number Min. Dia. (in.) Max. Dia.(in.) PackSize Weightlbs – Per 10
FLX2583-0138 1.38″ 1.56″ 10 1 lbs
FLX2583-0150 1.50″ 1.63″ 10 1.5 lbs
FLX2583-0163 1.63″ 1.88″ 10 1.5 lbs
FLX2583-0175 1.75″ 2.00″ 10 1.5 lbs
FLX2583-0188 1.88″ 2.19″ 10 1.5 lbs
FLX2583-0200 2.00″ 2.31″ 10 1.5 lbs
FLX2583-0213 2.13″ 2.44″ 10 1.5 lbs
FLX2583-0225 2.25″ 2.56″ 10 1.5 lbs
FLX2583-0238 2.38″ 2.69″ 10 1.5 lbs
FLX2583-0250 2.50″ 2.81″ 10 1.5 lbs
FLX2583-0263 2.63″ 2.94″ 10 1.5 lbs
FLX2583-0275 2.75″ 3.06″ 10 1.5 lbs
FLX2583-0288 2.88″ 3.19″ 10 1.5 lbs
FLX2583-0300 3.00″ 3.31″ 10 1.5 lbs
FLX2583-0313 3.13″ 3.44″ 10 1.5 lbs
FLX2583-0325 3.25″ 3.56″ 10 1.5 lbs
FLX2583-0338 3.38″ 3.69″ 10 1.5 lbs
FLX2583-0350 3.50″ 3.81″ 10 1.5 lbs
FLX2583-0363 3.63″ 3.94″ 10 1.5 lbs
FLX2583-0375 3.75″ 4.06″ 10 1.5 lbs
FLX2583-0400 4.00″ 4.31″ 10 2 lbs
FLX2583-0425 4.25″ 4.56″ 10 2 lbs
FLX2583-0450 4.50″ 4.81″ 10 2 lbs
FLX2583-0475 4.75″ 5.06″ 10 2 lbs
FLX2583-0500 5.00″ 5.31″ 10 2 lbs

*Specifications for reference only.
