Sale!
FJX90-05-06-SST By Kurt Hydraulics | Jump Size | Female JIC | 90° Elbow | Swivel | PTFE Coupling | For 5/16″ Hose ID
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers

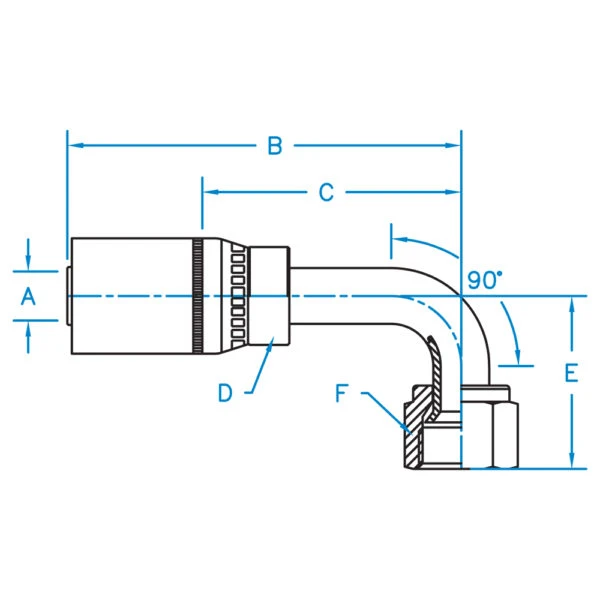

| Part Number | A | B | C | D | E | F | Hose ID (In) | Thread |
|---|---|---|---|---|---|---|---|---|
| FJX90-03-04-SST | 0.312 | N/A | N/A | N/A | N/A | N/A | 3/16″ | 7/16-20 |
| FJX90-04-04-SST | 0.250 | 2.281 | 1.312 | 5/8 | 0.875 | 9/16 | 1/4″ | 7/16-20 |
| FJX90-04-05-SST | 0.250 | 2.287 | 1.312 | 5/8 | 0875 | 9/16 | 1/4″ | 1/2-20 |
| FJX90-04-06-SST | 0.250 | 2.438 | 1.187 | 5/8 | 1.125 | 11/16 | 1/4″ | 9/16-18 |
| FJX90-05-04-SST | 0.312 | 3.025 | 1.715 | 5/8 | 0.830 | 9/16 | 5/16″ | 7/16-20 |
| FJX90-05-06-SST | 0.312 | 3.174 | 1.864 | 5/8 | 0.906 | 11/16 | 5/16″ | 9/16-18 |
| FJX90-06-04-SST | 0.375 | 2.281 | 1.312 | 5/8 | 0.875 | 9/16 | 3/8″ | 7/16-20 |
| FJX90-06-06-SST | 0.375 | 2.625 | 1.187 | 3/4 | 1.125 | 11/16 | 3/8″ | 9/16-18 |
| FJX90-07-06-SST | 0.437 | 3.334 | 1.864 | 3/4 | 0.906 | 11/16 | 7/16″ | 9/16-18 |
| FJX90-07-08-SST | 0.437 | 3.626 | 2.156 | 7/8 | 1.130 | 7/8 | 7/16″ | 3/4-16 |
| FJX90-08-08-SST | 0.500 | 2.938 | 1.317 | 7/8 | 1.375 | 7/8 | 1/2″ | 3/4-16 |
| FJX90-08-10-SST | 0.500 | 3.062 | 1.531 | 1.000 | 1.000 | 1.000 | 1/2″ | 7/8-14 |
| FJX90-10-10-SST | 0.625 | 3.062 | 1.437 | 1.000 | 1.000 | 1.000 | 5/8″ | 7/8-14 |
| FJX90-10-12-SST | 0.625 | 3.875 | 2.062 | 1-1/8 | 2.312 | 1-1/4 | 5/8″ | 1-1/16-12 |
| FJX90-12-12-SST | 0.750 | 3.875 | 2.062 | 1-1/8 | 2.312 | 1-1/4 | 3/4″ | 1-1/16-12 |
| FJX90-16-16-SST | 1.000 | 4.750 | 2.312 | 1-1/2 | 2.500 | 1-1/2 | 1.000″ | 1-5/16-12 |
