Sale!
FJX-05-06-R5 By Kurt Hydraulics | Jump Size | Female 37 Degree JIC | Swivel | For 5/16″ Hose ID
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers

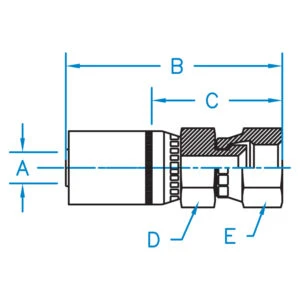

| Part Number | A | B | C | D | E | Hose ID (In) | Thread |
|---|---|---|---|---|---|---|---|
| FJX-03-04-R5 | 0.187 | 2.240 | 1.437 | 5/8 | 5/8 | 3/16″ | 7/16-20 |
| FJX-03-05-R5 | 0.187 | 2.240 | 1.437 | 5/8 | 3/4 | 3/16″ | 1/2-20 |
| For FJX-04-04-R5 Use: FJX-04-04 | |||||||
| For FJX-04-05-R5 Use: FJX-04-05 | |||||||
| For FJX-04-06-R5 Use: FJX-04-06 | |||||||
| FJX-05-04-R5 | 0.312 | 2.555 | 1.245 | 5/8 | 9/16 | 5/16″ | 7/16-20 |
| FJX-05-05-R5 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| FJX-05-06-R5 | 0.312 | 2.507 | 1.197 | 5/8 | 5/8 | 5/16″ | 9/16-18 |
| FJX-07-06-R5 | 0.437 | 2.809 | 1.339 | 3/4 | 11/16 | 7/16″ | 9/16-18 |
| FJX-07-08-R5 | 0.437 | 2.820 | 1.350 | 3/4 | 7/8 | 7/16″ | 3/4-16 |
| For FJX-08-06-R5 Use: FJX-08-06 | |||||||
| For FJX-08-08-R5 Use: FJX-08-08 | |||||||
| For FJX-08-10-R5 Use: FJX-08-10 | |||||||
| FJX-10-08-R5 | 0.625 | 3.240 | 1.500 | 7/8 | 15/16 | 5/8″ | 3/4-16 |
| FJX-10-10-R5 | 0.625 | 3.350 | 1.500 | 7/8 | 1-1/16 | 5/8″ | 7/8-14 |
| FJX-10-12-R5 | 0.625 | 3.450 | 1.625 | 1-1/8 | 1-1/4 | 5/8″ | 1-1/16 – 12 |
| FJX-14-12-R5 | 0.875 | 3.289 | 1.694 | 1-3/8 | 1-1/4 | 7/8″ | 1-1/16 – 12 |
| FJX-14-16-R5 | 0.875 | 2.351 | 1.756 | 1-3/8 | 1-1/2 | 7/8″ | 1-5/16 – 12 |
| FJX-18-20-R5 | 1.125 | 2.728 | 1.993 | 1-11/16 | 2.000 | 1-1/8″ | 1-5/8 – 12 |
| FJX-22-24-R5 | 1.375 | 4.070 | 2.100 | 2.000 | 2-1/4 | 1-3/8″ | 1-7/8 – 12 |
| FJX-29-32-R5 | 1.813 | 5.06 | 2.56 | 2-1/2 | 2-7/8 | 1-3/16″ | 2-1/2 – 12 |
