Sale!
FFX45-20-20 By Kurt Hydraulics | Female O-Ring Face Seal | 45° Elbow | Swivel | For 1 1/4″ Hose ID
Original price was: $60.85.$42.60Current price is: $42.60.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers

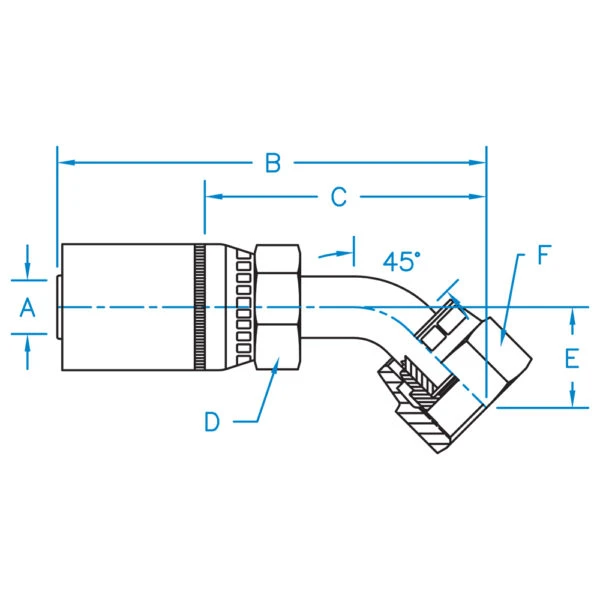

| Part Number | A | B | C | D | E | F | Hose ID (In) | Thread |
|---|---|---|---|---|---|---|---|---|
| FFX45-04-04 | 0.250 | 3.135 | 1.880 | 5/8 | 0.390 | 11/16 | 1/4″ | 9/19-18 |
| FFX45-04-06 | 0.250 | 3.225 | 1.970 | 5/8 | 0.440 | 13/16 | 1/4″ | 11/16-16 |
| FFX45-06-06 | 0.375 | 3.470 | 1.970 | 3/4 | 0.433 | 13/16 | 3/8″ | 11/16-16 |
| FFX45-06-08 | 0.375 | 3.427 | 2.310 | 3/4 | 0.590 | 15/16 | 3/8″ | 13/16-16 |
| FFX45-08-06 | 0.500 | 3.578 | 2.078 | 7/8 | 0.433 | 13/16 | 1/2″ | 11/16-16 |
| FFX45-08-08 | 0.500 | 3.500 | 2.000 | 7/8 | 0.590 | 15/16 | 1/2″ | 13/16-16 |
| FFX45-08-10 | 0.500 | 3.720 | 2.210 | 7/8 | 0.630 | 1-1/8 | 1/2″ | 1-14 |
| FFX45-08-12 | 0.500 | 3.765 | 2.265 | 1-1/8 | 0.829 | 1-3/8 | 1/2″ | 1-3/16-12 |
| FFX45-10-10 | 0.625 | 3.848 | 1.968 | 1-1/16 | 0.780 | 1-1/8 | 5/8″ | 1-14 |
| FFX45-10-12 | 0.625 | 4.329 | 2.449 | 1-1/8 | 1.120 | 1-3/8 | 5/8″ | 1-3/16-12 |
| FFX45-12-10 | 0.750 | N/A | N/A | 1-1/8 | N/A | N/A | 3/4″ | 1-14 |
| FFX45-12-12 | 0.750 | 3.89 | 2.28 | 1-1/8 | 0.830 | 1-3/8 | 3/4″ | 1-3/16-12 |
| FFX45-12-16 | 0.750 | 4.54 | 2.98 | 1-1/8 | 0.97 | 1-5/8 | 3/4″ | 1-7/16-12 |
| FFX45-16-16 | 1.000 | 4.55 | 2.82 | 1-3/8 | 0.95 | 1-5/8 | 1.000″ | 1-7/16-12 |
| FFX45L-16-16 | 1.000 | 6.1 | 4.366 | 1-3/8 | 0.94 | 1-5/8 | 1.0 | 1-7/16-12 |
| FFX45LL-16-16 | 1.000 | 8.1 | 6.37 | 1-3/8 | 0.94 | 1-5/8 | 1.0 | 1-7/16-12 |
| FFX45-16-20 | 1.000 | 5.519 | 3.239 | 1-3/8 | 1.300 | 1-7/8 | 1.000″ | 1-11/16-12 |
| FFX45-20-20 | 1.250 | 5.571 | 3.571 | 1-3/4 | 1.240 | 1-7/8 | 1.250″ | 1-11/16-12 |
Be the first to review “FFX45-20-20 By Kurt Hydraulics | Female O-Ring Face Seal | 45° Elbow | Swivel | For 1 1/4″ Hose ID”
