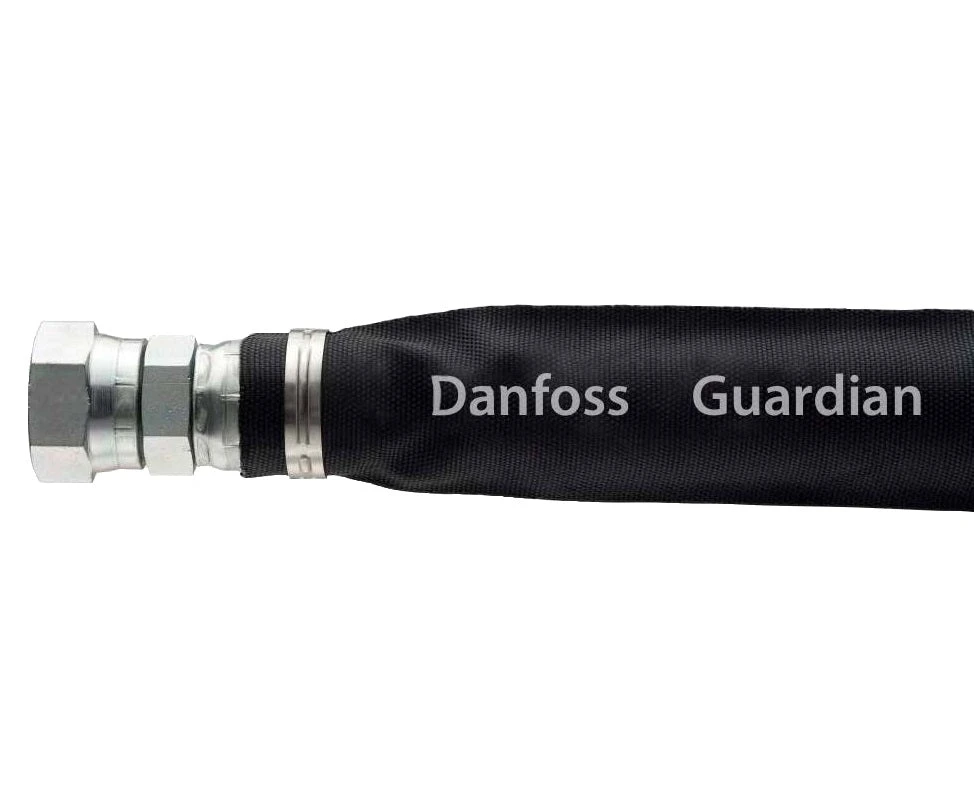

FF90754-219 Everflex By Danfoss | Guardian Sleeve | For -20 Hose Size | 2.19" Sleeve ID | 1.54" Max Hose OD That Sleeve Can Accept | 300ft Roll

FF90754-219 Everflex By Danfoss | Guardian Sleeve | For -20 Hose Size | 2.19" Sleeve ID | 1.54" Max Hose OD That Sleeve Can Accept | 300ft Roll - Image 2

FF90754-219 Everflex By Danfoss | Guardian Sleeve | For -20 Hose Size | 2.19″ Sleeve ID | 1.54″ Max Hose OD That Sleeve Can Accept | 300ft Roll

Original price was: $301.00.Current price is: $99.99.

SKU: AG9ZZ 1477001084964 Categories: Bulk Hose & Covers, Hose Covers & Protection Tags: Accessories, Aeroquip Distributor, All-categories, Collection-lvl1_All Hose Accessories, Collection-lvl2_Hose Covers And Protection, Collection-lvl3_Abrasion Covers, Guardian Sleeve, Hose-covers-and-protection, Hydraulic Hoses and Fittings, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, Unit-ft-300

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Benefits:
The ultra tight weave resists oil spillage from hose failure. Densely twisted polyamide 6 yarn offers optimum UV and abrasion protection. Tight, smooth surface resists wear.
Specifications:
Meets new line of sight operator specification EN982 ISO norm 833 EN414 and ISO 3457. Meets ASTM D6770 for abrasion resistance of textile webbing. Meets abrasion standard ISO 6945. Meets Fed-STD191-test method 5309 for abrasion. MSHA approved # IC-234/0 – meets standard application procedures for acceptance of flame resistance solid products taken into mines. Meets conductivity requirements of ISO 8031.
Assembly:
Slide sleeve onto the hose before assembling the ends. After assembly, clamp the hose onto the fitting using a metal banding product.

Chemical Compatibility Chart for Guardian Sleeving
Chemical	Compatibility
Gasoline	Very Good
Oil	Very Good
Mineral and Vegetable Oil	Very Good
Ionic Metallic Solutions	Very Good
Alcohols	Very Good
Diluted Bases	Very Good
Diluted acids	Good
Benzene	Very Good
Acetone	Very Good
Ether	Very Good
Carbon Tetrachloride	Very Good
Chlorine Based Solvent	Very Good
Mold, Bacteria, Moths	Very Good
Strong and concentrated acids; ie. Hcl or Formic Acid may have some corrosive action.

Guardian Sleeve Properties:
Denier:	1260	Melting Point:	215 °C / 420 °F
Material:	Polyamide 6, made with pre-dyed yarn	Dim. Stability:	Great resistance to sun, atmospheric agents and aging
Toxicity:	Non-Toxic	Color:	Black

Guardian Sleeving Pressures
Properties	Specication	Description
Burst Pressure	16,000 psi	Capable to contain hose burst up to 16,000 psi
Pin Hole Leak Pressure	4,000 psi	Sustained 4,000 psi pin hole deflection from focused 1mm pin hole
Abrasion Cycles	250,000	Holds up to 250,000 abrasion cycles per ISO 6945

Part Number	Nominal ID	A – Flat Width +/- 0.125	Weight per 300 ft Roll	Rolls per Box	Sleeve ID	Max Hose OD that Sleeve can accept	Hose Size as a Ref.
FF90754-68	0.68″	1.290″	7.43 lbs	8	0.68″	0.52″	-4
FF90754-79	0.79″	1.400″	8.50 lbs	7	0.79″	0.61″	-4
FF90754-91	0.91″	1.590″	9.70 lbs	6	0.91″	0.70″	-6
FF90754-98	0.98″	1.590″	10.13 lbs	6	0.98″	0.76″	-6
FF90754-106	1.06″	1.825″	11.10 lbs	5	1.06″	0.80″	-6
FF90754-122	1.22″	2.076″	12.60 lbs	4	1.22″	0.92″	-8
FF90754-142	1.42″	2.390″	14.50 lbs	4	1.42″	1.02″	-10
FF90754-157	1.57″	2.650″	16.10 lbs	3	1.57″	1.13″	-10
FF90754-173	1.73″	2.910″	17.70 lbs	3	1.73″	1.24″	-12
FF90754-185	1.85″	3.100″	18.80 lbs	3	1.85″	1.34″	-16
FF90754-209	2.09″	3.470″	21.10 lbs	2	2.09″	1.50″	-16
FF90754-219	2.19″	3.630″	22.10 lbs	2	2.19″	1.54″	-20
FF90754-238	2.38″	3.925″	23.90 lbs	2	2.38″	1.70″	-20
FF90754-288	2.88″	4.714″	28.60 lbs	2	2.88″	2.00″	-20
FF90754-366	3.66″	5.938″	36.10 lbs	1	3.66″	2.40″	-24

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
