Sale!

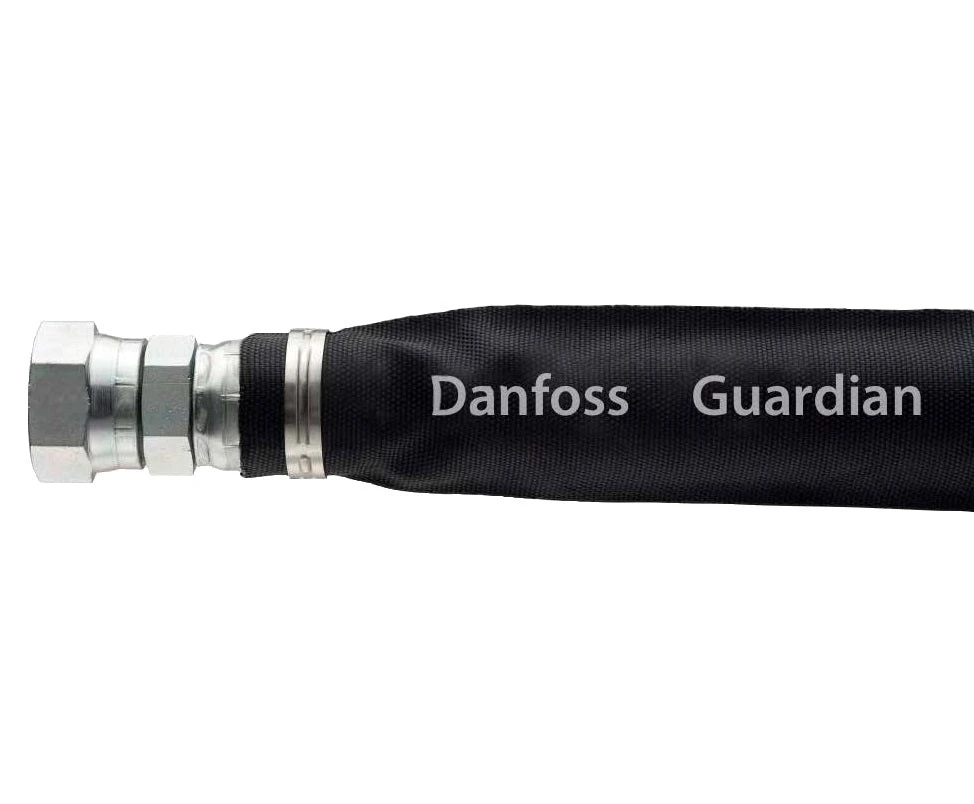

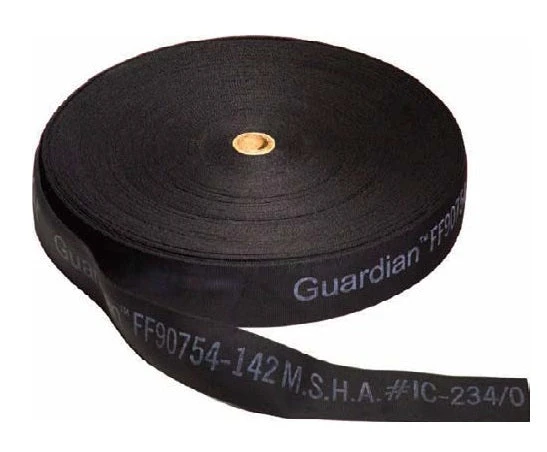

FF90754-142 Everflex By Danfoss | Guardian Sleeve | For -10 Hose Size | 1.42″ Sleeve ID | 1.02″ Max Hose OD That Sleeve Can Accept | 300ft Roll
Original price was: $391.00.$97.99Current price is: $97.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Benefits: | |||
|---|---|---|---|
| |||
| Specifications: | |||
| |||
| Assembly: | |||
|
| Chemical Compatibility Chart for Guardian Sleeving | |
|---|---|
| Chemical | Compatibility |
| Gasoline | Very Good |
| Oil | Very Good |
| Mineral and Vegetable Oil | Very Good |
| Ionic Metallic Solutions | Very Good |
| Alcohols | Very Good |
| Diluted Bases | Very Good |
| Diluted acids | Good |
| Benzene | Very Good |
| Acetone | Very Good |
| Ether | Very Good |
| Carbon Tetrachloride | Very Good |
| Chlorine Based Solvent | Very Good |
| Mold, Bacteria, Moths | Very Good |
| Strong and concentrated acids; ie. Hcl or Formic Acid may have some corrosive action. | |
| Guardian Sleeve Properties: | |||
|---|---|---|---|
| Denier: | 1260 | Melting Point: | 215 °C / 420 °F |
| Material: | Polyamide 6, made with pre-dyed yarn | Dim. Stability: | Great resistance to sun, atmospheric agents and aging |
| Toxicity: | Non-Toxic | Color: | Black |
| Guardian Sleeving Pressures | ||
|---|---|---|
| Properties | Specication | Description |
| Burst Pressure | 16,000 psi | Capable to contain hose burst up to 16,000 psi |
| Pin Hole Leak Pressure | 4,000 psi | Sustained 4,000 psi pin hole deflection from focused 1mm pin hole |
| Abrasion Cycles | 250,000 | Holds up to 250,000 abrasion cycles per ISO 6945 |
| Part Number | Nominal ID | A – Flat Width +/- 0.125 | Weight per 300 ft Roll | Rolls per Box | Sleeve ID | Max Hose OD that Sleeve can accept | Hose Size as a Ref. |
|---|---|---|---|---|---|---|---|
| FF90754-68 | 0.68″ | 1.290″ | 7.43 lbs | 8 | 0.68″ | 0.52″ | -4 |
| FF90754-79 | 0.79″ | 1.400″ | 8.50 lbs | 7 | 0.79″ | 0.61″ | -4 |
| FF90754-91 | 0.91″ | 1.590″ | 9.70 lbs | 6 | 0.91″ | 0.70″ | -6 |
| FF90754-98 | 0.98″ | 1.590″ | 10.13 lbs | 6 | 0.98″ | 0.76″ | -6 |
| FF90754-106 | 1.06″ | 1.825″ | 11.10 lbs | 5 | 1.06″ | 0.80″ | -6 |
| FF90754-122 | 1.22″ | 2.076″ | 12.60 lbs | 4 | 1.22″ | 0.92″ | -8 |
| FF90754-142 | 1.42″ | 2.390″ | 14.50 lbs | 4 | 1.42″ | 1.02″ | -10 |
| FF90754-157 | 1.57″ | 2.650″ | 16.10 lbs | 3 | 1.57″ | 1.13″ | -10 |
| FF90754-173 | 1.73″ | 2.910″ | 17.70 lbs | 3 | 1.73″ | 1.24″ | -12 |
| FF90754-185 | 1.85″ | 3.100″ | 18.80 lbs | 3 | 1.85″ | 1.34″ | -16 |
| FF90754-209 | 2.09″ | 3.470″ | 21.10 lbs | 2 | 2.09″ | 1.50″ | -16 |
| FF90754-219 | 2.19″ | 3.630″ | 22.10 lbs | 2 | 2.19″ | 1.54″ | -20 |
| FF90754-238 | 2.38″ | 3.925″ | 23.90 lbs | 2 | 2.38″ | 1.70″ | -20 |
| FF90754-288 | 2.88″ | 4.714″ | 28.60 lbs | 2 | 2.88″ | 2.00″ | -20 |
| FF90754-366 | 3.66″ | 5.938″ | 36.10 lbs | 1 | 3.66″ | 2.40″ | -24 |
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
