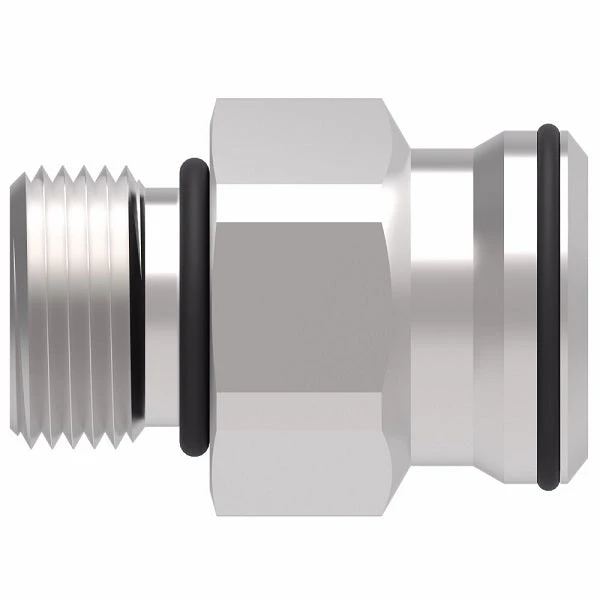

FF3042-0806S Aeroquip By Danfoss | Male SAE ORB To Female STC (Snap To Connect) Adapter (FF) | -08 Male SAE O-Ring Boss X -06 Female STC | Steel

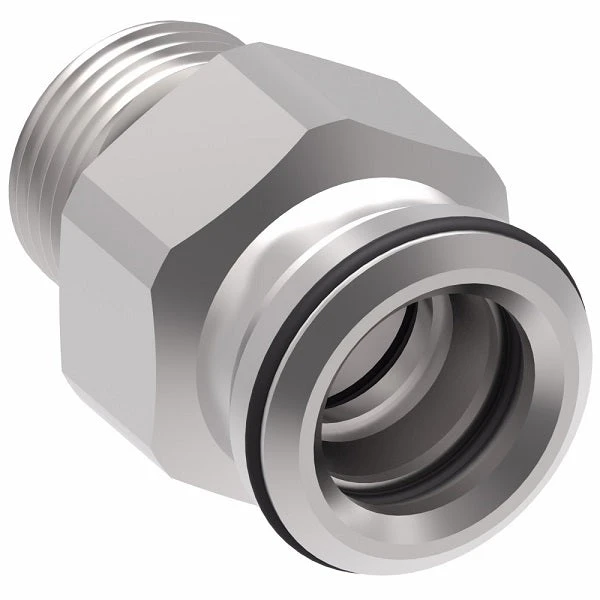

FF3042-0806S Aeroquip By Danfoss | Male SAE ORB To Female STC (Snap To Connect) Adapter (FF) | -08 Male SAE O-Ring Boss X -06 Female STC | Steel - Image 2

FF3042-0806S Aeroquip By Danfoss | Male SAE ORB To Female STC (Snap To Connect) Adapter (FF) | -08 Male SAE O-Ring Boss X -06 Female STC | Steel - Image 3

FF3042-0806S Aeroquip By Danfoss | Male SAE ORB To Female STC (Snap To Connect) Adapter (FF) | -08 Male SAE O-Ring Boss X -06 Female STC | Steel

Original price was: $29.90.Current price is: $20.93.

SKU: AG9ZZ 8200215068837 Category: Adapters & More Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Hydraulic Adapters, Created in 2023, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Hydraulic Power Steering Auxiliary Hydraulics Power Brakes Turbochargers Fuel Injection Systems Hydraulic Work Circuits Air Conditioning, Refrigeration and Truck and Bus Refrigerant Supply Lines Compressor Discharge Power Steering Oil Cooler Pneumatic Brakes Air Supply Lines Cooling Transmission Oil Coolers Heat Exchangers Equipment Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
Positive round-wire style latching mechanism. Swivels for installation (in absence of pressure). Low profile; compact design. Elastomeric o-ring seal. Capable of direct porting into valve blocks or manifolds. Dual purpose dust seal/release sleeve. Simple stamped release tool for disconnecting.
Benefits:
Fast reliable one-hand connections requiring no assembly tools. Eliminates cross-threading, over or undertorquing, and hose twisting. Installs easily in confined areas. Virtually zero leak performance per SAE J1176. Direct porting eliminates adapters to maximize cost savings. Resists external contamination. Allows easy disconnection with release tool (sold separately).
Technical Info:
Danfoss STC Connectors.PDF


Steel Part Number	A	B	DIA	E	Hex	“T” Thread	STC Release Tool
FF3042-0406S	1.18″	0.36″	0.67″	0.17″	0.75″	7/16-20 2A	FF90213-06
FF3042-0506S	–	–	–	–	–	–	FF90213-06
FF3042-0606S	1.13″	0.39″	0.67″	0.30″	0.75″	9/16-18 2A	FF90213-06
FF3042-0608S	1.33″	0.39″	0.80″	0.30″	0.83″	9/16-18 2A	FF90213-08
FF3042-0806S	1.18″	0.44″	0.67″	0.39″	0.98″	3/4-16 2A	FF90213-06
FF3042-0808S	1.36″	0.44″	0.80″	0.39″	0.94″	3/14-16 2A	FF90213-08
FF3042-0810S	1.44″	0.44″	0.96″	0.39″	1.00″	3/4-16 2A	FF90213-10
FF3042-1008S	1.38″	0.50″	0.80″	0.48″	1.06″	7/8-14 2A	FF90213-08
FF3042-1010S	1.50″	0.50″	0.96″	0.48″	1.06″	7/8-14 2A	FF90213-10
FF3042-1012S	1.76″	0.50″	1.23″	0.48″	1.26″	7/8-14 2A	FF90213-12
FF3042-1210S	1.59″	0.59″	0.96″	0.61″	1.26″	1-1/16-12 2A	FF90213-10
FF3042-1212S	1.85″	0.59″	1.23″	0.61″	1.26″	1-1/16-12 2A	FF90213-12
FF3042-1616S	2.00″	0.59″	1.61″	0.84″	1.62″	1-5/16-12 2A	FF90213-01-16S
