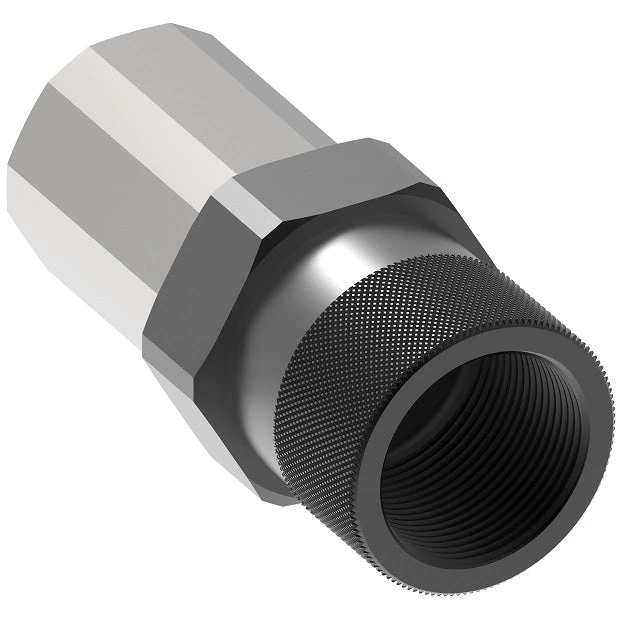

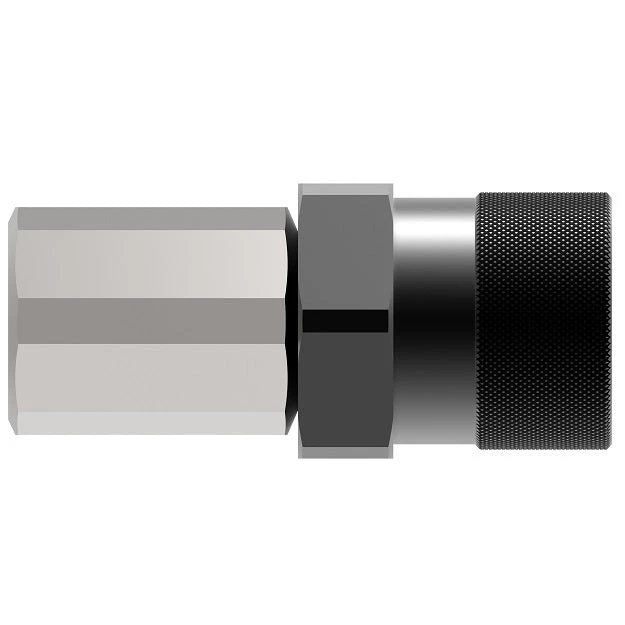

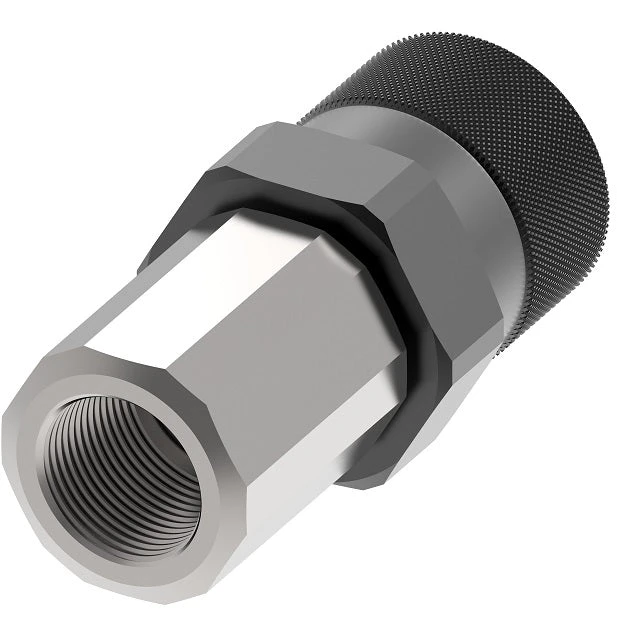

FD96-1004-24-24 Hansen® By Danfoss | Quick Disconnect Coupling | FD96 Series | 1-1/2″ Female SAE O-Ring Boss X 1-1/2″ High Pressure Thread To Connect Flush Face | Socket | NBR Seal | Steel
Original price was: $371.00.$98.99Current price is: $98.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Body Size | Max. Operating Pressure | Min. Burst Pressure | Rated Flow | Fluid Loss | Req. Torque to Connect | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connected | Plug Male Half | Socket Female Half | Connected | Plug Male Half | Socket Female Half | ||||||||||||
| 1/4″ | 600 bar | 8,700 psi | 600 bar | 8,700 psi | 420 bar | 6,090 psi | 1,500 bar | 21,750 psi | 1,500 bar | 21,750 psi | 1,260 bar | 18,270 psi | 12 lpm | 3.2 gpm | .012 cc | 29-37 lbs. | 40-50 N |
| 3/8″ | 550bar | 7,980 psi | 550 bar | 7,980 psi | 330 bar | 4,785 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 1,000 bar | 14,500 psi | 23 lpm | 6.1 gpm | .040 cc | 37-44 lbs. | 50-60 N |
| 1/2″ | 550 bar | 7,980 psi | 550 bar | 7,980 psi | 330 bar | 4,785 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 1,000 bar | 14,500 psi | 45 lpm | 11.9 gpm | .025 cc | 48-55 lbs. | 65-75 N |
| 3/4″ | 550bar | 7,980 psi | 550 bar | 7,980 psi | 330 bar | 4,785 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 1,000 bar | 14,500 psi | 74 lpm | 19.6 gpm | .033 cc | 52-59 lbs. | 70-80 N |
| 1″ | 500bar | 7,250 psi | 500 bar | 7,250 psi | 330 bar | 4,785 psi | 1,250 bar | 18,125 psi | 1,250 bar | 18,125 psi | 1,000 bar | 14,500 psi | 100 lpm | 26.5 gpm | .018 cc | 66-81 lbs. | 90-110 N |
| 1-1/4″ | 470 bar | 6,800 psi | 470 bar | 6,800 psi | 300 bar | 4,350 psi | 1,200 bar | 17,400 psi | 1,200 bar | 17,400 psi | 800 bar | 11,600 psi | 189 lpm | 50.1 gpm | .060 cc | 92-107 lbs. | 125-145 N |
| 1-1/2″ | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 270 bar | 3,915 psi | 1,700 bar | 15,950 psi | 1,100 bar | 15,950 psi | 800 bar | 11,600 psi | 288 lpm | 76.3 gpm | .200 cc | 114-129 lbs. | 155-175 N |
| 2″ | 350 bar | 5,080 psi | 350 bar | 5,080 psi | 270 bar | 3,915 psi | 1,100 bar | 15,950 psi | 1,100 bar | 15,950 psi | 800 bar | 11,600 psi | 379 lpm | 100.4 gpm | .350 cc | 236-258 lbs. | 320-355 N |
 |
 |
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Plug/Male (Figure 1) |
Socket/Female (Figure 2) |
Connected Length |
|||||||||
| FD96 Series | Female SAE O-Ring Boss | |||||||||||
| Part Number | Body Size |
Port Size |
Coupling Type |
Thread | Type | Figure | Dimensions | Dust Cap/Plug Part Number |
|||
| A | B | Hex 1 | Plug & Socket Connected Length L |
||||||||
| FD96-1004-06-04 | 1/4″ | 3/8″ | Socket/Female | 9/16-18 UNF | Female SAE ORB | 2 | 2.25″ (57.1mm) |
1.53″ (38.8mm) |
1.06″ (27mm) |
3.54″ (90.0mm) |
FD96-1009-04 |
| FD96-1005-06-04 | 1/4″ | 3/8″ | Plug/Male | 9/16-18 UNF | Female SAE ORB | 1 | 2.87″ (72.8mm) |
1.37″ (34.8mm) |
0.87″ (22mm) |
3.54″ (90.0mm) |
FD96-1010-04 |
| FD96-1004-08-06 | 3/8″ | 1/2″ | Socket/Female | 3/4-16 UNF | Female SAE ORB | 2 | 2.79″ (70.8mm) |
1.65″ (41.8mm) |
1.18″ (30mm) |
5.16″ (131.0mm) |
FD96-1009-06 |
| FD96-1005-08-06 | 3/8″ | 1/2″ | Plug/Male | 3/4-16 UNF | Female SAE ORB | 1 | 3.43″ (87.0mm) |
1.49″ (37.8mm) |
1.06″ (27mm) |
5.16″ (131.0mm) |
FD96-1010-06 |
| FD96-1004-12-08 | 1/2″ | 3/4″ | Socket/Female | 1-1/16-12 UNF | Female SAE ORB | 2 | 3.06″ (84.8mm) |
1.96″ (49.8mm) |
1.42″ (36mm) |
6.30″ (160.0mm) |
FD96-1009-08 |
| FD96-1005-12-08 | 1/2″ | 3/4″ | Plug/Male | 1-1/16-12 UNF | Female SAE ORB | 1 | 3.95″ (100.4mm) |
1.80″ (45.8mm) |
1.42″ (36mm) |
6.30″ (160.0mm) |
FD96-1010-08 |
| FD96-1004-12-12 | 3/4″ | 3/4″ | Socket/Female | 1-1/16-12 UNF | Female SAE ORB | 2 | 3.34″ (84.9mm) |
2.12″ (53.8mm) |
1.61″ (41mm) |
6.50″ (165.0mm) |
FD96-1009-12 |
| FD96-1005-12-12 | 3/4″ | 3/4″ | Plug/Male | 1-1/16-12 UNF | Female SAE ORB | 1 | 4.02″ (102.0mm) |
1.96″ (49.8mm) |
1.42″ (36mm) |
6.50″ (165.0mm) |
FD96-1010-12 |
| FD96-1004-12-16 | 1″ | 3/4″ | Socket/Female | 1-1/16-12 UN | Female SAE ORB | 2 | 3.93″ (99.7mm) |
2.31″ (58.8mm) |
1.81″ (46mm) |
– | FD96-1009-16 |
| FD96-1005-12-16 | 1″ | 3/4″ | Plug/Male | 1-1/16-12 UN | Female SAE ORB | 1 | 4.55″ (115.6mm) |
2.16″ (54.8mm) |
1.81″ (46mm) |
– | FD96-1010-16 |
| FD96-1004-20-20 | 1-1/4″ | 1-1/4″ | Socket/Female | 1-5/8-12 UN | Female SAE ORB | 2 | 4.20″ (106.8mm) |
2.75″ (69.8mm) |
2.17″ (55mm) |
– | FD96-1009-20 |
| FD96-1005-20-20 | 1-1/4″ | 1-1/4″ | Plug/Male | 1-5/8-12 UN | Female SAE ORB | 1 | 4.86″ (123.4mm) |
2.54″ (64.5mm) |
2.17″ (55mm) |
– | FD96-1010-20 |
| FD96-1004-24-24 | 1-1/2″ | 1-1/2″ | Socket/Female | 1-7/8-12 UN | Female SAE ORB | 2 | 5.26″ (133.5mm) |
3.62″ (92.0mm) |
2.56″ (65mm) |
10.08″ (256.0mm) |
FD96-1009-24 |
| FD96-1005-24-24 | 1-1/2″ | 1-1/2″ | Plug/Male | 1-7/8-12 UN | Female SAE ORB | 1 | 5.91″ (150.0mm) |
3.54″ (89.8mm) |
2.56″ (65mm) |
10.08″ (256.0mm) |
FD96-1010-24 |
