| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Coupling Size | Max. Operating Pressure | Minimum Burst Pressure Connected | Vacuum Connected Only | Rated Flow | Air Inclusion | Fluid Loss | |||
|---|---|---|---|---|---|---|---|---|---|
| in | bar | psi | bar | psi | in/hg | lpm | gpm | cc.max. | cc.max. |
| 1/2 | 689 | 10,000 | 2,758 | 40,000 | 28 | 170 | 45 | – | – |
![]() |
![]() |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|

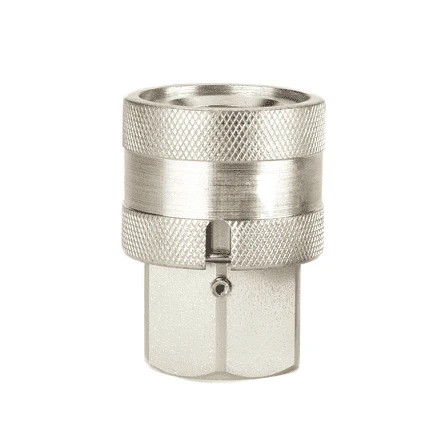

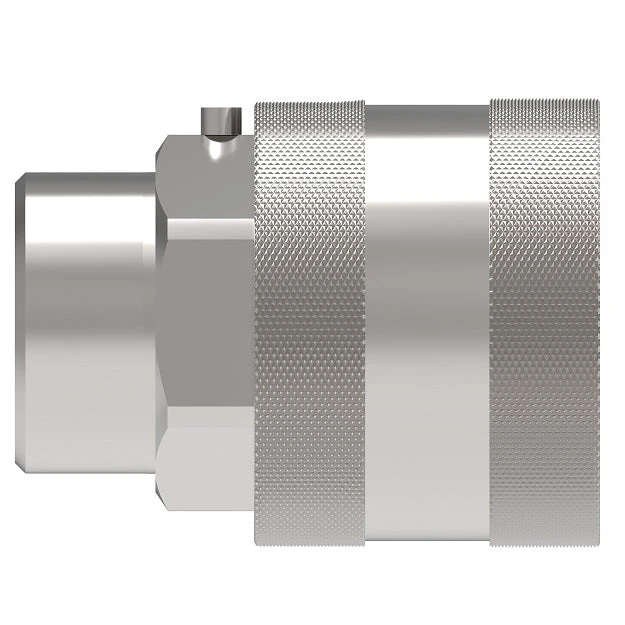

Socket/Female (Figure 1) |
Plug/Male (Figure 2) |
|||||||||
| Dimensions (Female NPT) | ||||||||||
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||
| NBR | FKM | A | B | Hex 1 | ||||||
| Steel | ||||||||||
| FD69-1002-06-08 (has no seal) | Plug/Male | 1/2″ | 3/8″ | 3/8-18 | Female NPT | 1 | 1.85″ (47.0mm) |
1.64″ (41.7mm) |
1.00″ (25.4mm) |
|
| FD69-1001-06-08 | FD69-1026-06-08 | Socket/Female | 1/2″ | 3/8″ | 3/8-18 | Female NPT | 2 | 2.13″ (54.1mm) |
1.62″ (41.1mm) |
1.25″ (31.8mm) |
| FD69-1002-08-08 (has no seal) | Plug/Male | 1/2″ | 1/2″ | 1/2-14 | Female NPT | 1 | 2.34″ (59.4mm) |
1.64″ (41.7mm) |
1.12″ (28.4mm) |
|
| FD69-1001-08-08 | FD69-1026-08-08 | Socket/Female | 1/2″ | 1/2″ | 1/2-14 | Female NPT | 2 | 2.13″ (54.1mm) |
1.62″ (41.1mm) |
1.25″ (31.8mm) |
| Stainless Steel | ||||||||||
| FD69-1012-08-08 (has no seal) | Plug/Male | 1/2″ | 1/2″ | 1/2-14 | Female NPT | 1 | 2.34″ (59.4mm) |
1.64″ (41.7mm) |
1.12″ (28.4mm) |
|
| FD69-1011-08-08 | – | Socket/Female | 1/2″ | 1/2″ | 1/2-14 | Female NPT | 2 | 2.13″ (54.1mm) |
1.62″ (41.1mm) |
1.31″ (33.3mm) |
| Dimensions (Complete Couplings | Female NPT) | ||||||||
|---|---|---|---|---|---|---|---|---|
![]() |
||||||||
|
Complete (Figure 3) |
||||||||
| Part Number | Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |
| NBR | P | P1 | A | |||||
| Steel | ||||||||
| FD69-1000-080808 | Complete | 1/2″ | 1/2″ | 1/2-14 | 1/2-14 | Female NPT | 3 | 3.43″ (87.1mm) |
| FD69-1000-060806 | Complete | 1/2″ | 3/8″ | 3/8-18 | 3/8-18 | Female NPT | 3 | 2.94″ (74.7mm) |
| Stainless Steel | ||||||||
| FD69-1010-080808 | Complete | 1/2″ | 1/2″ | 1/2-14 | 1/2-14 | Female NPT | 3 | 3.43″ (87.1mm) |
| Repair Kit | Female Interface Seal | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number NBR | Coupling Size | ||||||||||
| FF10166 | 1/2″ | ||||||||||
