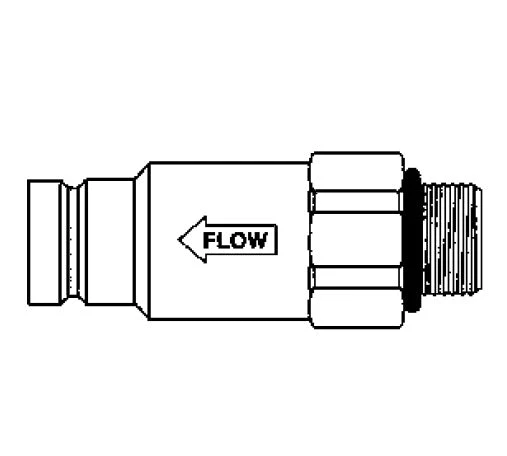

FD49-1057-08-06 Hansen® By Danfoss | Quick Disconnect Coupling | FD49 Series | 1/2″ Male SAE O-Ring Boss X 3/4″ NFPA T3.20.15 HTMA Interchange | Plug | Valved | Buna-N Seal | Steel
Original price was: $68.64.$48.05Current price is: $48.05.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| About Twin-Guard™ Seal System: |
|
| Body Size* | Max. Operating Pressure | Min. Burst Pressure Connected | Vacuum Connected Only | Rated Flow | Air Inclusion | Fluid Loss | |||
|---|---|---|---|---|---|---|---|---|---|
| bar | psi | bar | psi | lpm | gpm | ||||
| 3/8″ | 207 bar | 3,000 psi | 621 bar | 9,000 psi | 28 in/Hg. | 38 lpm | 10 gpm | .01 cc max | .02 cc max |
 |
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Plug/Male (Figure 1) |
Socket/Female (Figure 2) |
|||||||||
| FD49 Series | Female NPT, Valved | ||||||||||
| Part Number | Body Size |
Port Size |
Coupling Type |
Thread | Type | Figure | Dimensions | |||
| Buna-N Seal | A | B | Hex 1 | Hex 2 | ||||||
| FD49-1002-06-06 | 3/8″ | 3/8″ | Plug/Male | 3/8-18 | Female NPT | 1 | 2.62″ (66.5mm) |
– | 1.00″ (25.4mm) |
– |
| FD49-1001-06-06 | 3/8″ | 3/8″ | Socket/Female | 3/8-18 | Female NPT | 2 | 2.74″ (69.6mm) |
1.20″ (30.5mm) |
1.00″ (25.4mm) |
1.06″ (26.9mm) |
| FD49-1002-08-06 | 3/8″ | 1/2″ | Plug/Male | 1/2-14 | Female NPT | 1 | 2.75″ (69.9mm) |
– | 1.06″ (26.9mm) |
– |
| FD49-1001-08-06 | 3/8″ | 1/2″ | Socket/Female | 1/2-14 | Female NPT | 2 | 2.85″ (72.4mm) |
1.20″ (30.5mm) |
– | 1.06″ (26.9mm) |
| FD49 Series | Female SAE O-Ring Boss, Valved | ||||||||||
| FD49-1004-08-06 | 3/8″ | 3/4″ | Plug/Male | 3/4-16 | Female SAE ORB | 1 | 2.75″ (69.9mm) |
– | 1.06″ (26.9mm) |
– |
| FD49-1005-08-06 | 3/8″ | 3/4″ | Socket/Female | 3/4-16 | Female SAE ORB | 2 | 2.82″ (71.6mm) |
1.20″ (30.5mm) |
– | 1.06″ (26.9mm) |
 |
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Plug/Male (Figure 3) |
Socket/Female (Figure 4) |
|||||||||
| FD49 Series | Male SAE O-Ring Boss, Valved | ||||||||||
| Part Number | Body Size |
Port Size |
Coupling Type |
Thread | Type | Figure | Dimensions | |||
| Buna-N Seal | A | B | Hex 1 | Hex 2 | ||||||
| FD49-1057-06-06 | 3/8″ | 9/16″ | Plug/Male | 9/16-18 | Male SAE ORB | 3 | 2.99″ (75.9mm) |
– | 1.00″ (25.4mm) |
– |
| FD49-1014-06-06 | 3/8″ | 9/16″ | Socket/Female | 9/16-18 | Male SAE ORB | 4 | 3.22″ (81.8mm) |
1.20″ (30.5mm) |
1.00″ (25.4mm) |
1.06″ (26.9mm) |
| FD49-1057-08-06 | 3/8 “ | 3/4″ | Plug/Male | 3/4-16 | Male SAE ORB | 3 | 2.99″ (75.9mm) |
– | 1.00″ (25.4mm) |
– |
| FD49-1014-08-06 | 3/8″ | 3/4″ | Socket/Female | 3/4-16 | Male SAE ORB | 4 | 3.28″ (83.3mm) |
1.20″ (30.5mm) |
1.00″ (25.4mm) |
1.06″ (26.9mm) |
| FD49 Series | Dust Cap/Plug | ||
|---|---|---|
 | Part Number | Body Size |
| FD49-1042-06 | 3/8″ | |
