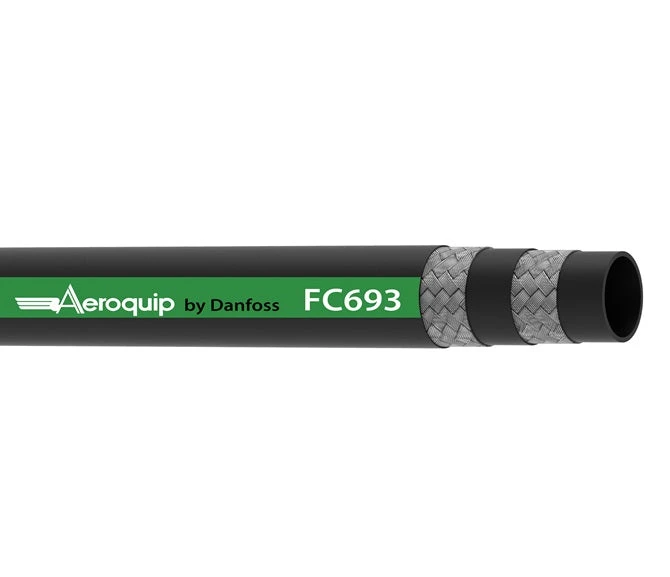

FC693-06 Aeroquip By Danfoss | EPDM 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | 0.38″ ID

Original price was: $20.79.Current price is: $14.55.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hose Properties:
Application:	Ground support equipment (GSE), industrial phosphate ester-based fluids, water glycol systems.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	EPDM Rubber
Reinforcement:	Double Wire Braid	Cover:	Green EPDM Rubber
Temperature Range:	-40°F to +175°F (-40°C to +75°C)

Part Number	Hose ID			Nominal Hose OD		Max. Operating Pressure		Min. Burst Pressure		Min. Bend Radius		Weight
Part Number	DN	mm	in	mm	in	bar	psi	bar	psi	mm	in	kg/m	lbs/ft
FC693-04	6	6,4mm	0.25″	15,2mm	0.60″	350,0 bar	5000 psi	1400,0 bar	20000 psi	101,6mm	4.00″	0,37 kg/m	0.25 lbs/ft
FC693-06	10	9,7mm	0.38″	19,1mm	0.75″	280,0 bar	4000 psi	1120,0 bar	16000 psi	127,0mm	5.00″	0,54 kg/m	0.36 lbs/ft
FC693-08	12	12,7mm	0.50″	22,1mm	0.87″	245,0 bar	3500 psi	980,0 bar	14000 psi	177,8mm	7.00″	0,60 kg/m	0.40 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
