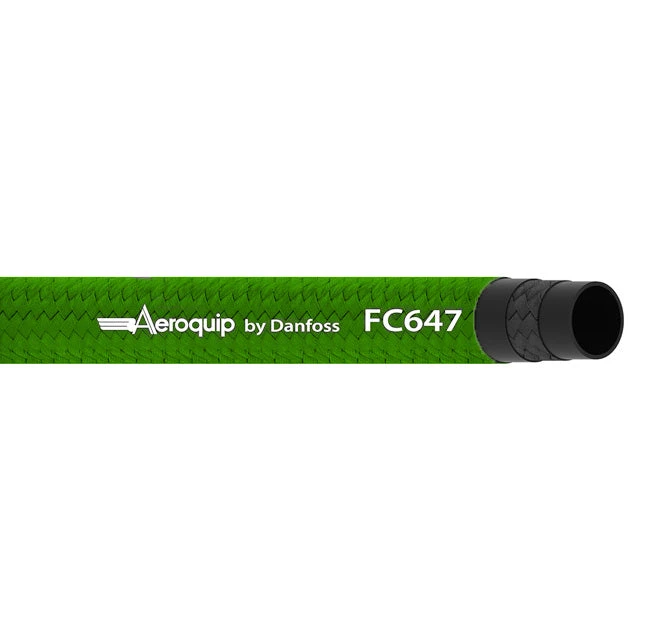

FC647-10GRN Aeroquip By Danfoss | Low Pressure SOCKETLESS™ Textile Braided Hose | 0.63″ ID | Green
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications. Not approved for air brake applications. | Other Ratings: | N/A |
| Tube: | Synthetic Rubber | Cover: | Polyester Braided |
| Reinforcement: | Textile Braid | Temperature Range: | -40°F to +212°F (-40°C to +100°C) Water not to exceed +150°F (+66°C). Air not to exceed +165°F (+74°C). |
| Part Number Black | Part Number Green | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum Service | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | ft | in/Hg | ||
| FC647-04BLK | – | 6 | 6,4mm | 0.25″ | 13,2mm | 0.52″ | 25,0 bar | 360 psi | 99,0 bar | 1440 psi | 76,2mm | 3.00″ | 94,8 kPa | 28 in/Hg | 0,09 kg/m | 0.06 lbs/ft |
| FC647-06BLK | FC647-06GRN | 10 | 9,7mm | 0.38″ | 16,8mm | 0.66″ | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 76,2mm | 3.00″ | 94,8 kPa | 28 in/Hg | 0,15 kg/m | 0.09 lbs/ft |
| FC647-08BLK | – | 13 | 12,7mm | 0.50″ | 20,1mm | 0.79″ | 21,0 bar | 300 psi | 84,0 bar | 1200 psi | 127,0mm | 5.00″ | 94,8 kPa | 28 in/Hg | 0,18 kg/m | 0.12 lbs/ft |
| FC647-10BLK | FC647-10GRN | 16 | 16,0mm | 0.63″ | 23,4mm | 0.92″ | 17,0 bar | 250 psi | 70,0 bar | 1000 psi | 152,4mm | 6.00″ | 60,9 kPa | 18 in/Hg | 0,24 kg/m | 0.16 lbs/ft |
| FC647-12BLK | – | 19 | 19,1mm | 0.75″ | 26,7mm | 1.05″ | 17,0 bar | 250 psi | 70,0 bar | 1000 psi | 177,8mm | 7.00″ | 60,9 kPa | 18 in/Hg | 0,27 kg/m | 0.18 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
