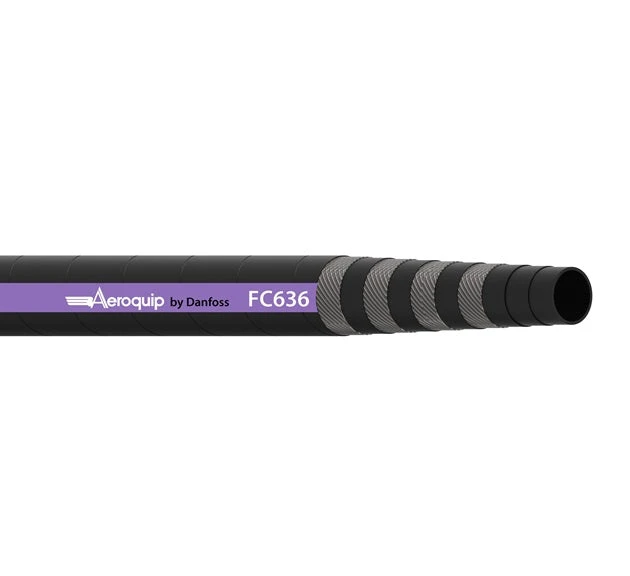

FC636-12 Aeroquip By Danfoss | EPDM 4 Spiral Wire Hydraulic Hose | SAE 100R12 | 0.75″ ID
Original price was: $41.81.$29.27Current price is: $29.27.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Ground support equipment (GSE), industrial phosphate ester based fluids, water glycol systems. | SAE Rating: | Meets: SAE 100R12 |
| Other Ratings: | N/A | Tube: | EPDM Rubber |
| Reinforcement: | 4-Spiral Wire | Cover: | Green EPDM rubber |
| Temperature Range: | -40°F to +174°F (-40°C to +79°C) | ||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC636-12 | 19 | 19,0mm | 0.75″ | 31,5mm | 1.24″ | 275,0 bar | 4000 psi | 1100,0 bar | 16000 psi | 241,0mm | 9.50″ | 1,31 kg/m | 0.88 lbs/ft |
| FC636-16 | 25 | 25,4mm | 1.00″ | 38,6mm | 1.52″ | 275,0 bar | 4000 psi | 1100,0 bar | 16000 psi | 305,0mm | 12.00″ | 1,74 kg/m | 1.17 lbs/ft |
| FC636-20 | 31 | 31,8mm | 1.25″ | 47,5mm | 1.87″ | 207,0 bar | 3000 psi | 828,0 bar | 12000 psi | 419,0mm | 16.50″ | 2,31 kg/m | 1.55 lbs/ft |
| FC636-24 | 38 | 38,1mm | 1,50″ | 54,9mm | 2.16″ | 172,0 bar | 2500 psi | 688,0 bar | 10000 psi | 508,0mm | 20.00″ | 2,92 kg/m | 1.96 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
