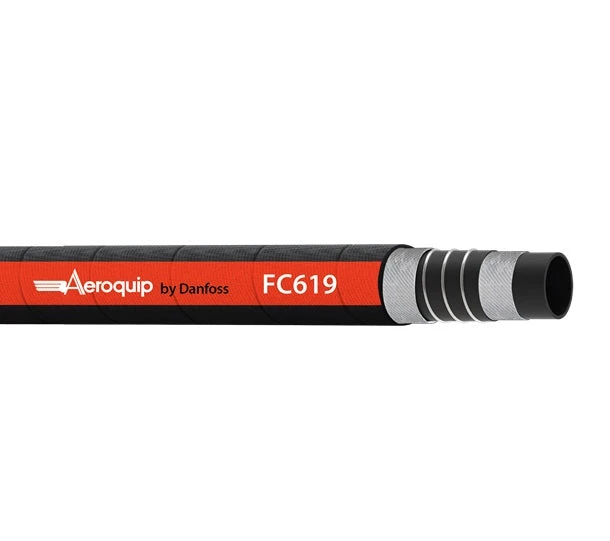

FC619-20 Aeroquip By Danfoss | Flexible 1/2 SAE Bend Radius Helical Wire Hydraulic Hose | SAE 100R4 | 1.25″ ID
Original price was: $23.78.$16.65Current price is: $16.65.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Suction and transfer applications for petroleum hydraulic fluids, fuel, lubricating oils, gasoline, water and many other industrial fluids. | SAE Rating: | Exceeds: SAE 100R4, ISO 18752 |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Helical Wire Between Two Textile Reinforcement Layers | Cover: | Synthetic Rubber |
| Temperature Range: | -40°F to +275°F (-40°C to +135°C) | ||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum service | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kPa | in/Hg | kg/m | lbs/ft | |
| FC619-12 | 19 | 19,1mm | 0.75″ | 30,7mm | 1.21″ | 21,0 bar | 300 psi* | 84,0 bar | 1200 psi | 63,5mm | 2.50″ | 94,8kPa | 28in/Hg | 0,68 kg/m | 0.46 lbs/ft |
| FC619-16 | 25 | 25,4mm | 1.00″ | 37,6mm | 1.48″ | 17,0 bar | 250 psi* | 70,0 bar | 1000 psi | 76,2mm | 3.00″ | 94,8kPa | 28in/Hg | 0,83 kg/m | 0.56 lbs/ft |
| FC619-20 | 31 | 31,8mm | 1.25″ | 44,5mm | 1.75″ | 14,0 bar | 200 psi* | 56,0 bar | 800 psi | 102,0mm | 4.00″ | 94,8kPa | 28in/Hg | 1,16 kg/m | 0.78 lbs/ft |
| FC619-24 | 38 | 38,1mm | 1.50″ | 51,8mm | 2.04″ | 10,5 bar | 150 psi* | 42,0 bar | 600 psi | 127,0mm | 5.00″ | 94,8kPa | 28in/Hg | 1,49 kg/m | 1.00 lbs/ft |
| FC619-32 | 51 | 50,8mm | 2.00″ | 64,8mm | 2.55″ | 7,0 bar | 100 psi* | 28,0 bar | 400 psi | 152,4mm | 6.00″ | 94,8kPa | 28in/Hg | 1,83 kg/m | 1.23 lbs/ft |
| FC619-40 | 63 | 63,5mm | 2.50″ | 79,2mm | 3.12″ | 4,0 bar | 62 psi | 17,0 bar | 250 psi | 355,6mm | 14.00″ | 94,8kPa | 28in/Hg | 2,35 kg/m | 1.58 lbs/ft |
| FC619-48 | 80 | 76,2mm | 3.00″ | 95,3mm | 3.75″ | 4,0 bar | 62 psi | 16,0 bar | 225 psi | 457,2mm | 18.00″ | 94,8kPa | 28in/Hg | 3,36 kg/m | 2.26 lbs/ft |
* Maximum working pressure for band clamp type fittings is 3,4 bar [50 psi]
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
