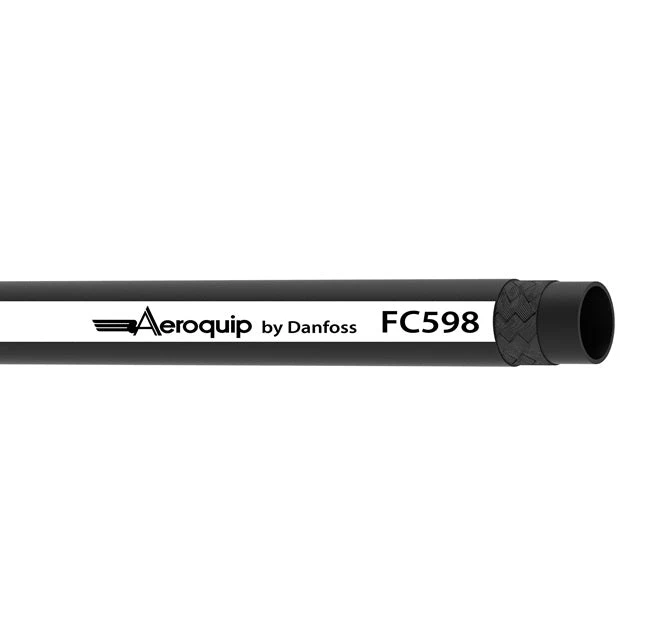

FC598-10 Aeroquip By Danfoss | AQP SOCKETLESS™ Single Textile Braid Hose | SAE 100R6 | 0.63″ ID
Original price was: $12.54.$8.78Current price is: $8.78.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Low pressure return lines in hydraulic systems. | SAE Rating: | Exceeds: SAE 100R6 |
| Other Ratings: | N/A | Tube: | AQP Elastomer |
| Reinforcement: | Single Textile Braid | Cover: | Black AQP Elastomer |
| Temperature Range: | -40°F to +302°F (-40°C to +150°C) | ||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum Service | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kPa | in/Hg | kg/m | lbs/ft | |
| FC598-04 | 6 | 6,4mm | 0.25″ | 12,2mm | 0.50″ | 28,0 bar | 400 psi | 112,0 bar | 1600 psi | 63,5mm | 2.50″ | 94,8 kPa | 28 in/Hg | 0,12 kg/m | 0.08 lbs/ft |
| FC598-06 | 10 | 9,7mm | 0.38″ | 15,7mm | 0.62″ | 28,0 bar | 400 psi | 112,0 bar | 1600 psi | 75,0mm | 3.00″ | 94,8 kPa | 28 in/Hg | 0,19 kg/m | 0.13 lbs/ft |
| FC598-08 | 13 | 12,7mm | 0.50″ | 19,1mm | 0.78″ | 28,0 bar | 400 psi | 112,0 bar | 1600 psi | 100,0mm | 4.00″ | 94,8 kPa | 28 in/Hg | 0,22 kg/m | 0.15 lbs/ft |
| FC598-10 | 16 | 16,0mm | 0.63″ | 23,1mm | 0.91″ | 24,0 bar | 350 psi | 98,0 bar | 1400 psi | 125,0mm | 5.00″ | 60,9 kPa | 18 in/Hg | 0,30 kg/m | 0.20 lbs/ft |
| FC598-12 | 19 | 19,1mm | 0.75″ | 26,2mm | 1.03″ | 24,0 bar | 350 psi | 98,0 bar | 1400 psi | 150,0mm | 6.00″ | 60,9 kPa | 18 in/Hg | 0,42 kg/m | 0.28 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
