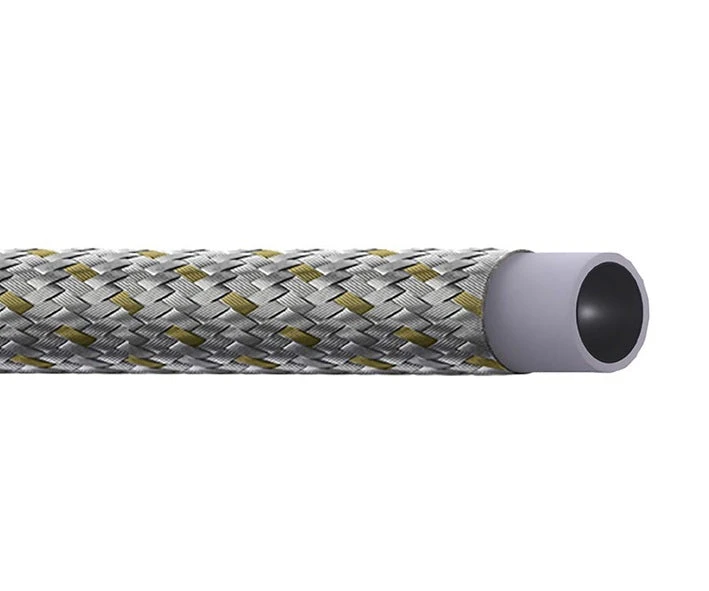

FC465-16 Everflex By Danfoss | Smooth Bore Non-Dissipating Teflon™ Hose | 0.88″ Hose ID | 1.06″ Hose OD | 304 Stainless Steel Braid
Original price was: $54.38.$38.07Current price is: $38.07.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Applications: | Steam, Compressor discharge, Hot air, Most chemical applications, Industrial and manufacturing, Pharmaceutical applications | SAE Ratings: | N/A |
| Other Ratings: | N/A | Tube: | Conductive Teflon™ Fluoropolymer |
| Reinforcement: | 304 Stainless Steel Braid | Cover: | Single Layer of 304 Stainless Steel Braid Tracer Wire in S.S. Braid for Identification |
| Operating Parameters: | -100°F to +500°F (-73°C to +260°C) Steam 200 psi at +300°F max | ||
| Part Number | Hose ID | Hose OD | Operating Pressure | Min. Burst Pressure | E Series Operating Pressure** | E Series Min. Burst Pressure** | Min. Bend Radius | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC465-04 | 4.8mm | 0.19″ | 8.2mm | 0.32″ | 207 bar | 3000 psi | 827 bar | 12000 psi | 241 bar | 3500 psi | 965 bar | 14000 psi | 50.8mm | 2.00″ | 0.09 kg/m | 0.06 lbs/ft |
| FC465-05 | 6.4mm | 0.25″ | 10.1mm | 0.40″ | 207 bar | 3000 psi | 827 bar | 12000 psi | – | – | – | – | 76.2mm | 3.00″ | 0.12 kg/m | 0.08 lbs/ft |
| FC465-06 | 7.9mm | 0.31″ | 11.6mm | 0.46″ | 172 bar | 2500 psi | 689 bar | 10000 psi | 190 bar | 2750 psi | 758 bar | 11000 psi | 101.6mm | 4.00″ | 0.15 kg/m | 0.10 lbs/ft |
| FC465-08 | 10.3mm | 0.41″ | 14.3mm | 0.56″ | 138 bar | 2000 psi | 552 bar | 8000 psi | 155 bar | 2250 psi | 621 bar | 9000 psi | 133.4mm | 5.25″ | 0.18 kg/m | 0.12 lbs/ft |
| FC465-10 | 12.7mm | 0.50″ | 16.8mm | 0.66″ | 103 bar | 1500 psi | 414 bar | 6000 psi | 138 bar | 2000 psi | 552 bar | 8000 psi | 165.1mm | 6.50″ | 0.24 kg/m | 0.16 lbs/ft |
| FC465-12 | 15.9mm | 0.63″ | 20.1mm | 0.79″ | 83 bar | 1200 psi | 331 bar | 4800 psi | 103 bar | 1500 psi | 414 bar | 6000 psi | 196.9mm | 7.75″ | 0.27 kg/m | 0.18 lbs/ft |
| FC465-16 | 22.2mm | 0.88″ | 26.9mm | 1.06″ | 69 bar | 1000 psi | 276 bar | 4000 psi | 83 bar | 1200 psi | 331 bar | 4800 psi | 228.6mm | 9.00″ | 0.39 kg/m | 0.26 lbs/ft |
**These operating pressures and min. burst pressures apply when E series fittings are used with flat crimp option.
The operating pressure of 1/2″ I.D. hoses are lowered to 1500 psi and 5/8″ I.D. hoses are lowered to 1250 psi when brass EverSwage fittings are used.
Maximum negative pressure for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative pressures
are required for -16 and larger hoses, the use of an internal support coil is recommended. Use of an internal support coil in -06 and larger hose is
recommended for tube support where extended or continuous service at high temperature together with low or negative pressure is expected.
Warning: These hoses can be used to convey hazardous chemicals, steam,
hot liquids or other dangerous materials which can cause death, serious
bodily injury including burns, pressure wounds or chemical exposure if
released accidentally. They should, therefore, only be handled or worked
on by personnel properly trained in the safe handling of the materials or
chemicals conveyed in the hoses.
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
