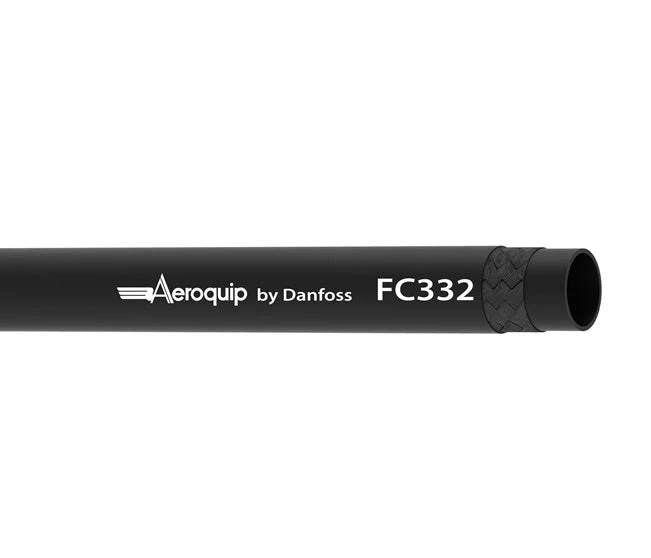

FC332-12 Aeroquip By Danfoss | AQP SOCKETLESS™ Textile Braid Hose (equal To FBV1200) | 0.75″ ID
Original price was: $15.38.$10.77Current price is: $10.77.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | For gasoline, diesel, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications and not approved for air brake applications. | SAE Rating: | N/A |
| Other Ratings: | N/A | Tube: | AQP Elastomer |
| Reinforcement: | Textile Braid | Cover: | AQP Elastomer |
| Temperature Range: | -40°F to +302°F (-40°C to +150°C) Water not to Exceed +180°F (+82°C) Air not to Exceed +250°F (+121°C) | ||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum Service | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kPa | in/Hg | kg/m | lbs/ft | |
| FC332-04 | 6 | 6,4mm | 0.25″ | 12,4mm | 0.49″ | 20,0 bar | 300 psi | 82,0 bar | 1200 psi | 76,2mm | 3.00″ | 94,8 kPa | 28 in/Hg | 0,12 kg/m | 0.08 lbs/ft |
| FC332-06 | 10 | 9,7mm | 0.38″ | 16,0mm | 0.63″ | 20,0 bar | 300 psi | 82,0 bar | 1200 psi | 76,2mm | 3.00″ | 94,8 kPa | 28 in/Hg | 0,18 kg/m | 0.12 lbs/ft |
| FC332-08 | 13 | 12,7mm | 0.50″ | 19,1mm | 0.75″ | 20,0 bar | 300 psi | 82,0 bar | 1200 psi | 127,0mm | 5.00″ | 94,8 kPa | 28 in/Hg | 0,22 kg/m | 0.15 lbs/ft |
| FC332-10 | 16 | 16,0mm | 0.63″ | 23,1mm | 0.91″ | 20,0 bar | 300 psi | 82,0 bar | 1200 psi | 152,4mm | 6.00″ | 60,9 kPa | 18 in/Hg | 0,30 kg/m | 0.20 lbs/ft |
| FC332-12 | 19 | 19,1mm | 0.75″ | 26,4mm | 1.04″ | 20,0 bar | 300 psi | 82,0 bar | 1200 psi | 177,8mm | 7.00″ | 60,9 kPa | 18 in/Hg | 0,42 kg/m | 0.28 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
| Hose Length | Bulk (may come in multiple lengths), 25' Exact Length, 50' Exact Length, 75' Exact Length, 100' Exact Length |
|---|
