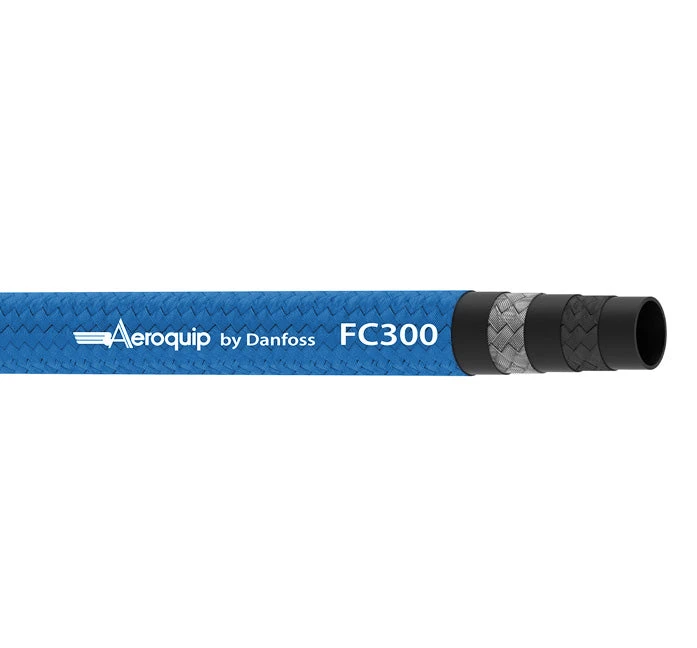

FC300-24 Aeroquip By Danfoss | High Temp Textile & Wire Braid Transportation Hose | SAE 100R5, SAE J1019, SAE J1402 | 1.38″ ID

Original price was: $37.54.Current price is: $26.28.

SKU: AG9ZZ 1476584407076 Categories: Bulk Hose & Covers, Hydraulic Hose Tags: 4411 Compatible, Aeroquip Distributor, Aeroquip Specialty & Truck Hose, All-categories, Collection-lvl1_All Hose, Collection-lvl2_Hydraulic Hose, Collection-lvl3_1-Wire Hydraulic Hose, FC300 AQP Single Wire Braid, Filter-All-Brand_Aeroquip, Filter-All-Series_FC300 Series, Filter-All-Specifications and Approvals_ABS, Filter-All-Specifications and Approvals_D.O.T. FMVSS 106, Filter-All-Specifications and Approvals_DNV, Filter-All-Specifications and Approvals_SAE 100R5, Filter-All-Specifications and Approvals_SAE J1019, Filter-All-Specifications and Approvals_SAE J1402, Filter-All-Specifications and Approvals_USCG, Filter-AllHose-Color_Blue, Filter-AllHose-CoverConstruction_Polyester Textile Braid, Filter-AllHose-ID_1.38", Filter-AllHose-TubingConstruction_AQP Elastomer, Filter-HydraulicHose-DashSize_-24, Filter-IndustrialHoseTubingJoints-OD_1.75", Hydraulic Hoses and Fittings, Hydraulic-hose, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, Single wire braid

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hose Properties:
Application:	Hydraulics handling petroleum base fluids. Air, gasoline, fuel and lubricating oils, fire resistant hydraulic fluids and other industrial fluids. Not approved for use with E85.	SAE Ratings:	Meets or exceeds: SAE 100R5, SAE J1019, SAE J1402, DOT/FMVSS 106 Type AII
Other Ratings:	N/A	Tube:	AQP Elastomer
Reinforcement:	Polyester Inner Braid, Single Wire Braid	Cover:	Blue Textile Braided
Operating Parameters:	-55°F to +302°F (-49°C to +150°C) Air not to exceed +250°F (+121°C) Use with biodiesel not to exceed +212°F (+100°C) with B2 to B20

Part Number	Hose ID		Hose OD		Max. Operating Pressure		Min. Burst Pressure		Min. Bend Radius		Vacuum Service		Weight
Part Number	mm	in	mm	in	bar	psi	bar	psi	mm	in	kPa	in Hg	kg/m	lbs/ft
FC300-04	4,8mm	0.19″	13,2mm	0.52″	210,0 bar	3000 psi	840,0 bar	12000 psi	76,2mm	3.00″	94,8 kPa	28 in Hg.	0,19 kg/m	0.13 lbs/ft
FC300-05	6,4mm	0.25″	14,7mm	0.58″	210,0 bar	3000 psi	840,0 bar	12000 psi	85,9mm	3.38″	94,8 kPa	28 in Hg.	0,24 kg/m	0.16 lbs/ft
FC300-06	7,9mm	0.31″	17,3mm	0.67″	157,0 bar	2250 psi	630,0 bar	9000 psi	101,6mm	4.00″	94,8 kPa	28 in Hg.	0,27 kg/m	0.23 lbs/ft
FC300-08	10,4mm	0.41″	19,6mm	0.76″	140,0 bar	2000 psi	560,0 bar	8000 psi	117,3mm	4.62″	94,8 kPa	28 in Hg.	0,32 kg/m	0.26 lbs/ft
FC300-10	12,7mm	0.50″	23,4mm	0.93″	122,0 bar	1750 psi	490,0 bar	7000 psi	139,7mm	5.50″	94,8 kPa	28 in Hg.	0,49 kg/m	0.37 lbs/ft
FC300-12	16,0mm	0.63″	27,4mm	1.08″	105,0 bar	1500 psi	420,0 bar	6000 psi	165,1mm	6.50″	94,8 kPa	28 in Hg.	0,58 kg/m	0.46 lbs/ft
FC300-16	22,4mm	0.88″	31,2mm	1.27″	56,0 bar	800 psi	224,0 bar	3200 psi	187,5mm	7.38″	67,7 kPa	20 in Hg.†	0,55 kg/m	0.44 lbs/ft
FC300-20† ‡	28,4mm	1.12″	38,1mm	1.50″	43,0 bar	625 psi	175,0 bar	2500 psi	228,6mm	9.00″	67,7 kPa	20 in Hg.†	0,68 kg/m	0.52 lbs/ft
FC300-24† ‡	35,1mm	1.38″	44,5mm	1.75″	35,0 bar	500 psi	140,0 bar	2000 psi	266,7mm	10.50″	50,8 kPa	15 in Hg.†	0,92 kg/m	0.67 lbs/ft
FC300-32† ‡	46,0mm	1.81″	56,4mm	2.22″	21,0 bar	300 psi	84,0 bar	1200 psi	336,6mm	13.25″	37,3 kPa	11 in Hg.†	1,28 kg/m	0.94 lbs/ft
FC300-40† ‡	60,1mm	2.38″	73,2mm	2.88″	21,0 bar	300 psi	84,0 bar	1200 psi	609,6mm	24.00″	27,1 kPa	8 in Hg.†	2,11 kg/m	1.50 lbs/ft

† Maximum negative pressure shown for -16 and larger are suitable for those which has suffered no external damage or kinking. If greater negative pressures are
required for -16 and larger hoses, the use of an internal support coil is recommended.
‡ Does not meet SAE 100R5 pressure with reusable fittings. -32 size rated to 350 psi with crimp fittings.

Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
