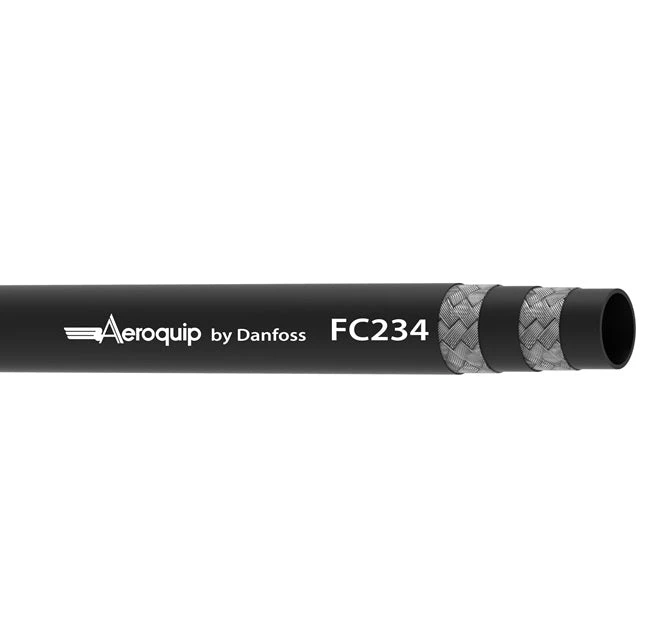

FC234-16 Aeroquip By Danfoss | High Temp Fuel & Oil Hose Braided Transportation Hose | SAE J1527 | Fire Resistant USCG/MMT, NMMA/BIA | 0.88″ ID
Original price was: $38.40.$26.88Current price is: $26.88.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Diesel fuel, gasoline Hot lube oil Water | SAE Ratings: | Meets: SAE J1527 Type A1 |
| Other Ratings: | Fire resistant USCG/MMT, NMMA/BIA | Tube: | AQP Elastomer |
| Reinforcement: | Brass Plated Steel Wire Braided Refractory Insulation | Cover: | Blue AQP Elastomer |
| Operating Parameters: | -40°F to +302°F (-40°C to +150°C) Use with biodiesel not to exceed +212°F (+100°C) with B2 to B20 | ||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Vacuum Service | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kPa | in Hg | kg/m | lbs/ft | |
| FC234-05 | 6,4mm | 0.25″ | 14,7mm | 0.58″ | 105,0 bar | 1500 psi | 420,0 bar | 6000 psi | 25,4mm | 1.00″ | 94,8 kPa | 28 in. Hg | 0,32 kg/m | 0.22 lbs/ft |
| FC234-06 | 7,9mm | 0.31″ | 17,3mm | 0.68″ | 105,0 bar | 1500 psi | 420,0 bar | 6000 psi | 31,8mm | 1.25″ | 94,8 kPa | 28 in. Hg | 0,37 kg/m | 0.25 lbs/ft |
| FC234-08 | 10,4mm | 0.41″ | 19,3mm | 0.76″ | 87,0 bar | 1250 psi | 350,0 bar | 5000 psi | 44,5mm | 1.75″ | 94,8 kPa | 28 in. Hg | 0,44 kg/m | 0.30 lbs/ft |
| FC234-10 | 12,7mm | 0.50″ | 23,9mm | 0.94″ | 87,0 bar | 1250 psi | 350,0 bar | 5000 psi | 57,2mm | 2.25″ | 94,8 kPa | 28 in. Hg | 0,66 kg/m | 0.45 lbs/ft |
| FC234-12 | 16,0mm | 0.63″ | 27,4mm | 1.08″ | 52,0 bar | 750 psi | 210,0 bar | 3000 psi | 69,9mm | 2.75″ | 67,7 kPa | 20 in. Hg | 0,71 kg/m | 0.48 lbs/ft |
| FC234-16 | 22,4mm | 0.88″ | 31,5mm | 1.24″ | 28,0 bar | 400 psi | 112,0 bar | 1600 psi | 88,9mm | 3.50″ | 54,2 kPa | 16 in. Hg | 0,75 kg/m | 0.51 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
