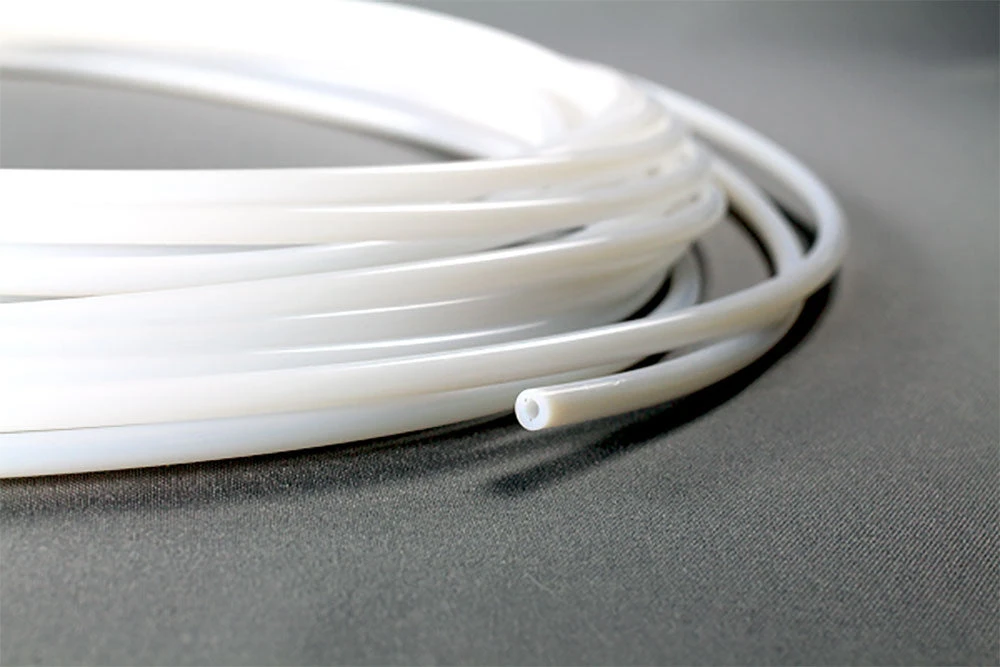

FBTFEF-0500-062-50 Versilon™ By Saint Gobain | 3/8″ ID X 1/2″ OD X .062″ Wall | PTFE-F High Temperature Flexible Tubing | 50′ Package Length
Original price was: $358.00.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Food and Beverage Dispensing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PTFE-F |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -450°F (-268°C) to 500°F (260°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | Regulation (EU) No 10/2011, Regulation (EC) No 1935/2004, FDA |
| Literature: | Versilon™ PTFE-F High Temperature Flexible Tubing (PDF) | ||
| Other Features: | |||
| |||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Min. Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI) | Length |
|---|---|---|---|---|---|---|
| FBTFEF-0125-031-50 | 1/16″ | 1/8″ | 0.031″ (1/32″) | 1/2″ | 197 PSI | 50ft |
| FBTFEF-0187-031-50 | 1/8″ | 3/16″ | 0.031″ (1/32″) | – | – | 50ft |
| FBTFEF-0250-031-50 | 3/16″ | 1/4″ | 0.031″ (1/32″) | 1″ | 92 PSI | 50ft |
| FBTFEF-0250-047-50 | 5/32″ | 1/4″ | 0.047″ (3/64″) | 3/4″ | 146 PSI | 50ft |
| FBTFEF-0250-062-50 | 1/8″ | 1/4″ | 0.062″ (1/16″) | 1/2″ | 199 PSI | 50ft |
| FBTFEF-0312-031-50 | 1/4″ | 5/16″ | 0.031″ (1/32″) | 1-3/4″ | 73 PSI | 50ft |
| FBTFEF-0312-062-50 | 3/16″ | 5/16″ | 0.062″ (1/16″) | 1-1/2″ | 156 PSI | 50ft |
| FBTFEF-0375-031-50 | 5/16″ | 3/8″ | 0.031″ (1/32″) | 2-1/2″ | 66 PSI | 50ft |
| FBTFEF-0375-062-50 | 1/4″ | 3/8″ | 0.062″ (1/16″) | 1″ | 127 PSI | 50ft |
| FBTFEF-0437-031-50 | 3/8″ | 7/16″ | 0.031″ (1/32″) | – | – | 50ft |
| FBTFEF-0500-031-50 | 7/16″ | 1/2″ | 0.031″ (1/32″) | 4″ | 52 PSI | 50ft |
| FBTFEF-0500-062-50 | 3/8″ | 1/2″ | 0.062″ (1/16″) | 2″ | 93 PSI | 50ft |
| FBTFEF-0625-062-50 | 1/2″ | 5/8″ | 0.062″ (1/16″) | 3″ | 73 PSI | 50ft |
| FBTFEF-0750-062-50 | 5/8″ | 3/4″ | 0.062″ (1/16″) | 6″ | 66 PSI | 50ft |
Note: Every attempt has been taken to provide accurate detailed
usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics.
Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses.
Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of
tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this
particular hose is not available “by the foot” through our site.
