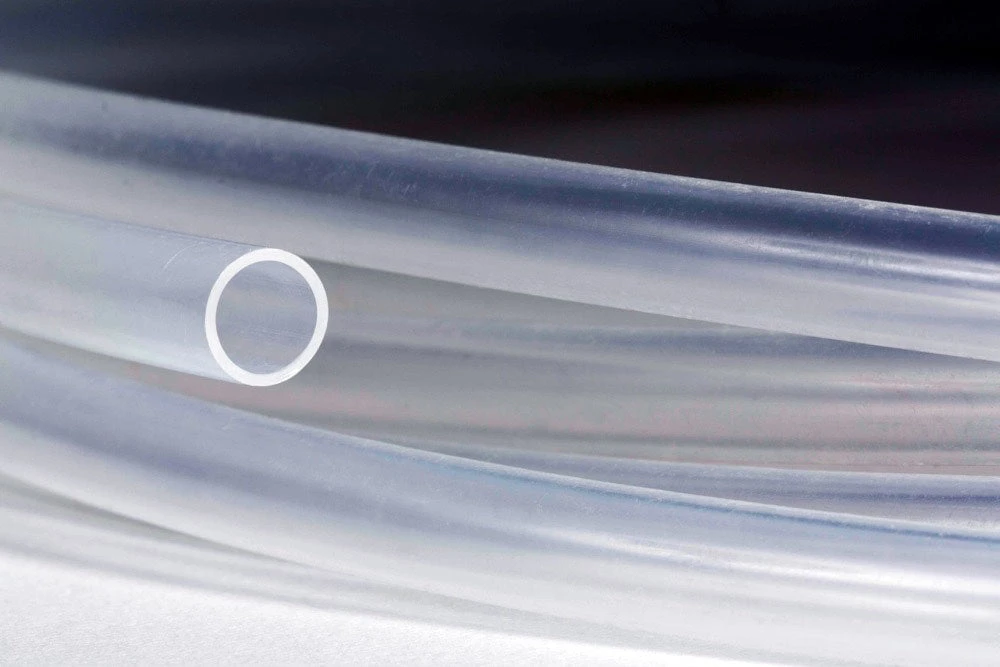

FBPFAF-0875-062-50 Versilon™ By Saint Gobain | 3/4″ ID X 7/8″ OD X .062″ Wall | PFA-F Beverage Dispensing Tubing | 50′ Package Length

Original price was: $333.00.Current price is: $97.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Food and Beverage Dispensing	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PFA-F
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-320°F (-196°C) to 500°F (260°C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	Regulation (EU) No 10/2011, Regulation (EC) No 1935/2004, FDA Regulation 21 CFR 177.1550
Literature:	Versilon™ PFA-F Beverage Dispensing Tubing (PDF)
Excellent chemical resistance. Retains higher mechanical strength at elevated temperatures compared to FEP. High resistance to stress cracking. Temperature resistant up to +260°C. WARNING: Versilon™ PFA-F Beverage Dispensing Tubing is not intended as an implant material.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Min. Bend Radius (in.)	Calculated Burst Pressure at 73 deg. F (PSI)	Calculated Working Pressure at 73 deg. F (PSI)	Length
FBPFAF-0125-031-50	1/16″	1/8″	0.031″ (1/32″)	1/2″	1228 PSI	307 PSI	50ft
FBPFAF-0187-031-50	1/8″	3/16″	0.031″ (1/32″)	1-7/64″	796 PSI	199 PSI	50ft
FBPFAF-0250-031-50	3/16″	1/4″	0.031″ (1/32″)	1″	572 PSI	143 PSI	50ft
FBPFAF-0250-047-50	5/32″	1/4″	0.047″ (3/64″)	1-21/64″	908 PSI	227 PSI	50ft
FBPFAF-0250-062-50	1/8″	1/4″	0.062″ (1/16″)	1/2″	1236 PSI	309 PSI	50ft
FBPFAF-0312-031-50	1/4″	5/16″	0.031″ (1/32″)	1-3/4″	456 PSI	114 PSI	50ft
FBPFAF-0312-062-50	3/16″	5/16″	0.062″ (1/16″)	1-1/2″	968 PSI	242 PSI	50ft
FBPFAF-0375-031-50	5/16″	3/8″	0.031″ (1/32″)	2-1/2″	400 PSI	100 PSI	50ft
FBPFAF-0375-062-50	1/4″	3/8″	0.062″ (1/16″)	1″	800 PSI	200 PSI	50ft
FBPFAF-0437-031-50	3/8″	7/16″	0.031″ (1/32″)	–	–	–	50ft
FBPFAF-0500-031-50	7/16″	1/2″	0.031″ (1/32″)	4″	292 PSI	73 PSI	50ft
FBPFAF-0500-062-50	3/8″	1/2″	0.062″ (1/16″)	3-31/32″	576 PSI	144 PSI	50ft
FBPFAF-0562-031-50	1/2″	9/16″	0.031″ (1/32″)	–	–	–	50ft
FBPFAF-0625-062-50	1/2″	5/8″	0.062″ (1/16″)	3″	452 PSI	113 PSI	50ft
FBPFAF-0750-062-50	5/8″	3/4″	0.062″ (1/16″)	8-59/64″	400 PSI	100 PSI	50ft
FBPFAF-0875-062-50	3/4″	7/8″	0.062″ (1/16″)	–	–	–	50ft
FBPFAF-1000-062-50	7/8″	1″	0.062″ (1/16″)	15-7/8″	296 PSI	74 PSI	50ft

Note: Every attempt has been taken to provide accurate detailed
usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics.
Important! It is the user’s responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses.
Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of
tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this
particular hose is not available “by the foot” through our site.
