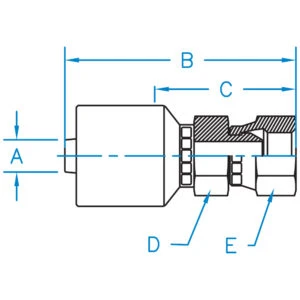

| Part Number | A | B | C | D | E | Hose ID (In) | Thread |
|---|---|---|---|---|---|---|---|
| F-BSPX-06-06-W | 0.375 | 2.330 | 1.100 | 3/4 | 7/8 | 3/8″ | 3/8-19 |
| F-BSPX-06-08-W | 0.375 | 2.645 | 1.275 | 3/4 | 1.000 | 3/8″ | 1/2-14 |
| F-BSPX-08-08-W | 0.500 | 2.660 | 1.320 | 7/8 | 1.000 | 1/2″ | 1/2-14 |
| F-BSPX-08-10-W | 0.500 | 2.943 | 1.603 | 7/8 | 1-1/8 | 1/2″ | 5/8-14 |
| F-BSPX-10-10-W | 0.625 | 3.66 | 1.56 | 1 | 1-1/8 | 5/8″ | 5/8-14 |
| F-BSPX-12-12-W | 0.750 | 3.400 | 1.610 | 1-1/8 | 1-1/4 | 3/4″ | 3/4-14 |
| F-BSPX-16-16-W | 1.000 | 3.720 | 1.610 | 1-3/8 | 1-1/2 | 1.000″ | 1-11 |
| F-BSPX-20-20-W | 1.250 | 4.393 | 1.943 | 1-3/4 | 2.000 | 1-1/4″ | 1-1/4-11 |
| F-BSPX-24-24-W | 1.500 | 4.850 | 2.250 | 2-1/4 | 2-3/8 | 1-1/2″ | 1-1/2-11 |
F-BSPX-20-20-W By Kurt Hydraulics | Female British Standard Pipe 60 Degree Cone | Swivel | For 1-1/4″ Hose ID
$55.84 Original price was: $55.84.$39.09Current price is: $39.09.
SKU: AG9ZZ 14637523861874 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: 1-1/4 Hose ID, 60 Degree Cone, Braided hose, British Standard Pipe, Created in 2024, F-BSPX-20-20-W, Female, Kurt, Matrixify3rd50kProducts, Spiral Hose, Straight, Swivel
