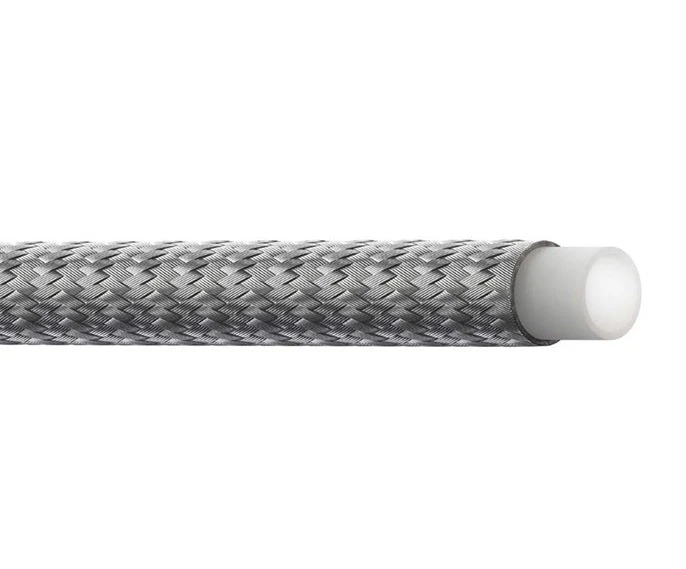

EN-14TW Everflex Winner By Danfoss | EN-TW-Series | Smooth Bore Non-Dissipating Teflon™ Hose | SAE 100R14 | 0.75″ Hose ID | 0.92″ Hose OD | Stainless Steel Braid
Original price was: $15.54.$10.88Current price is: $10.88.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Applications: | Alternative fuels, Bus, truck, and off highway, Chemical transfer, Electric cooling, Engine, Fire/rescue air, Hot press, Paint and paint spraying, Steam | SAE Ratings: | SAE 100R14 |
| Other Ratings: | N/A | Tube: | Non-Conductive Teflon™ Fluoropolymer |
| Reinforcement: | Stainless Steel Wire Braid | Cover: | One or Two Layers of Stainless Steel Wire Braid |
| Operating Parameters: | -85°F to +456°F (-54°C to +236°C) | ||
| Part Number | Hose ID | Hose OD | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum Service | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | ||
| EN-4TW | 4.8mm | 0.19″ | 7.9mm | 0.31″ | 207 bar | 3,000 psi | 828 bar | 12,000 psi | 50mm | 2.00″ | 0.09 kg/m | 0.06 lbs/ft | 28 in/Hg |
| EN-5TW | 6.4mm | 0.25″ | 9.80mm | 0.39″ | 207 bar | 3,000 psi | 828 bar | 12,000 psi | 75mm | 3.00″ | 0.12 kg/m | 0.08 lbs/ft | 28 in/Hg |
| EN-6TW | 8.0mm | 0.31″ | 11.60mm | 0.46″ | 172 bar | 2,500 psi | 688 bar | 10,000 psi | 100mm | 4.00″ | 0.15 kg/m | 0.10 lbs/ft | 28 in/Hg‡ |
| EN-7TW | 9.6mm | 0.38″ | 13.00mm | 0.51″ | 155 bar | 2,250 psi | 620 bar | 9,000 psi | 125mm | 5.0″ | 0.16 kg/m | 0.11 lbs/ft | 28 in/Hg‡ |
| EN-8TW | 10.4mm | 0.41″ | 14.20mm | 0.56″ | 138 bar | 2,000 psi | 552 bar | 8,000 psi | 135mm | 5.0″ | 0.18 kg/m | 0.12 lbs/ft | 28 in/Hg‡ |
| EN-10TW | 12.8mm | 0.50″ | 16.40mm | 0.65″ | 103 bar | 1,500 psi | 412 bar | 6,000 psi | 165.0mm | 6.5″ | 0.25 kg/m | 0.17 lbs/ft | 28 in/Hg‡ |
| EN-12TW | 16.0mm | 0.63″ | 19.80mm | 0.78″ | 86 bar | 1,250 psi | 344 bar | 5,000 psi | 200mm | 8.0″ | 0.28 kg/m | 0.19 lbs/ft | 28 in/Hg‡ |
| EN-14TW | 19.1mm | 0.75″ | 23.30mm | 0.92″ | 75 bar | 1,100 psi | 300 bar | 4,400 psi | 230mm | 9.0″ | 0.37 kg/m | 0.25 lbs/ft | 28 in/Hg‡ |
| EN-16TW | 22.2mm | 0.88″ | 26.70mm | 1.05″ | 70 bar | 1,000 psi | 280 bar | 4,000 psi | 230mm | 9.0″ | 0.40 kg/m | 0.27 lbs/ft | 12 in/Hg‡ |
| EN-18TW | 25.4mm | 1.00″ | 28.80mm | 1.17″ | 70 bar | 1,000 psi | 280 bar | 4,000 psi | 300mm | 12.0″ | 0.79 kg/m | 0.53 lbs/ft | 12 in/Hg‡ |
‡ Maximum negative pressure for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative
pressures are required for -16 and larger hoses, the use of an internal support coil is recommended. Use of an internal support coil in -06
and larger hose is recommended for tube support where extended or continuous service at high temperature together with low or negative
pressure is expected.
WARNING: These hoses can be used to convey hazardous chemicals, steam, hot liquids, or other dangerous materials which can cause death,
serious bodily injury including burns, pressure wounds, or chemical exposure if released accidentally. They should only be handled or worked on
by personnel properly trained in the safe handling of the materials or chemicals conveyed in the hoses.
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
