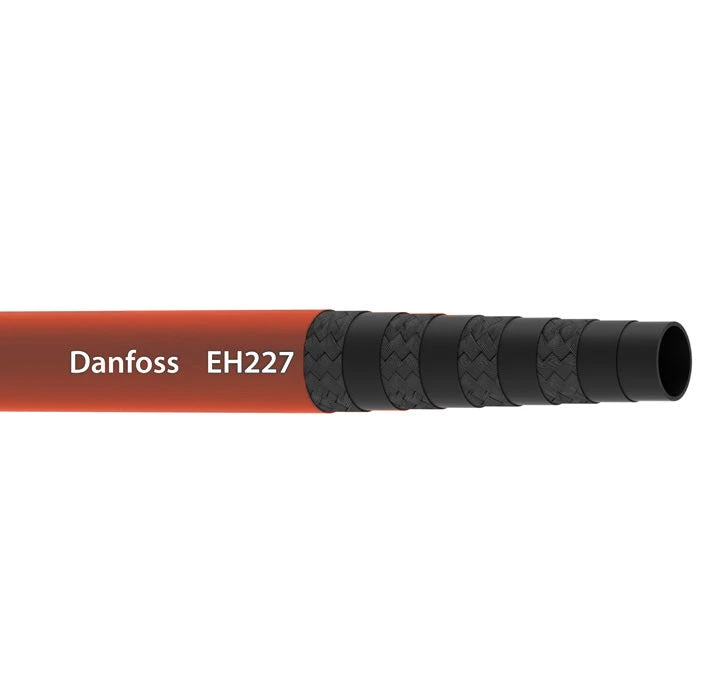

EH22704 Aeroquip By Danfoss | Truck & Engine 4-Ply Silicone Turbo Hose | 0.25″ ID | 3ft Length

Original price was: $66.72.Current price is: $46.70.

SKU: AG9ZZ 8701441769637 Categories: Bulk Hose & Covers, Specialty Hose Tags: Collection-lvl1_All Hose, Collection-lvl2_Specialty Hose, Collection-lvl3_Performance Silicone Hose, Created in 2024, Matrixify2nd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hose Properties:
Application:	High Temperature Engine.	SAE Rating:	Meets SAE J20R1, Class A
Other Ratings:	N/A	Tube:	Silicone
Reinforcement:	4-ply Woven Aramid	Cover:	Red
Temperature Range:	-65°F to +500°F (-54°C to +260°C)

Part Number	Hose ID		Hose OD		Min. Burst Pressure		Length
Part Number	mm	in	mm	in	bar	psi	ft/box
EH22704	6,40mm	0.25″	14,50mm	0.57″	32,9 bar	477 psi	3 ft/box
EH22706	9,70mm	0.38″	17,80mm	0.70″	32,9 bar	477 psi	3 ft/box
EH22708	12,70mm	0.50″	20,80mm	0.82″	29,3 bar	425 psi	3 ft/box
EH22710	16,00mm	0.63″	24,10mm	0.95″	25,9 bar	376 psi	3 ft/box
EH22712	19,10mm	0.75″	27,20mm	1.07″	22,4 bar	325 psi	3 ft/box
EH22714	22,40mm	0.88″	30,50mm	1.20″	22,4 bar	325 psi	3 ft/box
EH22716	25,40mm	1.00″	33,50mm	1.32″	20,6 bar	300 psi	3 ft/box
EH22717	26,90mm	1.06″	35,10mm	1.38″	20,6 bar	300 psi	3 ft/box
EH22718	28,70mm	1.13″	36,80mm	1.45″	19,0 bar	276 psi	3 ft/box
EH22720	31,80mm	1.25″	39,90mm	1.57″	19,0 bar	276 psi	3 ft/box
EH22721	33,30mm	1.31″	41,40mm	1.63″	19,0 bar	276 psi	3 ft/box
EH22722	35,10mm	1.38″	43,20mm	1.70″	19,0 bar	276 psi	3 ft/box
EH22724	38,10mm	1.50″	46,20mm	1.62″	17,2 bar	249 psi	3 ft/box
EH22726	41,10mm	1.62″	49,30mm	1.94″	17,2 bar	249 psi	3 ft/box
EH22728	44,40mm	1.75″	52,60mm	2.07″	15,5 bar	225 psi	3 ft/box
EH22732	50,80mm	2.00″	58,90mm	2.32″	13,8 bar	200 psi	3 ft/box
EH22734	54,10mm	2.13″	62,20mm	2.45″	12,1 bar	175 psi	3 ft/box
EH22736	57,20mm	2.25″	65,30mm	2.57″	12,1 bar	175 psi	3 ft/box
EH22738	60,50mm	2.38″	68,60mm	2.70″	12,1 bar	175 psi	3 ft/box
EH22740	63,50mm	2.50″	71,60mm	2.82″	10,3 bar	149 psi	3 ft/box
EH22742	66,50mm	2.62″	74,70mm	2.94″	8,6 bar	125 psi	3 ft/box
EH22744	69,80mm	2.75″	78,00mm	3.07″	8,6 bar	125 psi	3 ft/box
EH22746	73,20mm	2.88″	81,30mm	3.20″	6,0 bar	87 psi	3 ft/box
EH22748	76,20mm	3.00″	84,30mm	3.32″	6,0 bar	87 psi	3 ft/box
EH22750	79,50mm	3.13″	87,60mm	3.45″	5,2 bar	75 psi	3 ft/box
EH22752	82,60mm	3.25″	90,70mm	3.57″	5,2 bar	75 psi	3 ft/box
EH22756	88,90mm	3.50″	97,00mm	3.82″	5,2 bar	75 psi	3 ft/box
EH22758	92,20mm	3.63″	100,30mm	3.95″	3,8 bar	49 psi	3 ft/box
EH22764	101,60mm	4.00″	109,70mm	4.32″	3,8 bar	49 psi	3 ft/box
EH22772	114,30mm	4.50″	122,40mm	4.82″	3,8 bar	49 psi	3 ft/box
EH22780	127,00mm	5.00″	135,10mm	5.32″	3,8 bar	49 psi	3 ft/box

Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an “Exact Length” option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
