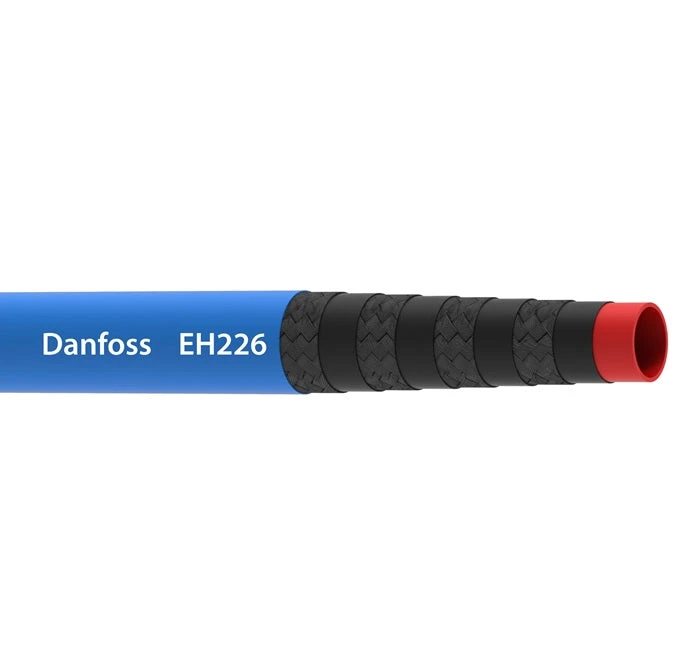

EH22688 Aeroquip By Danfoss | Truck & Engine Coolant Hose | SAE J20 R1 Class A | 5.50″ ID | 3ft Length

Original price was: $392.31.Current price is: $99.99.

SKU: AG9ZZ 8701441605797 Categories: Bulk Hose & Covers, Specialty Hose Tags: Collection-lvl1_All Hose, Collection-lvl2_Specialty Hose, Collection-lvl3_Performance Silicone Hose, Created in 2024, Matrixify2nd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hose Properties:
Application:	Coolant Engine.	SAE Rating:	Meets: SAE J20 R1 Class A
Other Ratings:	N/A	Tube:	Silicone
Reinforcement:	4-ply Woven Polyester	Cover:	Blue
Temperature Range:	-65°F to +350°F (-54°C to +177°C)

Part Number	Hose ID		Hose OD		Min. Burst Pressure		Length
Part Number	mm	in	mm	in	bar	psi	ft/box
EH22606	8,70mm	0.38″	19,10mm	0.75″	73,10 bar	1060 Psi	3 ft/box
EH22608	12,70mm	0.50″	22,10mm	0.87″	60,10 bar	872 Psi	3 ft/box
EH22610	15,70mm	0.62″	25,10mm	0.99″	55,00 bar	797 Psi	3 ft/box
EH22612	19,10mm	0.75″	28,40mm	1.12″	52,70 bar	764 Psi	3 ft/box
EH22614	22,40mm	0.88″	31,80mm	1.25″	50,50 bar	732 Psi	3 ft/box
EH22616	25,40mm	1.00″	34,80mm	1.37″	48,20 bar	699 Psi	3 ft/box
EH22617	26,90mm	1.06″	36,60mm	1.44″	46,70 bar	678 Psi	3 ft/box
EH22618	28,70mm	1.13″	38,10mm	1.50″	45,40 bar	658 Psi	3 ft/box
EH22620	31,80mm	1.25″	41,10mm	1.62″	42,50 bar	617 Psi	3 ft/box
EH22622	35,10mm	1.38″	44,40mm	1.75″	37,90 bar	550 Psi	3 ft/box
EH22624	38,10mm	1.50″	47,50mm	1.87″	35,90 bar	521 Psi	3 ft/box
EH22626	41,10mm	1.62″	50,50mm	1.99″	34,50 bar	501 Psi	3 ft/box
EH22628	44,40mm	1.75″	53,80mm	2.12″	32,60 bar	473 Psi	3 ft/box
EH22630	47,80mm	1.88″	57,20mm	2.25″	31,00 bar	450 Psi	3 ft/box
EH22632	50,80mm	2.00″	60,20mm	2.37″	30,50 bar	442 Psi	3 ft/box
EH22634	54,10mm	2.13″	63,50mm	2.50″	29,30 bar	425 Psi	3 ft/box
EH22636	57,20mm	2.25″	66,50mm	2.62″	28,50 bar	413 Psi	3 ft/box
EH22638	60,50mm	2.38″	69,90mm	2.75″	27,60 bar	400 Psi	3 ft/box
EH22640	63,50mm	2.50″	72,90mm	2.87″	26,10 bar	379 Psi	3 ft/box
EH22642	66,50mm	2.62″	75,90mm	2.99″	24,20 bar	351 Psi	3 ft/box
EH22644	69,80mm	2.75″	79,20mm	3.12″	23,30 bar	338 Psi	3 ft/box
EH22646	73,20mm	2.88″	82,60mm	3.25″	22,10 bar	321 Psi	3 ft/box
EH22648	76,20mm	3.00″	85,60mm	3.37″	21,90 bar	317 Psi	3 ft/box
EH22650	79,50mm	3.13″	88,90mm	3.50″	21,20 bar	308 Psi	3 ft/box
EH22652	82,60mm	3.25″	91,90mm	3.62″	20,50 bar	298 Psi	3 ft/box
EH22654	85,90mm	3.38″	95,20mm	3.75″	19,00 bar	275 Psi	3 ft/box
EH22656	86,90mm	3.50″	98,30mm	3.87″	18,20 bar	264 Psi	3 ft/box
EH22660	95,20mm	3.75″	104,60mm	4.12″	17,20 bar	249 Psi	3 ft/box
EH22664	101,60mm	4.00″	111,00mm	4.37″	16,10 bar	233 Psi	3 ft/box
EH22666	104,90mm	4.13″	114,60mm	4.51″	N/A	N/A	3 ft/box
EH22668	108,00mm	4.25″	117,90mm	4.84″	N/A	N/A	3 ft/box
EH22672	114,30mm	4.50″	123,70mm	4.87″	N/A	N/A	3 ft/box
EH22680	127,00mm	5.00″	136,40mm	5.37″	N/A	N/A	3 ft/box
EH22688	139,70mm	5.50″	149,10mm	5.87″	N/A	N/A	3 ft/box
EH22696	152,40mm	6.00″	161,80mm	6.37″	N/A	N/A	3 ft/box

Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
