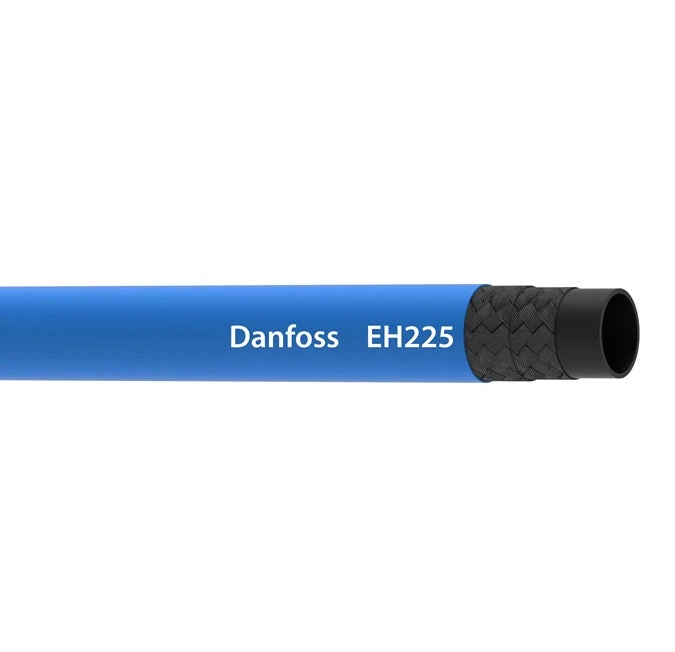

EH22510 Aeroquip By Danfoss | Truck & Engine Heater Hose | SAE J20 R3 Class A | 0.63″ ID | Box Of 25ft
Original price was: $221.75.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | Heater Engine. | SAE Rating: | Meets: SAE J20 R3 Class A |
| Other Ratings: | N/A | Tube: | Silicone |
| Reinforcement: | Single Ply Polyester Braid | Cover: | Blue Silicone |
| Temperature Range: | -65°F to +350°F (-54°C to +177°C) | ||
| Part Number | Hose ID | Hose OD | Min. Burst Pressure | Length | ||||
|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | ft/box | ||
| EH22504 | 6,40mm | 0.25″ | 11,70mm | 0.46″ | 28,0 bar | 400 Psi | 25 ft/box | |
| EH22505 | 7,90mm | 0.31″ | 13,20mm | 0.52″ | 21,0 bar | 300 Psi | 25 ft/box | |
| EH22506 | 9,70mm | 0.38″ | 16,30mm | 0.64″ | 17,0 bar | 250 Psi | 25 ft/box | |
| EH22508 | 12,70mm | 0.50″ | 19,30mm | 0.76″ | 17,0 bar | 250 Psi | 25 ft/box | |
| EH22510 | 16,00mm | 0.63″ | 23,60mm | 0.93″ | 17,0 bar | 250 Psi | 25 ft/box | |
| EH22512 | 19,10mm | 0.75″ | 27,20mm | 1.07″ | 14,0 bar | 200 Psi | 25 ft/box | |
| EH22514 | 22,40mm | 0.88″ | 31,50mm | 1.24″ | 14,0 bar | 200 Psi | 25 ft/box | |
| EH22516 | 25,40mm | 1.00″ | 35,10mm | 1.38″ | 12,0 bar | 175 Psi | 25 ft/box | |
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
