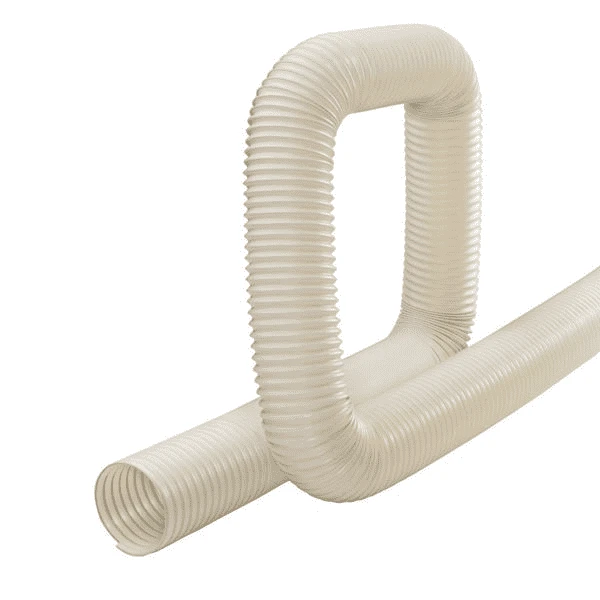

EDW-400X20 By Kuriyama | Tiger-Duct® Extendo-Duct® Air Ducting Hose | White | ID: 4″ | OD: 4.17″ | 20ft Length

Original price was: $116.53.Current price is: $81.57.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Air Vent Lines, Dust Collection, Fume Removal Room Air Exhaust, RV Plumbing, Spot Cooling, Ducting Vapor Recovery	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	N/A
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 175 deg. F (80 deg. C).	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Highly flexible-Eliminates the need for elbow fittings. Non-kinking – Permits full airflow, even with 90 deg. bends. Self-supporting – Unique wire-reinforced polypropylene construction allows hose to maintain its shape and support itself once it is positioned. Note: Applications requiring larger IDs and longer lengths may require additional fixed supports to ensure intended performance. Highly extendible and contractible – Hose extends easily and can be contracted to approximately one-third of its full extended working length for storage, shipping, or where the full length is not required . . . requires less storage space, reduces transportation costs. Note: The true ID dimension of the hose can only be measured while the hose is fully extended. The true ID becomes smaller while the hose is in the contracted state. Simple interlock connection – Joining two pieces of Extendo-Duct is easy! Just twist the end of one hose into the end of another. No fittings, menders or couplings needed! Light weight – a twenty-foot length of 12″ diameter Extendo-Ductweighs approximately 18 Ibs. Makes difficult installations easier, reduces installation costs. Chemically-resistant, with no off-gassing – Inert polypropylene material produces no off-gassing and is resistant to a wide variety of chemical fumes, making Extendo-Duct ideal for clean room and chemical fume exhaust applications Wide range of working temperatures – Extendo – Duct is suitable for use in temperatures ranging from -4 deg. F (-20 deg. C) to 175 deg. F(80 deg. C).

Part Number	Nominal ID		Nominal OD		Wire Dia.	Working Pressure (PSI)		Vacuum Rating (in. Hg.)		Minimum Bending Radius	Approx Weight Hose Only	Length Hose only	Cuffs
	(in.)	(mm.)	(in.)	(mm.)	(mm.)	68 deg. F.	104 deg. F.	68 deg. F.	104 deg. F.	(in.@68 deg. F)	(lbs/ft)	(in.)	Brown	White
EDW-150X20	1-1/2″	37.5mm	1.63″	41.5mm	1.0mm	20 PSI	7 PSI	22 in Hg.	14 in Hg.	1.2″	0.10 lbs.	85″	CMCB-150	CMCW-150
EDW-200X20	2″	53.5mm	2.26″	57.5mm	1.0mm	13 PSI	6 PSI	21 in Hg.	12 in Hg.	1.6″	0.12 lbs	82″	CMCB-200	CMCW-200
EDW-250X20	2-1/2″	67.0mm	2.80″	71.0mm	1.0mm	10 PSI	5 PSI	19 in Hg.	10 in Hg.	2.0″	0.16 lbs.	72″	CMCB-250	CMCW-250
EDW-300X20	3″	76.5mm	3.17″	80.5mm	1.0mm	10 PSI	5 PSI	18 in Hg.	10 in Hg.	2.3″	0.18 lbs.	72″	CMCB-300	CMCW-300
EDW-400X20	4″	102.0mm	4.17″	106.0mm	1.2mm	8 PSI	4 PSI	13 in Hg.	7 in Hg.	3.0″	0.23 lbs.	70″	CMCB-400	CMCW-400
EDW-500X20	5″	127.5mm	5.18″	131.5mm	1.2mm	7 PSI	3 PSI	10 in Hg.	6 in Hg.	4.3″	0.27 lbs.	70″	CMCB-500	CMCW-500
EDW-600X20	6″	155.0mm	6.26″	159.0mm	1.2mm	6 PSI	3 PSI	7 in Hg.	5 in Hg.	5.1″	0.33 lbs.	70″	CMCB-600	CMCW-600
EDW-800X20	8″	202.0mm	8.19″	208.0mm	1.8mm	4 PSI	2 PSI	5 in Hg.	3 in Hg.	7.0″	0.68 lbs.	70″	CMCB-800	CMCW-800
EDW-1000X20	10″	253.0mm	10.22″	259.5mm	1.8mm	3 PSI	1 PSI	4 in Hg.	2 in Hg.	9.0″	0.83 lbs.	70″	CMCB-1000	CMCW-1000
EDW-1200X20	12″	302.0mm	12.13″	308.0mm	1.8mm	2 PSI	1 PSI	3 in Hg.	1 in Hg.	11.0″	0.91 lbs.	70″	CMCB-1200	CMCW-1200
