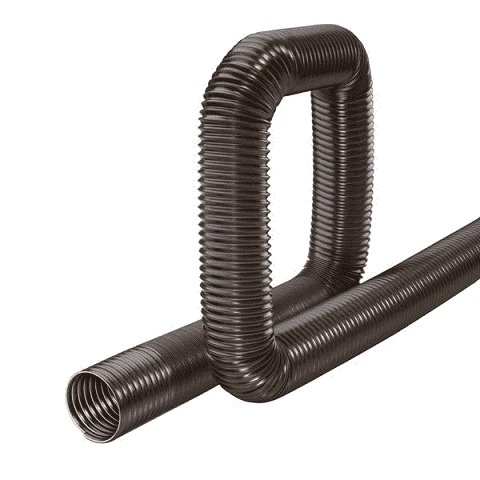

EDB-150X20 By Kuriyama | Tiger-Duct® Extendo-Duct® Air Ducting Hose | Brown | ID: 1-1/2" | OD: 1.63" | 20ft Length

EDB-150X20 By Kuriyama | Tiger-Duct® Extendo-Duct® Air Ducting Hose | Brown | ID: 1-1/2″ | OD: 1.63″ | 20ft Length

Original price was: $67.20.Current price is: $47.04.

SKU: AG9ZZ 1486951022628 Categories: , Tags: , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: Air Vent Lines, Dust Collection, Fume Removal Room Air Exhaust, RV Plumbing, Spot Cooling, Ducting Vapor Recovery SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 175 deg. F (80 deg. C). Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Highly flexible-Eliminates the need for elbow fittings.
  • Non-kinking – Permits full airflow, even with 90 deg. bends.
  • Self-supporting – Unique wire-reinforced polypropylene construction allows hose to maintain its shape and support itself once it is positioned. Note: Applications requiring larger IDs and longer lengths may require additional fixed supports to ensure intended performance.
  • Highly extendible and contractible – Hose extends easily and can be contracted to approximately one-third of its full extended working length for storage, shipping, or where the full length is not required . . . requires less storage space, reduces transportation costs. Note: The true ID dimension of the hose can only be measured while the hose is fully extended. The true ID becomes smaller while the hose is in the contracted state.
  • Simple interlock connection – Joining two pieces of Extendo-Duct is easy! Just twist the end of one hose into the end of another. No fittings, menders or couplings needed!
  • Light weight – a twenty-foot length of 12″ diameter Extendo-Ductweighs approximately 18 Ibs. Makes difficult installations easier, reduces installation costs.
  • Chemically-resistant, with no off-gassing – Inert polypropylene material produces no off-gassing and is resistant to a wide variety of chemical fumes, making Extendo-Duct ideal for clean room and chemical fume exhaust applications
  • Wide range of working temperatures – Extendo – Duct is suitable for use in temperatures ranging from -4 deg. F (-20 deg. C) to 175 deg. F(80 deg. C).
Part Number Nominal ID Nominal OD Wire Dia. Working Pressure (PSI) Vacuum Rating (in. Hg.) Minimum Bending Radius Approx Weight Hose Only Length Hose only Cuffs
(in.) (mm.) (in.) (mm.) (mm.) 68 deg. F. 104 deg. F. 68 deg. F. 104 deg. F. (in.@68 deg. F) (lbs/ft) (in.) Brown White
EDB-150X20 1-1/2″ 37.5mm 1.63″ 41.5mm 1.0mm 20 PSI 7 PSI 22 in Hg. 14 in Hg. 1.2″ 0.10 lbs. 85″ CMCB-150 CMCW-150
EDB-200X20 2″ 53.5mm 2.26″ 57.5mm 1.0mm 13 PSI 6 PSI 21 in Hg. 12 in Hg. 1.6″ 0.12 lbs 82″ CMCB-200 CMCW-200
EDB-250X20 2-1/2″ 67.0mm 2.80″ 71.0mm 1.0mm 10 PSI 5 PSI 19 in Hg. 10 in Hg. 2.0″ 0.16 lbs. 72″ CMCB-250 CMCW-250
EDB-300X20 3″ 76.5mm 3.17″ 80.5mm 1.0mm 10 PSI 5 PSI 18 in Hg. 10 in Hg. 2.3″ 0.18 lbs. 72″ CMCB-300 CMCW-300
EDB-400X20 4″ 102.0mm 4.17″ 106.0mm 1.2mm 8 PSI 4 PSI 13 in Hg. 7 in Hg. 3.0″ 0.23 lbs. 70″ CMCB-400 CMCW-400
EDB-500X20 5″ 127.5mm 5.18″ 131.5mm 1.2mm 7 PSI 3 PSI 10 in Hg. 6 in Hg. 4.3″ 0.27 lbs. 70″ CMCB-500 CMCW-500
EDB-600X20 6″ 155.0mm 6.26″ 159.0mm 1.2mm 6 PSI 3 PSI 7 in Hg. 5 in Hg. 5.1″ 0.33 lbs. 70″ CMCB-600 CMCW-600
EDB-800X20 8″ 202.0mm 8.19″ 208.0mm 1.8mm 4 PSI 2 PSI 5 in Hg. 3 in Hg. 7.0″ 0.68 lbs. 70″ CMCB-800 CMCW-800
EDB-1000X20 10″ 253.0mm 10.22″ 259.5mm 1.8mm 3 PSI 1 PSI 4 in Hg. 2 in Hg. 9.0″ 0.83 lbs. 70″ CMCB-1000 CMCW-1000
EDB-1200X20 12″ 302.0mm 12.13″ 308.0mm 1.8mm 2 PSI 1 PSI 3 in Hg. 1 in Hg. 11.0″ 0.91 lbs. 70″ CMCB-1200 CMCW-1200

Note: When cutting this hose, care should be taken to fully extend the length to prevent shortages.
