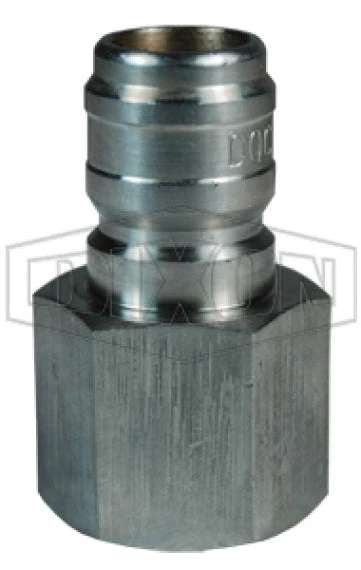

E2F2-S By Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/4" Female NPTF X 1/4" Straight-Through Interchange | Plug | 303 Stainless Steel
E2F2-S By Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/4" Female NPTF X 1/4" Straight-Through Interchange | Plug | 303 Stainless Steel - Image 2
E2F2-S By Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/4" Female NPTF X 1/4" Straight-Through Interchange | Plug | 303 Stainless Steel -Hose Ware House e f 20nipple 203d 20half color lg watermarked c2f7b23f d4f2 481b b250 b2ec28d81f3c

E2F2-S By Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/4″ Female NPTF X 1/4″ Straight-Through Interchange | Plug | 303 Stainless Steel

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 1482407149604 Categories: , Tags: , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Compatibility & Interchange:
  • Straight-through pressure-wash interchange
  • Parker ST-Series, Foster FST-Series, Hansen ST-Series
Features:
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop.
Construction:
  • Machined components are manufactured using solid steel, brass, or 303 stainless steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • 1-1/4″ to 2″ brass couplers have steel sleeves as standard to maximize service life, hardened to resist deformation.
  • Steel plugs are hardened to provide heavy-duty performance.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40Ā°F to 250Ā°F (-40Ā°C to 121Ā°C).
Safety Notes:
  • Do Not Disconnect with pressure in line.
  • Dixon cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
Additional Information:
  • For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF
E-Series | Straight-Through Interchange (Connected) Rated Pressure Chart
Body
Size		 Brass Coupler/Steel Plug Brass Coupler/Plug 303 Stainless Steel
Coupler/Plug		 Locking Ball
Quantity		 Flow
Ī”P = 30 PSI
Max. Working Burst Max. Working Burst Max. Working Burst
1/8″ 2,600 PSI
(179 Bar)		 10,400 PSI
(717 Bar)		 2,500 PSI
(172 Bar)		 10,000 PSI
(689 Bar)		 4,200 PSI
(290 Bar)		 16,800 PSI
(1,158 Bar)		 6 3 GPM
1/4″ 5,500 PSI
(379 Bar)		 22,000 PSI
(1,517 Bar)		 5,200 PSI
(359 Bar)		 20,800 PSI
(1,434 Bar)		 6,700 PSI
(462 Bar)		 26,800 PSI
(1,848 Bar)		 6 6 GPM
3/8″ 3,500 PSI
(241 Bar)		 14,000 PSI
(966 Bar)		 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 5,500 PSI
(379 Bar)		 22,000 PSI
(1,517 Bar)		 8 14 GPM
1/2″ 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 2,200 PSI
(152 Bar)		 8,800 PSI
(607 Bar)		 3,000 PSI
(207 Bar)		 12,000 PSI
(827 Bar)		 8 24 GPM
3/4″ 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 3,000 PSI
(207 Bar)		 12,000 PSI
(827 Bar)		 8 58 GPM
1″ 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,200 PSI
(83 Bar)		 4,800 PSI
(331 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 8 100 GPM
1-1/4″ 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 150 GPM
1-1/2″ 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,400 PSI
(97 Bar)		 5,600 PSI
(386 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 250 GPM
2″ 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,400 PSI
(97 Bar)		 5,600 PSI
(386 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 350 GPM
E-Series | Straight-Through Interchange Plug (Female Threads)
E2F2-S By Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/4" Female NPTF X 1/4" Straight-Through Interchange | Plug | 303 Stainless Steel -Hose Ware House Dixon Quick Disconnect E Series Straight Through Interchange Plug Fem NPTF BSPP
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
E1F1 Plug/Male 1/8″ 1/8″ – 27 Female NPTF Steel 0.98″
(24.9mm)		 0.65″
(16.5mm)		 9/16″
E1F1-B Plug/Male 1/8″ 1/8″ – 27 Female NPTF Brass 0.98″
(24.9mm)		 0.65″
(16.5mm)		 9/16″
E1F1-S Plug/Male 1/8″ 1/8″ – 27 Female NPTF 303 Stainless 0.98″
(24.9mm)		 0.65″
(16.5mm)		 9/16″
E2F2 Plug/Male 1/4″ 1/4″ – 18 Female NPTF Steel 1.47″
(37.3mm)		 0.79″
(20.1mm)		 11/16″
E2F2-B Plug/Male 1/4″ 1/4″ – 18 Female NPTF Brass 1.47″
(37.3mm)		 0.79″
(20.1mm)		 11/16″
E2F2-S Plug/Male 1/4″ 1/4″ – 18 Female NPTF 303 Stainless 1.47″
(37.3mm)		 0.79″
(20.1mm)		 11/16″
E2BF2-B Plug/Male 1/4″ 1/4″ – 19 Female BSPP Brass 1.47″
(37.3mm)		 0.79″
(20.1mm)		 11/16″
E3F3 Plug/Male 3/8″ 3/8″ – 18 Female NPTF Steel 1.60″
(40.6mm)		 1.01″
(25.7mm)		 7/8″
E3F3-B Plug/Male 3/8″ 3/8″ – 18 Female NPTF Brass 1.60″
(40.6mm)		 1.01″
(25.7mm)		 7/8″
E3F3-S Plug/Male 3/8″ 3/8″ – 18 Female NPTF 303 Stainless 1.60″
(40.6mm)		 1.01″
(25.7mm)		 7/8″
E3BF3-B Plug/Male 3/8″ 3/8″ – 19 Female BSPP Brass 1.60″
(40.6mm)		 1.01″
(25.7mm)		 7/8″
E4F4 Plug/Male 1/2″ 1/2″ – 14 Female NPTF Steel 1.82″
(46.2mm)		 1.16″
(29.5mm)		 1″
E4F4-B Plug/Male 1/2″ 1/2″ – 14 Female NPTF Brass 1.82″
(46.2mm)		 1.16″
(29.5mm)		 1″
E4F4-S Plug/Male 1/2″ 1/2″ – 14 Female NPTF 303 Stainless 1.82″
(46.2mm)		 1.16″
(29.5mm)		 1″
E4BF4-B Plug/Male 1/2″ 1/2″ – 14 Female BSPP Brass 1.82″
(46.2mm)		 1.16″
(29.5mm)		 1″
E6F6 Plug/Male 3/4″ 3/4″ – 14 Female NPTF Steel 2.05″
(52.1mm)		 1.37″
(34.8mm)		 1-3/16″
E6F6-B Plug/Male 3/4″ 3/4″ – 14 Female NPTF Brass 2.05″
(52.1mm)		 1.37″
(34.8mm)		 1-3/16″
E6F6-S Plug/Male 3/4″ 3/4″ – 14 Female NPTF 303 Stainless 2.05″
(52.1mm)		 1.37″
(34.8mm)		 1-3/16″
E6BF6-B Plug/Male 3/4″ 3/4″ – 14 Female BSPP Brass 2.05″
(52.1mm)		 1.37″
(34.8mm)		 1-3/16″
E8F8 Plug/Male 1″ 1″ – 11-1/2 Female NPTF Steel 2.36″
(59.9mm)		 1.73″
(43.9mm)		 1-1/2″
E8F8-B Plug/Male 1″ 1″ – 11-1/2 Female NPTF Brass 2.36″
(59.9mm)		 1.73″
(43.9mm)		 1-1/2″
E8F8-S Plug/Male 1″ 1″ – 11-1/2 Female NPTF 303 Stainless 2.36″
(59.9mm)		 1.73″
(43.9mm)		 1-1/2″
E8BF8-B Plug/Male 1″ 1″ – 11 Female BSPP Brass 2.36″
(59.9mm)		 1.73″
(43.9mm)		 1-1/2″
E10F10 Plug/Male 1-1/4″ 1-1/4″ – 11-1/2 Female NPTF Steel 2.47″
(62.7mm)		 2.31″
(58.7mm)		 2″
E10F10-B Plug/Male 1-1/4″ 1-1/4″ – 11-1/2 Female NPTF Brass 2.47″
(62.7mm)		 2.31″
(58.7mm)		 2″
E10F10-S Plug/Male 1-1/4″ 1-1/4″ – 11-1/2 Female NPTF 303 Stainless 2.47″
(62.7mm)		 2.31″
(58.7mm)		 2″
E12F12 Plug/Male 1-1/2″ 1-1/2″ – 11-1/2 Female NPTF Steel 2.74″
(69.6mm)		 2.60″
(66.0mm)		 2-1/4″
E12F12-B Plug/Male 1-1/2″ 1-1/2″ – 11-1/2 Female NPTF Brass 2.74″
(69.6mm)		 2.60″
(66.0mm)		 2-1/4″
E12F12-S Plug/Male 1-1/2″ 1-1/2″ – 11-1/2 Female NPTF 303 Stainless 2.74″
(69.6mm)		 2.60″
(66.0mm)		 2-1/4″
E16F16 Plug/Male 2″ 2″ – 11-1/2 Female NPTF Steel 3.00″
(76.2mm)		 3.03″
(77.0mm)		 2-5/8″
E16F16-B Plug/Male 2″ 2″ – 11-1/2 Female NPTF Brass 3.00″
(76.2mm)		 3.03″
(77.0mm)		 2-5/8″
E16F16-S Plug/Male 2″ 2″ – 11-1/2 Female NPTF 303 Stainless 3.00″
(76.2mm)		 3.03″
(77.0mm)		 2-5/8″
E-Series | Straight-Through Interchange Coupler (Female Threads)
E2F2-S By Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/4" Female NPTF X 1/4" Straight-Through Interchange | Plug | 303 Stainless Steel -Hose Ware House Dixon Quick Disconnect E Series Straight Through Interchange Coupler Socket Fem NPTF BSPP
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
1EF1-B Socket/Female 1/8″ 1/8″ – 27 Female NPTF Brass 1.01″
(25.7mm)		 0.65″
(16.5mm)		 9/16″
1EF1-S Socket/Female 1/8″ 1/8″ – 27 Female NPTF 303 Stainless 1.01″
(25.7mm)		 0.65″
(16.5mm)		 9/16″
2EF2-B Socket/Female 1/4″ 1/4″ – 18 Female NPTF Brass 1.40″
(35.6mm)		 0.96″
(24.4mm)		 13/16″
2EF2-S Socket/Female 1/4″ 1/4″ – 18 Female NPTF 303 Stainless 1.40″
(35.6mm)		 0.96″
(24.4mm)		 13/16″
2EBF2-B Socket/Female 1/4″ 1/4″ – 19 Female BSPP Brass 1.40″
(35.6mm)		 0.96″
(24.4mm)		 13/16″
3EF3-B Socket/Female 3/8″ 3/8″ – 18 Female NPTF Brass 1.60″
(40.6mm)		 1.13″
(28.7mm)		 1″
3EF3-S Socket/Female 3/8″ 3/8″ – 18 Female NPTF 303 Stainless 1.60″
(40.6mm)		 1.13″
(28.7mm)		 1″
3EBF3-B Socket/Female 3/8″ 3/8″ – 19 Female BSPP Brass 1.60″
(40.6mm)		 1.13″
(28.7mm)		 1″
4EF4-B Socket/Female 1/2″ 1/2″ – 14 Female NPTF Brass 1.96″
(49.8mm)		 1.27″
(32.3mm)		 1-1/8″
4EF4-S Socket/Female 1/2″ 1/2″ – 14 Female NPTF 303 Stainless 1.96″
(49.8mm)		 1.27″
(32.3mm)		 1-1/8″
4EBF4-B Socket/Female 1/2″ 1/2″ – 14 Female BSPP Brass 1.96″
(49.8mm)		 1.27″
(32.3mm)		 1-1/8″
6EF6-B Socket/Female 3/4″ 3/4″ – 14 Female NPTF Brass 2.10″
(53.3mm)		 1.65″
(41.9mm)		 1-1/2″
6EF6-S Socket/Female 3/4″ 3/4″ – 14 Female NPTF 303 Stainless 2.10″
(53.3mm)		 1.65″
(41.9mm)		 1-1/2″
6EBF6-B Socket/Female 3/4″ 3/4″ – 14 Female BSPP Brass 2.10″
(53.3mm)		 1.65″
(41.9mm)		 1-1/2″
8EF8-B Socket/Female 1″ 1″ – 11-1/2 Female NPTF Brass 2.36″
(59.9mm)		 2.02″
(51.3mm)		 1-3/4″
8EF8-S Socket/Female 1″ 1″ – 11-1/2 Female NPTF 303 Stainless 2.36″
(59.9mm)		 2.02″
(51.3mm)		 1-3/4″
8EBF8-B Socket/Female 1″ 1″ – 11 Female BSPP Brass 2.36″
(59.9mm)		 2.02″
(51.3mm)		 1-3/4″
10EF10-B Socket/Female 1-1/4″ 1-1/4″ – 11-1/2 Female NPTF Brass 2.36″
(59.9mm)		 2.59″
(65.8mm)		 2-1/4″
10EF10-S Socket/Female 1-1/4″ 1-1/4″ – 11-1/2 Female NPTF 303 Stainless 2.36″
(59.9mm)		 2.59″
(65.8mm)		 2-1/4″
12EF12-B Socket/Female 1-1/2″ 1-1/2″ – 11-1/2 Female NPTF Brass 2.89″
(73.4mm)		 3.18″
(80.8mm)		 2-3/4″
12EF12-S Socket/Female 1-1/2″ 1-1/2″ – 11-1/2 Female NPTF 303 Stainless 2.89″
(73.4mm)		 3.18″
(80.8mm)		 2-3/4″
16EF16-B Socket/Female 2″ 2″ – 11-1/2 Female NPTF Brass 3.00″
(76.2mm)		 4.04″
(102.6mm)		 3-1/2″
16EF16-S Socket/Female 2″ 2″ – 11-1/2 Female NPTF 303 Stainless 3.00″
(76.2mm)		 4.04″
(102.6mm)		 3-1/2″
