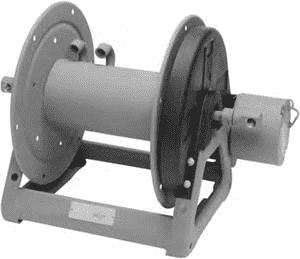

E2030-17-18 By Hannay | #39-30 | 2000 Series | Electric Powered Rewind Reel | 12 Volt DC

Original price was: $373.00.Current price is: $99.99.

SKU: AG9ZZ 1476862181412 Categories: Hose Equipment, Tools & Equipment Tags: All-categories, Collection-lvl1_All Equipment, Collection-lvl2_Hose Equipment, Collection-lvl3_Hose Reels, Electric Powered, Hannay Hose Reels, Hose-equipment, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Reels for Hose, Series 2000 - Manual or Power Rewind Reels

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Hydraulics Air/Water Spray Painting
Features:
Two swivel joint inlets and two outlet risers to handle two equal lengths of hose. Chain and sprocket rewind powered by an electric motor. Power rewind reels are not supplied with a brake. Standard inlets 90 deg. ball bearing swivel joints 1/2″ female NPT threads. Standard outlets 1/2″ female NPT threads. Pressures to 3000 psi (207 bar). Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C). NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint. Reels for use with oxygen/acetylene.

Model Number	Hose Capacity of Reel (Ft.)				Approx. Weight (Lbs.)	Reel Dimensions (In.)
	I.D. (in)	1/4″	3/8″	1/2″
	O.D. (in)	5/8″	3/4″	7/8″		A	B	E Crank	E Power	F Crank	F Power	X
E-2016-17-18		(two) 100′ lengths	(two) 75′ lengths	(two) 50′ lengths	50 lbs.	13″	8″	18.5″	19″	21″	20″	11.5″
E-2020-17-18		(two) 175′ lengths	(two) 125′ lengths	(two) 75′ lengths	52 lbs.	17″	12″	18.5″	19″	25″	24″	15.5″
E-2026-17-18		(two) 275′ lengths	(two) 200′ lengths	(two) 125′ lengths	54 lbs.	23″	18″	18.5″	19″	31″	30″	21.5″
E-2030-17-18		(two) 350′ lengths	(two) 250′ lengths	(two) 175′ lengths	55 lbs.	27″	22″	18.5″	19″	35″	34″	25.5″
E-2036-17-18		(two) 425′ lengths	(two) 300′ lengths	(two) 225′ lengths	57 lbs.	33″	28″	18.5″	19″	41″	40″	31.5″
