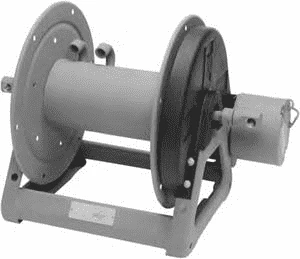

E2020-17-18 By Hannay | #39-20 | 2000 Series | Electric Powered Rewind Reel | 12 Volt DC

Original price was: $300.00.Current price is: $97.99.

Applications:
Hydraulics Air/Water Spray Painting
Features:
Two swivel joint inlets and two outlet risers to handle two equal lengths of hose. Chain and sprocket rewind powered by an electric motor. Power rewind reels are not supplied with a brake. Standard inlets 90 deg. ball bearing swivel joints 1/2″ female NPT threads. Standard outlets 1/2″ female NPT threads. Pressures to 3000 psi (207 bar). Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C). NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint. Reels for use with oxygen/acetylene.

Model Number	Hose Capacity of Reel (Ft.)				Approx. Weight (Lbs.)	Reel Dimensions (In.)
	I.D. (in)	1/4″	3/8″	1/2″
	O.D. (in)	5/8″	3/4″	7/8″		A	B	E Crank	E Power	F Crank	F Power	X
E-2016-17-18		(two) 100′ lengths	(two) 75′ lengths	(two) 50′ lengths	50 lbs.	13″	8″	18.5″	19″	21″	20″	11.5″
E-2020-17-18		(two) 175′ lengths	(two) 125′ lengths	(two) 75′ lengths	52 lbs.	17″	12″	18.5″	19″	25″	24″	15.5″
E-2026-17-18		(two) 275′ lengths	(two) 200′ lengths	(two) 125′ lengths	54 lbs.	23″	18″	18.5″	19″	31″	30″	21.5″
E-2030-17-18		(two) 350′ lengths	(two) 250′ lengths	(two) 175′ lengths	55 lbs.	27″	22″	18.5″	19″	35″	34″	25.5″
E-2036-17-18		(two) 425′ lengths	(two) 300′ lengths	(two) 225′ lengths	57 lbs.	33″	28″	18.5″	19″	41″	40″	31.5″
