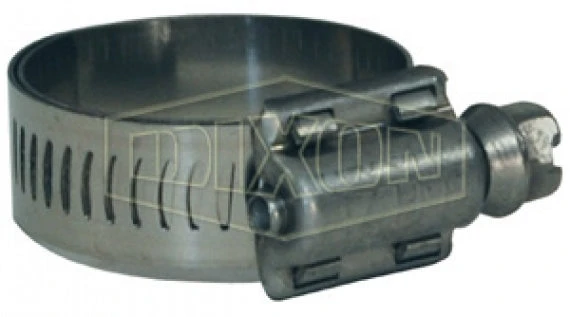

DLS9436 By Dixon Valve | Style DLS | Aero-Seal® Liner Worm Gear Clamp | 1/2″ Band Width | Hose OD Range: From 1-13/16″ To 2-3/4″ | Stainless Steel Band | 410 Stainless Steel Screw | Box Of 10

Original price was: $32.53.Current price is: $22.77.

Features:
The integral extension of the band as a liner (no rivets or welds) protects soft surface hose (silicone and others) from damage caused by extrusion or shearing through the band slots Screw design: 5/16″ hex slotted hex head
Materials:
Style DL Band, Saddle, Housing: Stainless Steel. Screw: Plated Carbon Steel Screw. Style DLS Band and Housing: Stainless Steel. Screw: 410 Stainless Steel Screw.

Style DL Part Number	Style DLS Part Number	Band Width	Hose OD
Style DL Part Number	Style DLS Part Number	Band Width	From	To
DL9206	DLS9406	1/2″	7/16″	25/32″
DL9208	DLS9408	1/2″	1/2″	29/32″
DL9210	DLS9410	1/2″	9/16″	1-1/16″
DL9212	DLS9412	1/2″	11/16″	1-1/4″
DL9216	DLS9416	1/2″	13/16″	1-1/2″
DL9220	DLS9420	1/2″	13/16″	1-3/4″
DL9224	DLS9424	1/2″	1-1/16″	2″
DL9228	DLS9428	1/2″	1-5/16″	2-1/4″
DL9232	DLS9432	1/2″	1-9/16″	2-1/2″
DL9236	DLS9436	1/2″	1-13/16″	2-3/4″
DL9240	DLS9440	1/2″	2-1/16″	3″
DL9244	DLS9444	1/2″	2-5/16″	3-1/4″
DL9248	DLS9448	1/2″	2-9/16″	3-1/2″
