Sale!
DG063-300-S-NPT By Brennan Inc. | Pressure Gauge | 0-300 PSI | For 1/4″ NPT Stem | Stainless Steel
Original price was: $24.79.$17.35Current price is: $17.35.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
 | ||||||||
|---|---|---|---|---|---|---|---|---|

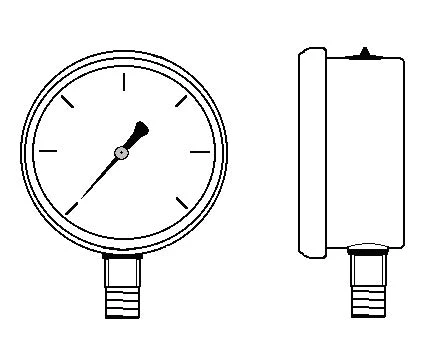

| Gauge Vesion | Dimensions (in/mm) | |||||||
| A | B | C | D | E | F | G | ||
| Stem Mount | 2.80″ / 71mm | 1.40″ / 36mm | 1.07″ / 27mm | 3.55″ / 90mm | 1/4″ NPT | – | – | |
| Panel Mount – U-Bolt | 2.80″ / 71mm | 1.34″ / 34mm | 0.94″ / 24mm | 2.28″ / 58mm | 1/4″ NPT | 3.84″ / 98mm | 2.48″ / 63mm | |
| Panel Mount – Flange | 2.80″ / 71mm | 1.34″ / 34mm | 0.94″ / 24mm | 2.28″ / 58mm | 1/4″ NPT | 3.45″ / 88mm | 2.48″ / 63mm | |
| Part Number | Material | Description | PSI |
|---|---|---|---|
| DG063-100-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-100 PSI |
| DG063-100-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-100 PSI |
| DG063-1000-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-1000 PSI |
| DG063-1000-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-1000 PSI |
| DG063-1000-S-UNF | Stainless Steel | for 1/4″ SAE Stem | 0-1000 PSI |
| DG063-10000-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-10000 PSI |
| DG063-10000-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-10000 PSI |
| DG063-10000-S-UNF | Stainless Steel | for 1/4″ SAE Stem | 0-10000 PSI |
| DG063-1500-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-1500 PSI |
| DG063-1500-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-1500 PSI |
| DG063-2000-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-2000 PSI |
| DG063-2000-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-2000 PSI |
| DG063-2000-S-UNF | Stainless Steel | for 1/4″ SAE Stem | 0-2000 PSI |
| DG063-300-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-300 PSI |
| DG063-300-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-300 PSI |
| DG063-3000-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-3000 PSI |
| DG063-3000-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-3000 PSI |
| DG063-3000-S-UNF | Stainless Steel | for 1/4″ SAE Stem | 0-3000 PSI |
| DG063-30HG15-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 30″HG-15 |
| DG063-30HG15-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 30″HG-15 |
| DG063-4000-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-4000 PSI |
| DG063-4000-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-4000 PSI |
| DG063-5000-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-5000 PSI |
| DG063-5000-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-5000 PSI |
| DG063-5000-S-UNF | Stainless Steel | for 1/4″ SAE Stem | 0-5000 PSI |
| DG063-600-PU-NPT | Stainless Steel | Panel Mount with U-Bracket | 0-600 PSI |
| DG063-600-S-NPT | Stainless Steel | for 1/4″ NPT Stem | 0-600 PSI |
| DG063-600-S-UNF | Stainless Steel | for 1/4″ SAE Stem | 0-600 PSI |
