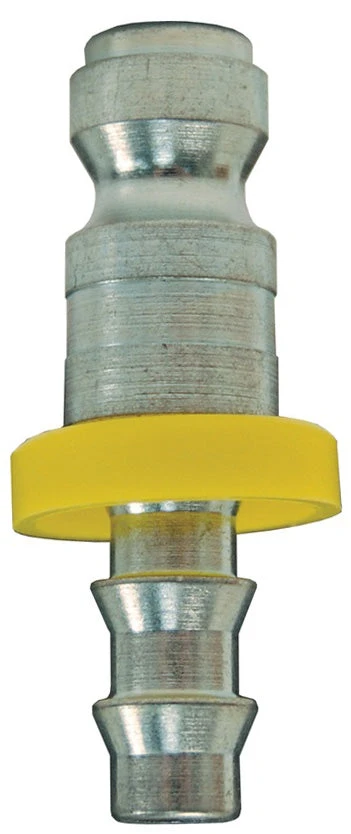

DCP144L Air Chief By Dixon Valve | Pneumatic Automotive Interchange Plug | Semi-Automatic | Push-On Hose Barb | 3/8″ Hose ID X 1/4″ Body Size | Steel

Original price was: $12.00.Current price is: $8.40.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Compatibility & Interchange:
Interchange with popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton, and Tru-Flate, some designs do not interchange with others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration.
Specifications:
Pressure rating: 300 PSI Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer’s catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. For air service only.

Pneumatic Automotive Interchange Plug \| Semi-Automatic \| Push-On Hose Barb

Part Number	Coupling Type	Material	Body Size	Hose ID	Flow Rating at 100 PSI
DCP142L	Plug/Male	Steel	1/4″	1/4″	37 CFM
DCP144L	Plug/Male	Steel	1/4″	3/8″	37 CFM
DCP544L	Plug/Male	Steel	3/8″	3/8″	70 CFM

Pneumatic Automotive Interchange Coupler/Socket \| Semi-Automatic \| Push-On Hose Barb

Part Number	Coupling Type	Material	Body Size	Hose ID	Flow Rating at 100 PSI
DC242L	Socket/Female	Brass	1/4″	1/4″	37 CFM
DC244L	Socket/Female	Brass	1/4″	3/8″	37 CFM
DC644L	Socket/Female	Steel	3/8″	3/8″	70 CFM
