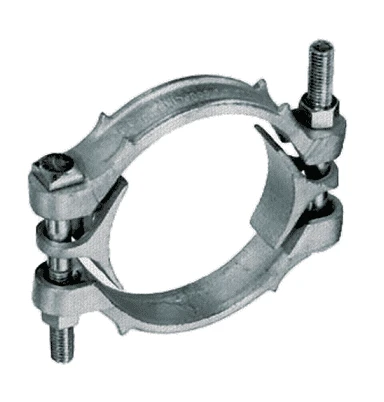

DB49 By Kuriyama | Double Bolt Hose Clamp | Finish: Zinc Plated | Size Range: 1-5/8″ – 1-15/16″ | Torque: 20 Ft. Lbs. | Ductile Iron

Applications:
Agriculture, Construction, Material Handling For use with Kuriyama Hoses
Features:
N/A
Materials:
Zinc Plated Ductile Iron

Part Number	Size Range (in.)	Torque (ft. lbs.)	Weight (Lbs.)
DB29	7/8″ – 1 9/64″	20ft	0.29 lbs
DB34	1-5/32″ – 1-11/32″	20ft	0.31 lbs
DB40	1-5/16″ – 1-19/32″	20ft	0.43 lbs
DB49	1-5/8″ – 1-15/16″	20ft	0.56 lbs
DB60	1-7/8″ – 2-3/8″	20ft	0.64 lbs
DB76	2-3/8″ – 3-1/64″	40ft	0.73 lbs
DB94	3-1/32″ – 3-11/16″	40ft	1.30 lbs
DB400	3-1/2 – 4″	40ft”	1.54 lbs
DB463	4-1/16″ – 4-7/16″	40ft	1.79 lbs

DB525

4-3/16″ – 5″

60ft”

2.14 lbs

DB550

5″ – 5-1/2″

60ft

2.27 lbs

DB600

5-1/2 – 6-1/16″

60ft

2.65 lbs

DB675

6-1/8″ – 6-7/8″

60ft

2.98 lbs

DB769

6-15/16 – 7-5/8″

60ft

3.81 lbs

DB818

7-11/16″ – 8-3/16″

125ft

5.11 lbs

DB875

8-1/4″ – 8-7/8″

125ft

5.64 lbs

DB988

8-15/16″ – 9-7/8″

125ft

6.15 lbs

DB1125

9-15/16″ – 11-3/8″

125ft

9.48 lbs

DB1275

11-3/16″ – 12-1/2″

125ft

9.61 lbs

DB1360

12-3/16″ – 14″

200ft

15.43 lbs
