CS67-10X20 By Couplamatic | VARI-CRIMP Coupling | 5/8″ Hose ID X M30x2.0 Thread Din Heavy 24° Seat Male Solid | Straight | Trivalent Zinc Plating | Replaces: 10M70V

Original price was: $15.73.Current price is: $11.01.

SKU: AG9ZZ 7356011217061 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, LegacyProductTypeReplacement_Male Solid, Male-solid, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_straight, Thread-type_din-heavy, VARI-CRIMP Couplings, VARI-CRIMP DIN Heavy 24° Seat - Male Solid, VARI-CRIMP DIN Heavy Fittings

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

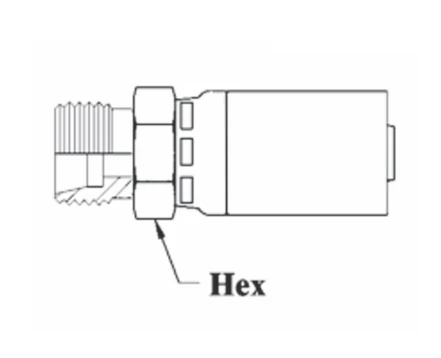

Part Number	Hose ID	Thread Size	Tube Size	Hex Size	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube Size	Hex Size	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS67-4X8	1/4″	M16x1.5	8mm	11/16″	4M58V	HY04-08MZ16A	1D2HY-8-4	04U-08F
CS67-4X10	1/4″	M18x1.5	10mm	3/4″	4M60V	HY04-10MZ18A	1D0HY-10-4	04U-10F
CS67-6X10	3/8″	M18x1.5	10mm	3/4″	6M60V	HY06-10MZ18A	–	06U-10F
CS67-6X12	3/8″	M20x1.5	12mm	13/16″	6M62V	HY06-12MZ20A	1D2HY-12-6	06U-12F
CS67-6X14	3/8″	M22x1.5	14mm	7/8″	6M64V	–	–	–
CS67-8X16	1/2″	M24x1.5	16mm	7/8″	8M66V	HY08-16MZ24A	1D2HY-16-8	08U-16F
CS67-10X20	5/8″	M30x2.0	20mm	1-1/4″	10M70V	–	–	–

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
