Sale!
CS41-6X10 By Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID X M16x1.5 Thread DIN Light Universal Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 6D10V

CS41-6X10 By Couplamatic | VARI-CRIMP Coupling | 3/8″ Hose ID X M16x1.5 Thread DIN Light Universal Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 6D10V

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 7356009185445 Categories: , Tags: , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

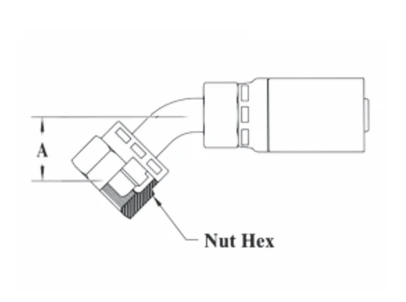

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS41-4X8 1/4″ 8mm M14x1.5 0.96″ 11/16″ 4D08V HY04-08RU14A45T 1C4HY-8-4 04U-08D
CS41-4X10 1/4″ 10mm M16x1.5 0.96″ 3/4″ 4D10V – – 04U-10D
CS41-6X10 3/8″ 10mm M16x1.5 0.96″ 3/4″ 6D10V HY06-10RU16A45T 1C4HY-10-6 06U-10D
CS41-6X12 3/8″ 12mm M18x1.5 1.00″ 7/8″ 6D12V – – 06U-12D
CS41-8X15 1/2″ 15mm M22x1.5 1.18″ 1-1/16″ 8D15V HY08-15RU22A45T 1C4HY-15-8 08U-15D
CS41-10X18 5/8″ 18mm M26x1.5 1.25″ 1-1/4″ 10D18V – – 10U-18D
CS41-12X22 3/4″ 22mm M30x2.0 1.41″ 1-1/2″ 12D22V HY12-22RU30B45T 1C4HY-22-12 12U-22D

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
