CS25-6X8 By Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID X 3/4x16 Thread JIC/SAE Dual Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 6169V | Pack Of 5

CS25-6X8 By Couplamatic | VARI-CRIMP Coupling | 3/8″ Hose ID X 3/4×16 Thread JIC/SAE Dual Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 6169V | Pack Of 5

Original price was: $45.24.Current price is: $31.67.

SKU: AG9ZZ 7355986608293 Category: Fittings & Clamps Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Female-swivel, LegacyProductTypeReplacement_Female Swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_45-deg-elbow, Thread-type_jic, Thread-type_sae, VARI-CRIMP Couplings, VARI-CRIMP JIC Fittings, VARI-CRIMP JIC/SAE Dual Seat - 45° Female Swivel

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

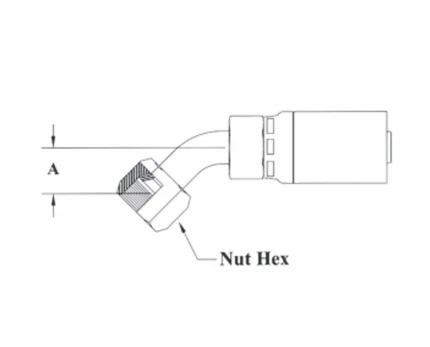

Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS25-4X4	1/4″	7/16×20	1/4″	0.47″	9/16″	4127V	HY04-04FJ45T	137HY-4-4	04U-684
CS25-4X5	1/4″	1/2×20	5/16″	0.53″	5/8″	4154V	HY04-05FJ45T	137HY-5-4	04U-685
CS25-4X6*	1/4″	9/16×18	3/8″	0.59″	11/16″	4181V*	–	–	04U-686
CS25-6X4	3/8″	7/16×20	1/4″	0.47	9/16″	6184V	–	–	06U-684
CS25-6X5	3/8″	1/2×20	5/16″	0.53″	5/8″	6130V	–	–	–
CS25-6X6*	3/8″	9/16×18	3/8″	0.59″	11/16″	6157V*	HY06-06FJ45T	137HY-6-6	06U-686
CS25-6X8	3/8″	3/4×16	1/2″	0.71″	7/8″	6169V	HY06-08FJ45T	137HY-8-6	06U-688
CS25-8X8	1/2″	3/4×16	1/2″	0.71″	7/8″	8130V	HY08-08FJ45T	137HY-8-8	08U-688
CS25-8X10	1/2″	7/8×14	5/8″	0.84″	1″	8157V	HY08-10FJ45T	137HY-10-8	08U-690
CS25-10X10	5/8″	7/8×14	5/8″	0.68″	1″	1057V	HY10-10FJ45T	137HY-10-10	10U-690
CS25-10X12*	5/8″	1-1/16×12	3/4″	0.78″	1-1/4″	1063V*	HY10-12FJ45T	–	10U-692
CS25-12X12*	3/4″	1-1/16×12	3/4″	1.12″	1-1/4″	12612V*	HY12-12FJ45T	137HY-12-12	12U-692
CS25-12X16*	3/4″	1-5/16×12	1″	1.15″	1-1/2″	12663V*	–	–	12U-696
CCS25-16X16*	1″	1-5/16×12	1″	1.15″	1-1/2″	16612V*	HY16-16FJ45T	137HY-16-16	16U-696
CS25-20X20	1-1/4″	1-5/8×12	1-1/4″	1.69″	2″	20697V	–	–	–

* JIC Seat & Thread Only.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
