CS18-6X5 By Couplamatic | VARI-CRIMP Coupling | 3/8″ Hose ID X 1/2×20 Thread Male Inverted Flare | Straight | Trivalent Zinc Plating | Replaces: 6109V

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 7356001124517 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_1 and 2 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, LegacyProductTypeReplacement_Male Inverted Flare, Male-inverted-flare, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_straight, VARI-CRIMP Couplings, VARI-CRIMP Male Inverted Flare, VARI-CRIMP Male Inverted Flare Fittings

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

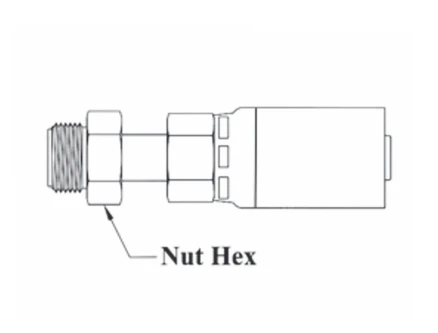

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS18-4X3	1/4″	3/8×24	3/16″	3/8″	4169V	HY04-03MF	128HY-3-4	04U-B03
CS18-4X4	1/4″	7/16×24	1/4″	7/16″	4106V	HY04-04MF	128HY-4-4	04U-B04
CS18-4X5	1/4″	1/2×20	5/16″	1/2″	4133V	HY04-05MF	128HY-5-4	04U-B05
CS18-6X4	3/8″	7/16×24	1/4″	7/16″	6175V	HY06-04MF	–	06U-B04
CS18-6X5	3/8″	1/2×20	5/16″	1/2″	6109V	HY06-05MF	128HY-5-6	06U-B05
CS18-6X6	3/8″	5/8×18	3/8″	5/8″	6136V	HY06-06MF	128HY-6-6	06U-B06
CS18-6X7	3/8″	11/16×18	7/16″	11/16″	6193V	HY06-07MF	128HY-7-6	06U-B07
CS18-8X8	1/2″	3/4×18	1/2″	3/4″	8109V	HY08-08MF	128HY-8-8	08U-B08
CS18-8X10	1/2″	7/8×18	5/8″	7/8″	8136V	–	–	08U-B10

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
