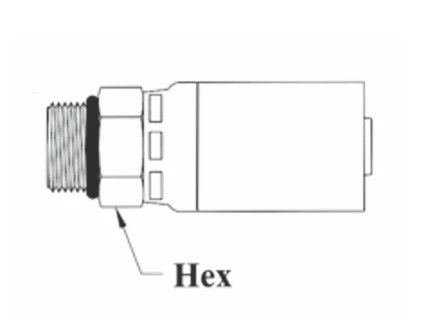

CS11-12X10 By Couplamatic | VARI-CRIMP Coupling | 3/4″ Hose ID X 7/8×14 Thread ORB Male Solid | Straight | Trivalent Zinc Plating | Replaces: 1248V
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS11-4X4 | 1/4″ | 7/16×20 | 1/4″ | 9/16″ | 451V | HY04-04RA | 105HY-4-4 | 04U-P04 |
| CS11-4X5 | 1/4″ | 1/2×20 | 5/16″ | 5/8″ | 454V | HY04-05RA | 105HY-5-4 | 04U-P05 |
| CS11-4X6 | 1/4″ | 9/16×18 | 3/8″ | 11/16″ | 448V | HY04-06RA | 105HY-6-4 | 04U-P06 |
| CS11-6X6 | 3/8″ | 9/16×18 | 3/8″ | 11/16″ | 636V | HY06-06RA | 105HY-6-6 | 06U-P06 |
| CS11-6X8 | 3/8″ | 3/4×16 | 1/2″ | 7/8″ | 639V | HY06-08RA | 105HY-8-6 | 06U-P08 |
| CS11-6X10 | 3/8″ | 7/8×14 | 5/8″ | 1″ | 642V | HY06-10RA | 105HY-10-6 | 06U-P10 |
| CS11-8X8 | 1/2″ | 3/4×16 | 1/2″ | 7/8″ | 830V | HY08-08RA | 105HY-8-8 | 08U-P08 |
| CS11-8X10 | 1/2″ | 7/8×14 | 5/8″ | 1″ | 833V | HY08-10RA | 105HY-10-8 | 08U-P10 |
| CS11-8X12 | 1/2″ | 1-1/16×12 | 3/4″ | 1-1/4″ | 860V | HY08-12RA | 105HY-12-8 | 08U-P12 |
| CS11-10X8 | 5/8″ | 3/4×16 | 1/2″ | 15/16″ | 1030V | HY10-08RA | – | 10U-P08 |
| CS11-10X10 | 5/8″ | 7/8×14 | 5/8″ | 1″ | 1033V | HY10-10RA | 105HY-10-10 | 10U-P10 |
| CS11-10X12 | 5/8″ | 1-1/16×12 | 3/4″ | 1-1/4″ | 1036V | – | – | 10U-P12 |
| CS11-12X10 | 3/4″ | 7/8×14 | 5/8″ | 1-1/8″ | 1248V | HY12-10RA | 105HY-10-12 | 12U-P10 |
| CS11-12X12 | 3/4″ | 1-1/16×12 | 3/4″ | 1-1/4″ | 1227V | HY12-12RA | 105HY-12-12 | 12U-P12 |
| CS11-16X16 | 1″ | 1-5/16×12 | 1″ | 1-1/2″ | 1630V | HY16-16RA | 105HY-16-16 | 16U-P16 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
