Sale!
CS10-8X8 By Couplamatic | VARI-CRIMP Coupling | 1/2″ Hose ID X G-1/2-14 Thread 60° Cone Female Swivel | 1/2″ BSPP | Straight | Trivalent Zinc Plating | Replaces: 881V
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Description: | |||
|---|---|---|---|
|

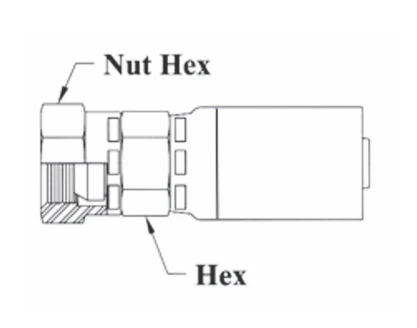

| Part Number | Hose ID | BSPP Size | Thread Size | Hex Size | Nut Hex | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS10-4X4 | 1/4″ | 1/4″ | G-1/4-19 | 9/16″ | 3/4″ | 481V | HY04-04BPF | 1GUHY-4-4 | 04U-354 |
| CS10-4X6 | 1/4″ | 3/8″ | G-3/8-19 | 3/4″ | 7/8″ | 486V | HY04-06BPF | 1GUHY-6-4 | 04U-356 |
| CS10-6X6 | 3/8″ | 3/8″ | G-3/8-19 | 3/4″ | 7/8″ | 681V | HY06-06BPF | 1GUHY-6-6 | 06U-356 |
| CS10-6X8 | 3/8″ | 1/2″ | G-1/2-14 | 3/4″ | 1″ | 694V | HY06-12BPF | 192HY-8-6 1GUHY-8-6 | 06U-358 |
| CS10-8X8 | 1/2″ | 1/2″ | G-1/2-14 | 7/8″ | 1″ | 881V | HY08-08BPF | CS10-8X8 | 08U-358 |
| CS10-10X10 | 5/8″ | 5/8″ | G-5/8-14 | 15/16″ | 1-3/16″ | 1081V | HY10-10BPF | 1GUHY-10-10 | 10U-360 |
| CS10-12X12 | 3/4″ | 3/4″ | G-3/4-14 | 1-1/8″ | 1-1/4″ | 1281V | HY12-12BPF | 1GUHY-12-12 | 12U-362 |
| CS10-16X16 | 1″ | 1″ | G-1-11 | 1-3/8″ | 1-1/2″ | 1681V | HY16-16BPF | 1GUHY-16-16 | 16U-366 |
| CS10-20X20 | 1-1/4″ | 1-1/4″ | G-1-1/4-11 | 1-11/16″ | 1-7/8″ | 2081V | – | – | 20U-370 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
