CS09-12X12 By Couplamatic | VARI-CRIMP Coupling | 3/4″ Hose ID X 1-1/16×12 Thread JIC 37° Female Solid | Straight | Trivalent Zinc Plating | Replaces: 1221V | Pack Of 10
Original price was: $68.74.$48.12Current price is: $48.12.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Description: | |||
|---|---|---|---|
|

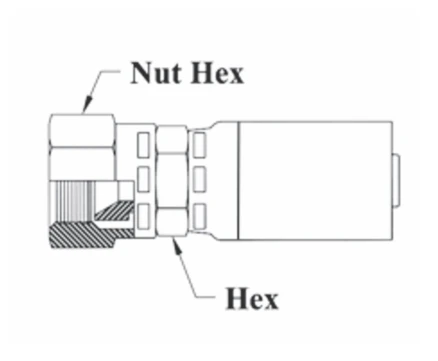

| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Nut Hex | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS09-3X4 | 3/16″ | 7/16×20 | 1/4″ | 5/8″ | 9/16″ | 324V | – | – | – |
| CS09-4X4 | 1/4″ | 7/16×20 | 1/4″ | 9/16″ | 9/16″ | 424V | HY04-04FJ | 106HY-4-4 | 04U-604 |
| CS09-4X5 | 1/4″ | 1/2×20 | 5/16″ | 9/16″ | 5/8″ | 427V | HY04-05FJ | 106HY-5-4 | 04U-605 |
| CS09-4X6 | 1/4″ | 9/16×18 | 3/8″ | 9/16″ | 11/16″ | 433V | HY04-06FJ | 106HY-6-4 | 04U-606 |
| CS09-6X4 | 3/8″ | 7/16×20 | 1/4″ | 11/16″ | 9/16″ | 675V | HY06-04FJ | 106HY-4-6 | 06U-604 |
| CS09-6X6 | 3/8″ | 9/16×18 | 3/8″ | 11/16″ | 11/16″ | 627V | HY06-06FJ | 106HY-6-6 | 06U-606 |
| CS09-6X8 | 3/8″ | 3/4×16 | 1/2″ | 11/16″ | 7/8″ | 630V | HY06-08FJ | 106HY-8-6 | 06U-608 |
| CS09-6X10 | 3/8″ | 7/8×14 | 5/8″ | 7/8″ | 1″ | 657V | HY06-10FJ | 106HY-10-6 | 06U-610 |
| CS09-6X12 | 3/8″ | 1-1/16×12 | 3/4″ | 1″ | 1-1/4″ | 691V | HY06-12FJ | 106HY-12-6 | 06U-612 |
| CS09-8X6 | 1/2″ | 9/16×18 | 3/8″ | 13/16″ | 11/16″ | 842V | HY08-06FJ | 106HY-6-8 | 08U-606 |
| CS09-8X8 | 1/2″ | 3/4×16 | 1/2″ | 13/16″ | 7/8″ | 824V | HY08-08FJ | 106HY-8-8 | 08U-608 |
| CS09-8X10 | 1/2″ | 7/8×14 | 5/8″ | 7/8″ | 1″ | 827V | HY08-10FJ | 106HY-10-8 | 08U-610 |
| CS09-8X12 | 1/2″ | 1-1/16×12 | 3/4″ | 1-1/8″ | 1-1/4″ | 845V | HY08-12FJ | 106HY-12-8 | 08U-612 |
| CS09-8X16 | 1/2″ | 1-5/16×12 | 1″ | 1-1/4″ | 1-1/2″ | 863V | HY08-16FJ | 106HY-16-8 | 08U-616 |
| CS09-10X8 | 5/8″ | 3/4×16 | 1/2″ | 15/16″ | 7/8″ | 1024V | HY10-08FJ | 106HY-8-10 | 10U-608 |
| CS09-10X10 | 5/8″ | 7/8×14 | 5/8″ | 15/16″ | 1″ | 1027V | HY10-10FJ | 106HY-10-10 | 10U-610 |
| CS09-10X12 | 5/8″ | 1-1/16×12 | 3/4″ | 1-1/8″ | 1-1/4″ | 1021V | HY10-12FJ | 106HY-12-10 | 10U-612 |
| CS09-12X10 | 3/4″ | 7/8×14 | 5/8″ | 1-1/8″ | 1″ | 1230V | HY12-10FJ | 106HY-10-12 | 12U-610 |
| CS09-12X12 | 3/4″ | 1-1/16×12 | 3/4″ | 1-1/8″ | 1-1/4″ | 1221V | HY12-12FJ | 106HY-12-12 | 12U-612 |
| CS09-12X14 | 3/4″ | 1-3/16×12 | 7/8″ | 1-1/4″ | 1-1/2″ | 1245V | HY12-14FJ | 106HY-14-12 | 12U-614 |
| CS09-12X16 | 3/4″ | 1-5/16×12 | 1″ | 1-3/8″ | 1-1/2″ | 1236V | HY12-16FJ | 106HY-16-12 | 12U-616 |
| CS09-16X12 | 1″ | 1-1/16×12 | 3/4″ | 1-3/8″ | 1-1/4″ | 1621V | HY16-12FJ | 106HY-12-16 | 16U-612 |
| CS09-16X16 | 1″ | 1-5/16×12 | 1″ | 1-3/8″ | 1-1/2″ | 1618V | HY16-16FJ | 106HY-16-16 | 16U-616 |
| CS09-16X20 | 1″ | 1-5/8×12 | 1-1/4″ | 1-11/16″ | 2″ | 1624V | HY16-20FJ | 106HY-20-16 | 16U-620 |
| CS09-20X20 | 1-1/4″ | 1-5/8×12 | 1-1/4″ | 1-11/16″ | 2″ | 2005V | HY20-20FJ | 106HY-20-20 | 20U-620 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
