CS01-8X12 By Couplamatic | VARI-CRIMP Coupling | 1/2″ Hose ID X 3/4-14 Thread NPTF Male Solid | Straight | Trivalent Zinc Plating | Replaces: 854V
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Description: | |||
|---|---|---|---|
|

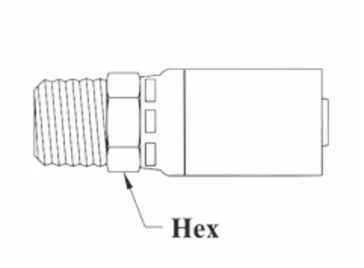

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS01-4X2 | 1/4″ | 1/8″ | 1/8-27 | 9/16″ | 400V | HY04-02MP | 101HY-2-4 | 04U-102 |
| CS01-4X4 | 1/4″ | 1/4″ | 1/4-18 | 9/16″ | 403V | HY04-04MP | 101HY-4-4 | 04U-104 |
| CS01-4X6 | 1/4″ | 3/8″ | 3/8-18 | 11/16″ | 415V | HY04-06MP | 101HY-6-4 | 04U-106 |
| CS01-4X8 | 1/4″ | 1/2″ | 1/2-14 | 7/8″ | 439V | HY04-08MP | 101HY-8-4 | 04U-108 |
| CS01-6X4 | 3/8″ | 1/4″ | 1/4-18 | 3/4″ | 600V | HY06-04MP | 101HY-4-6 | 06U-104 |
| CS01-6X6 | 3/8″ | 3/8″ | 3/8-18 | 3/4″ | 603V | HY06-06MP | 101HY-6-6 | 06U-106 |
| CS01-6X8 | 3/8″ | 1/2″ | 1/2-14 | 7/8″ | 615V | HY06-08MP | 101HY-8-6 | 06U-108 |
| CS01-8X4 | 1/2″ | 1/4″ | 1/4-18 | 7/8″ | 866V | HY08-04MP | 101HY-4-8 | 08U-104 |
| CS01-8X6 | 1/2″ | 3/8″ | 3/8-18 | 7/8″ | 800V | HY08-06MP | 101HY-6-8 | 08U-106 |
| CS01-8X8 | 1/2″ | 1/2″ | 1/2-14 | 7/8″ | 803V | HY08-08MP | 101HY-8-8 | 08U-108 |
| CS01-8X12 | 1/2″ | 3/4″ | 3/4-14 | 1-1/8″ | 854V | HY08-12MP | 101HY-12-8 | 08U-112 |
| CS01-10X8 | 5/8″ | 1/2″ | 1/2-14 | 15/16″ | 1000V | HY10-08MP | 101HY-8-10 | 10U-108 |
| CS01-10X12 | 5/8″ | 3/4″ | 3/4-14 | 1-1/8″ | 1003V | HY10-12MP | 101HY-12-10 | 10U-112 |
| CS01-12X8 | 3/4″ | 1/2″ | 1/2-14 | 1-1/8″ | 1200V | HY12-08MP | 101HY-8-12 | 12U-108 |
| CS01-12X12 | 3/4″ | 3/4″ | 3/4-14 | 1-1/8″ | 1203V | HY12-12MP | 101HY-12-12 | 12U-112 |
| CS01-12X16 | 3/4″ | 1″ | 1-11-1/2 | 1-3/8″ | 1254V | HY12-16MP | 101HY-16-12 | 12U-116 |
| CS01-16X12 | 1″ | 3/4″ | 3/4-14 | 1-3/8″ | 1603V | HY16-12MP | 101HY-12-16 | 16U-112 |
| CS01-16X16 | 1″ | 1″ | 1-11-1/2 | 1-3/8″ | 1600V | HY16-16MP | 101HY-16-16 | 16U-116 |
| CS01-16X16BR* | 1″ | 1″ | 1-11-1/2 | 1-3/8″ | NA | – | – | – |
| CS01-20X20 | 1-1/4″ | 1-1/4″ | 1-1/4-11-1/2 | 1-11/16″ | 2000V | HY20-20MP | 101HY-20-20 | 20U-120 |
*BR – Brass Stem
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
