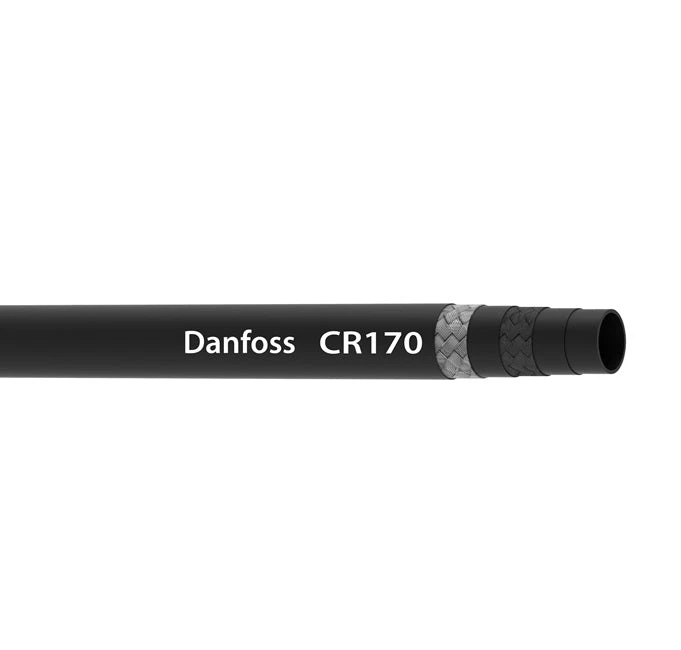

CR170-08 Aeroquip By Danfoss | LPG Single Stainless Steel Braided Transportation Hose | 0.41″ ID
Original price was: $19.39.$13.57Current price is: $13.57.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Hose Properties: | |||
|---|---|---|---|
| Application: | LPG (propane) vehicle, alternative fuel conversion systems. | SAE Ratings: | N/A |
| Other Ratings: | Meets: CGA Type III (Canadian Gas Association) NOTE: Sizes 8 & 12 only are UL MH60773 | Tube: | Nylon |
| Reinforcement: | Single Stainless Steel Braid | Cover: | Perforated Synthetic Rubber |
| Operating Parameters: | -40°F to +250°F (-40°C to +121°C) | ||
WARNING: LPG is a very hazardous liquid or gas and should be handled with maximum care to prevent leakage. Since the gas is heavier than air, it may flow along the ground if it escapes and cause an explosion
or a fire. No leakage should ever be tolerated.
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| CR170-06 | 7,9mm | 0.31″ | 17,0mm | 0.67″ | 24,0 bar | 350 psi | 630,0 bar | 9000 psi | 101,6mm | 4.00″ | 0,32 kg/m | 0.22 lbs/ft |
| CR170-08* | 10,4mm | 0.41″ | 19,6mm | 0.77″ | 24,0 bar | 350 psi | 560,0 bar | 8000 psi | 117,3mm | 4.62″ | 0,38 kg/m | 0.26 lbs/ft |
| CR170-12* | 15,9mm | 0.63″ | 28,0mm | 1.10″ | 24,0 bar | 350 psi | 414,0 bar | 6000 psi | 165,1mm | 6.50″ | 0,71 kg/m | 0.48 lbs/ft |
* Sizes 8 & 12 only are UL MH60773
Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
