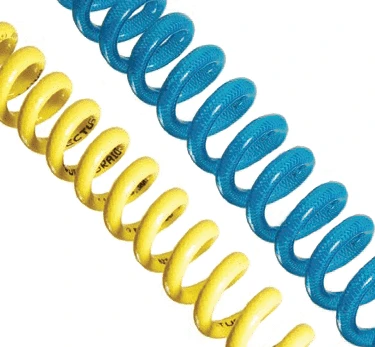

C4205 By Nycoil | SuperBraid® | Hose Assembly With Fittings | 220 PSI | 1/4" Swivel Male NPT | 1/4" ID X 3/8" OD | Coil W/Strain Relief Guard | 20ft

C4205 By Nycoil | SuperBraid® | Hose Assembly With Fittings | 220 PSI | 1/4″ Swivel Male NPT | 1/4″ ID X 3/8″ OD | Coil W/Strain Relief Guard | 20ft

Original price was: $46.82.Current price is: $32.77.

SKU: AG9ZZ 1488325967908 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • >>Superbraid<>Superbraid<
  • The >>SUPERBRAID<>SUPERBRAID<>SUPERBRAID<
  • The >>Superbraid<
  • >>SUPERBRAID<
  • Field attachable compression fittings are available for quick and easy installation without the need of any special tools. For rough applications that may require more frequent repairs, >>SUPERBRAID<
Features:
  • Super flexible – 100% kink proof
  • Easy to handle – 29% lighter weight than equivalent thermoplastic products and 63% less than equivalent rubber air hoses
  • Tight bend radius minimizes space requirements
  • Inner tube, braiding & outer cover will not separate
  • Quick in-the-field repairs can be made with commercially available hose barbs and clamps – no special kits are needed
  • Extremely tough and abrasion resistant
  • Rugged brass swivel fittings provide long life & minimal flow restrictions
  • State-of-the-art strain relief system protects the hose and increases its maneuverability
  • Low tension retractability – minimizes user fatigue
  • Abrasion resistant
  • Soft Polyurethane material will not mar finishes
  • Strong enough to repel most oils and chemicals
  • 16″ tail on the working (tool) end eliminates tangling of the tool with the coils
  • 8″ tail on the supply end makes the connection to the air source easy
Product Specifications:
  • Temperature Range: -40°F to +165°F (-40°C to +74°C)
  • Outer Cover: 85 Durometer Polyurethane
  • Inner Braiding: Polyester
  • Strain Relief Sleeves: Engineered Thermoplastic
  • Standard Colors: Yellow or Transparent Blue
Part Number Coils w/Strain Relief Guards Part Number Coils w/ Field Attach. Fittings Hose Size (ID x OD) Length Fittings Coil Inside Diameter Coil Outside Diameter Working Pressure @68 deg. F / 20 deg. C Color Code
feet inch inch PSI Bar Suffix Key
C305_ B305_ 3/16″ x 5/16″ 5ft 1/4″ Swivel, Male NPT 3/4″ 1-3/8″ 260 PSI 18.0 BAR 5 = Yellow 13 = Transparent Blue
C310_ B310_ 3/16″ x 5/16″ 10ft 1/4″ Swivel, Male NPT 3/4″ 1-3/8″ 260 PSI 18.0 BAR
C315_ B315_ 3/16″ x 5/16″ 15ft 1/4″ Swivel, Male NPT 3/4″ 1-3/8″ 260 PSI 18.0 BAR
C320_ B320_ 3/16″ x 5/16″ 20ft 1/4″ Swivel, Male NPT 3/4″ 1-3/8″ 260 PSI 18.0 BAR
C325_ B325_ 3/16″ x 5/16″ 25ft 1/4″ Swivel, Male NPT 3/4″ 1-3/8″ 260 PSI 18.0 BAR
C410_ B410_ 1/4″ x 3/8″ 10ft 1/4″ Swivel, Male NPT 1″ 1-3/4″ 220 PSI 15.2 BAR
C415_ B415_ 1/4″ x 3/8″ 15ft 1/4″ Swivel, Male NPT 1″ 1-3/4″ 220 PSI 15.2 BAR
C420_ B420_ 1/4″ x 3/8″ 20ft 1/4″ Swivel, Male NPT 1″ 1-3/4″ 220 PSI 15.2 BAR
C425_ B425_ 1/4″ x 3/8″ 25ft 1/4″ Swivel, Male NPT 1″ 1-3/4″ 220 PSI 15.2 BAR
C430_ B430_ 1/4″ x 3/8″ 30ft 1/4″ Swivel, Male NPT 1″ 1-3/4″ 220 PSI 15.2 BAR
C435_ B435_ 1/4″ x 3/8″ 35ft 1/4″ Swivel, Male NPT 1″ 1-3/4″ 220 PSI 15.2 BAR
C440_ B440_ 1/4″ x 3/8″ 40ft 1/4″ Swivel, Male NPT 1″ 1-3/4″ 220 PSI 15.2 BAR
C5A10_ B5A10_ 5/16″ x 15/32″ 10ft 1/4″ Swivel, Male NPT 1-1/4″ 2-1/4″ 185 PSI 12.8 BAR
C5A15_ B5A15_ 5/16″ x 15/32″ 15ft 1/4″ Swivel, Male NPT 1-1/4″ 2-1/4″ 185 PSI 12.8 BAR
C5A20_ B5A20_ 5/16″ x 15/32″ 20ft 1/4″ Swivel, Male NPT 1-1/4″ 2-1/4″ 185 PSI 12.8 BAR
C5A25_ B5A25_ 5/16″ x 15/32″ 25ft 1/4″ Swivel, Male NPT 1-1/4″ 2-1/4″ 185 PSI 12.8 BAR
C5A40_ B5A40_ 5/16″ x 15/32″ 40ft 1/4″ Swivel, Male NPT 1-1/2″ 2-1/2″ 185 PSI 12.8 BAR
C515_ B515_ 5/16″ x 15/32″ 15ft 3/8″ Swivel, Male NPT 1-1/4″ 2-1/4″ 185 PSI 12.8 BAR
C520_ B520_ 5/16″ x 15/32″ 20ft 3/8″ Swivel, Male NPT 1-1/4″ 2-1/4″ 185 PSI 12.8 BAR
C525_ B525_ 5/16″ x 15/32″ 25ft 3/8″ Swivel, Male NPT 1-1/4″ 2-1/4″ 185 PSI 12.8 BAR
C540_ B540_ 5/16″ x 15/32″ 40ft 3/8″ Swivel, Male NPT 1-1/2″ 2-1/2″ 185 PSI 12.8 BAR
C6A10_ B6A10_ 3/8″ x 9/16″ 10ft 1/4″ Swivel, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C6A20_ B6A20_ 3/8″ x 9/16″ 20ft 1/4″ Swivel, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C6A25_ B6A25_ 3/8″ x 9/16″ 25ft 1/4″ Swivel, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C6A30_ B6A30_ 3/8″ x 9/16″ 30ft 1/4″ Swivel, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C6A50_ B6A50_ 3/8″ x 9/16″ 50ft 1/4″ Swivel, Male NPT 2-1/4″ 3-3/8″ 200 PSI 13.8 BAR
N/A B6AR10_ 3/8″ x 9/16″ 10ft 1/4″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
N/A B6AR20_ 3/8″ x 9/16″ 20ft 1/4″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
N/A B6AR25_ 3/8″ x 9/16″ 25ft 1/4″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
N/A B6AR30_ 3/8″ x 9/16″ 30ft 1/4″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
N/A B6AR50_ 3/8″ x 9/16″ 50ft 1/4″ Rigid, Male NPT 2-1/4″ 3-3/8″ 200 PSI 13.8 BAR
C610_ B610_ 3/8″ x 9/16″ 10ft 3/8″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C620_ B620_ 3/8″ x 9/16″ 20ft 3/8″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C625_ B625_ 3/8″ x 9/16″ 25ft 3/8″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C630_ B630_ 3/8″ x 9/16″ 30ft 3/8″ Rigid, Male NPT 1-3/4″ 2-7/8″ 200 PSI 13.8 BAR
C650_ B650_ 3/8″ x 9/16″ 50ft 3/8″ Rigid, Male NPT 2-1/4″ 3-3/8″ 200 PSI 13.8 BAR
