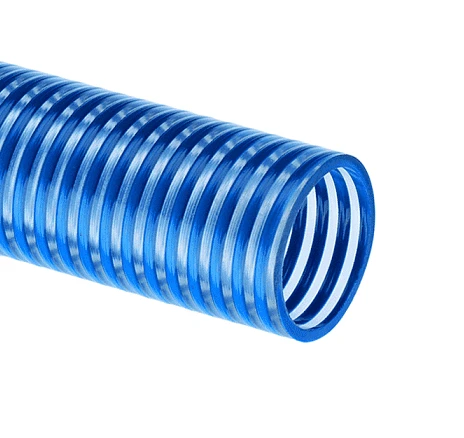

BW600X100 Tigerflex By Kuriyama | BW Series | Blue Water Low Temperature Suction Hose | 6″ ID | PVC | 100ft Length

Original price was: $340.00.Current price is: $98.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Extreme cold conditions, Pumps, Rental and construction dewatering, Trash, Water suction – standard duty,	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
“Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures. Beware of imitations! Blue Water truly remains flexible in extreme cold. Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. Smooth Outer Cover (Sizes 1″ – 4″) – Provides increased pressure rating and smooth surface for banding. Convoluted Outer Cover (Sizes 5″ & 6″) – Provides increased hose flexibility.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
BW075X100	3/4″	19.1mm	1.01″	25.6mm	115 PSI	75 PSI	Full	28 in.Hg	3″	100ft	0.19 lbs
BW100X100	1″	25.4mm	1.26″	32.0mm	90 PSI	65 PSI	Full	28 in .Hg	3″	100ft	0.22 lbs
BW125X100	1-1/4″	31.8mm	1.56″	39.6mm	90 PSI	65 PSI	Full	26 in .Hg	4″	100ft	0.36 lbs
BW150X100	1-1/2″	38.1mm	1.79″	45.5mm	90 PSI	65 PSI	Full	26 in. Hg	5″	100ft	0.48 lbs
BW200X100	2″	50.8mm	2.35″	59.8mm	90 PSI	65 PSI	Full	26 in. Hg	7″	100ft	0.62 lbs
BW250X100	2-1/2″	63.5mm	2.87″	73.0mm	70 PSI	48 PSI	Full	26 in. Hg	8″	100ft	0.87 lbs
BW300X100	3″	76.2mm	3.43″	87.0mm	65 PSI	45 PSI	Full	26 in. Hg	10″	100ft	1.23 lbs
BW400X100	4″	101.6mm	4.49″	114.0mm	55 PSI	40 PSI	Full	26 in. Hg	15″	100ft	1.83 lbs
BW500X100	5″	127.0mm	5.57″	141.5mm	45 PSI	30 PSI	28 in. Hg	24 in. Hg	25″	100ft	2.42 lbs
BW500X20	5″	127.0mm	5.57″	141.5mm	45 PSI	30 PSI	28 in. Hg	24 in. Hg	25″	20ft	2.42 lbs
BW600X100	6″	152.4mm	6.69″	170.0mm	40 PSI	25 PSI	28 in. Hg	22 in. Hg	30″	100ft	3.36 lbs
BW600X20	6″	152.4mm	6.69″	170.0mm	40 PSI	25 PSI	28 in. Hg	22 in. Hg	30″	20ft	3.36 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
*Actual service temperature range is application dependent.
