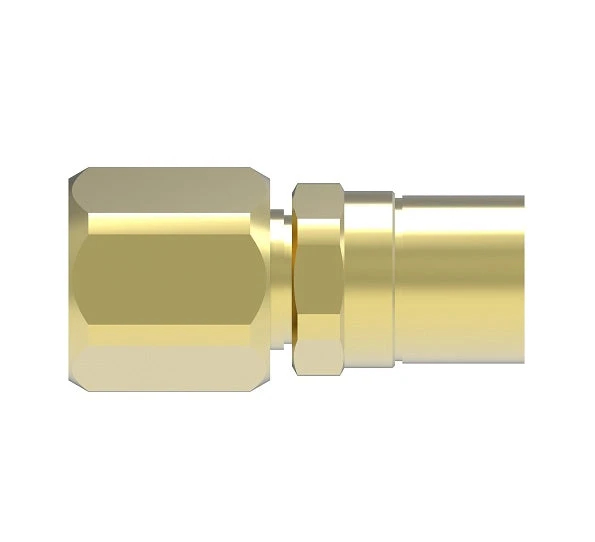

B-1312 Weatherhead By Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting For Everflex Hose | 5/8" Hose Barb X 3/4" Female SAE 37° JIC Swivel | Brass

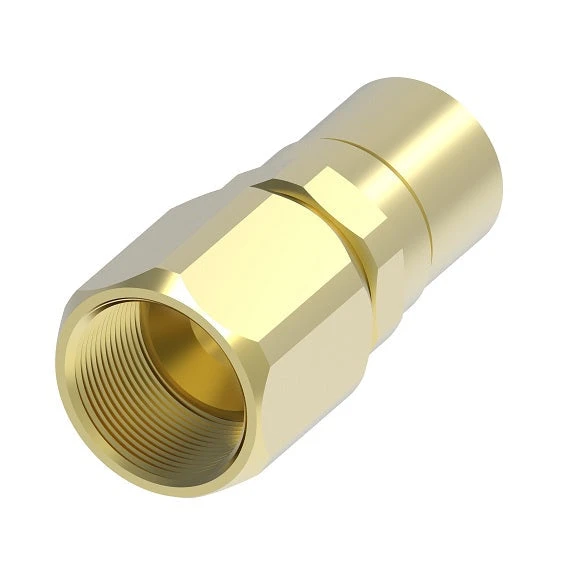

B-1312 Weatherhead By Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting For Everflex Hose | 5/8" Hose Barb X 3/4" Female SAE 37° JIC Swivel | Brass - Image 2

B-1312 Weatherhead By Danfoss | Everswage | Female SAE 37° JIC Swivel Crimp Fitting For Everflex Hose | 5/8″ Hose Barb X 3/4″ Female SAE 37° JIC Swivel | Brass

Original price was: $40.11.Current price is: $28.08.

SKU: AG9ZZ 8222111695013 Categories: Fittings & Clamps, Specialty Hose Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_PTFE Hose Fittings, Created in 2023, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

About:
Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process. The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
The operating pressure of 1/2″ I.D. hoses are lowered to 1500 psi, and 5/8″ I.D. hoses are lowered to 1250 psi when BRASS Everswage fittings are used.
Compatible Hose:
For use with Everflex Hose Series S, SC
Warning:
Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.


Part Number Brass	Part Number Carbon Steel	Part Number 300 Stainless Steel	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-off Factor**	E	F
B-1303	–	S-1303	5/32″	3/16″	3/8-24″	1.38″	0.85″	1/2″	–
B-1303-4	–	–	5/32″	1/4″	7/16-20	1.38″	0.90″	1/2″	9/16″
B-1304	C-1304	S-1304	3/16″	1/4″	7/16-20	1.50″	0.90″	1/2″	9/16″
B-1305	C-1305	S-1305	1/4″	5/16″	1/2-20	1.63″	0.94″	9/16″	5/8″
B-1306	C-1306	S-1306	5/16″	3/8″	9/16-18	1.63″	0.99″	5/8″	11/16″
B-1308	C-1308	S-1308	13/32″	1/2″	3/4-16	2.00″	1.18″	3/4″	7/8″
B-1310	C-1310	S-1310	1/2″	5/8″	7/8-14	2.00″	1.30″	7/8″	1″
B-1312	C-1312	S-1312	5/8″	3/4″	1-1/6-12	2.25″	1.38″	1-1/16″	1-1/4″
B-1316	C-1316	S-1316	7/8″	1″	1-5/16-12	2.88″	1.51″	1-3/8″	1-1/2″
–	C-1316Z*	–	7/8″	1″	1-5/16-12	2.88″	1.51″	1-3/8″	1-1/2″
B-1320Z*	C-1320Z*	S-1320Z*	1-1/8″	1-1/4″	1-5/8-12	3.13″	1.26″	1-3/4″	2″
