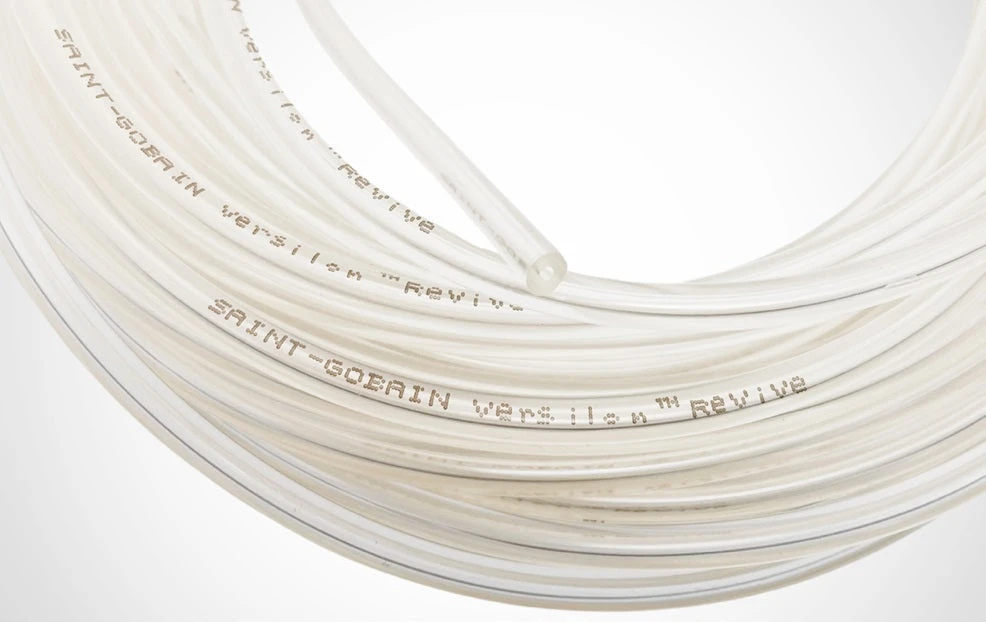

ATW00038 Versilon™ By Saint Gobain | 1/2″ I.D. X 3/4″ O.D. X 1/8″ Wall | ReVive 100% Pre-Consumer Recycled Tubing | 50′ Package Length

Original price was: $165.33.Current price is: $95.99.

SKU: AG9ZZ 8716850233509 Categories: Bulk Hose & Covers, Tubing Tags: Collection-lvl1_All Hose, Collection-lvl2_Tubing, Collection-lvl3_Chemical and Fuel Tubing, Created in 2024, Industrial Plastic Tubing, Matrixify2nd50kProducts, Recycled Tubing, ReVive Tubing, Saint Gobain Tubing, Tubing, Unit-ft-50, Versilon ReVive 100% Pre-Consumer Recycled Tubing

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Chemical Transfer, Soap and Detergent Transfer, Analytical Instruments	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Thermoplastic Elastomer (TPE)
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-76 deg. F (-60 deg. C) to 275 deg. F (135 deg. C)	Durometer Hardness (Shore A) 15 sec :	55
Color:	Translucent	Specifications	N/A
Literature:	Versilon™ ReVive 100% Pre-Consumer Recycled Tubing (PDF)
Excellent chemical resistance. Produced with 100% pre-consumer recycled content. Translucent, resulting in a visible fluid path. Flexible for ease of assembly. Sealable and weldable.
About:
Recycled materials can sometimes bring a level of concern regarding the raw material sources and associated lot traceability. For this reason, Saint-Gobain has vertically integrated the manufacturing process of Versilon™ ReVive. Production is carefully controlled by collecting specific materials from internal processes through extrusion of the final product. Inspection and lot traceability information is readily accessible as new batch numbers are assigned. The packaging of this material was also taken into consideration – to minimize the use of extraneous materials, tubing is packaged in a cardboard box without plastic wrap. The box contains up to 55% of recycled content and is 100% recyclable.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Min. Bend Radius (in.)	Max. Working Pressure at 73 deg. F (PSI)*	Vacuum Rating at 73 deg. F (in. Hg)	Length
ATW00003	1/16″	3/16″	1/16″	0.25″	26 PSI	29.9 in. Hg	50ft
ATW00007	1/8″	1/4″	1/16″	0.25″	17 PSI	29.9 in. Hg	50ft
ATW00012	3/16″	5/16″	1/16″	0.50″	13 PSI	29.9 in. Hg	50ft
ATW00017	1/4″	3/8″	1/16″	1″	9 PSI	25 in. Hg	50ft
ATW00022	5/16″	7/16″	1/16″	1.5″	9 PSI	15 in. Hg	50ft
ATW00027	3/8″	1/2″	1/16″	1.5″	8 PSI	15 in. Hg	50ft
ATW00038	1/2″	3/4″	1/8″	1.75″	10 PSI	29.9 in. Hg	50ft
ATW00046	5/8″	7/8″	1/8″	2.5″	8 PSI	20 in. Hg	50ft
ATW00053	3/4″	1″	1/8″	4″	6 PSI	10 in. Hg	50ft

*Working Pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

Unless otherwise noted, all tests were conducted at room temperature 73°F (23°C).
Values show were determined on 0.075″ (6,35 mm) thick extruded strip, 1/4″ ID x
3/8″ OD extruded tubing, 0.075″ (6,35 mm) thick molded ASTM plaques or molded
ASTM durometer buttons.
