Sale!

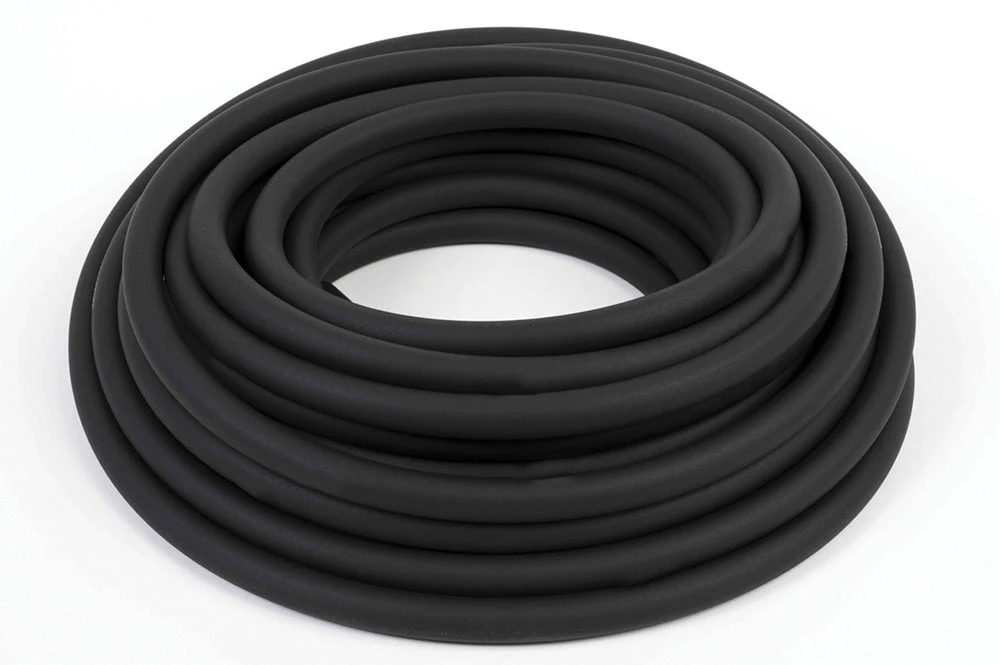

AFL00020 Tygon® By Saint Gobain | 1/4″ I.D. X 5/8″ O.D. X 3/16″ Wall | A-60-G | Industrial Grade Tubing | 50′ Package Length

Original price was: $149.23.Current price is: $95.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Soap and Disinfectant Dispensing, Printing Ink Transfer, Caustic Dispersing, Plating and Etching Chemicals, Wastewater Sampling, Glass and Windows Wash Systems, Vacuum Pumps, Cable Insulation, Abrasion-Resistant Sleeving	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	N/A
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	-75 deg. F (-60 deg. C) – 275 deg. F (135 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Literature:	Tygon® Industrial Grade Tubing – Formulation A-60-G (PDF)
Superior Weathering Abrasion Resistant Outstanding Flexural Fatigue Resistance Low Gas Permeability Versus Rubber Tubing Ozone and UV Light Resistant WARNING: Tygon® Industrial Grade Tubing – Formulation A-60-G is not intended as an implant material.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Bend Radius (in.)	Max. Suggested Working Pressure at 73 deg. F (PSI)*	Max. Suggested Working Pressure at 180 deg. F (PSI)*	Vacuum Rating at 73 deg. F (in. Hg)	Vacuum Rating at 180 deg. F (in. Hg)	Length
AFL00003	1/16″	3/16″	1/16″	1/4″	34 PSI	21 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00007	1/8″	1/4″	1/16″	1/2″	19 PSI	12 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00008	1/8″	3/8″	1/8″	1/2″	34 PSI	21 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00012	3/16″	5/16″	1/16″	3/4″	13 PSI	8 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00013	3/16″	3/8″	3/32″	1/2″	19 PSI	12 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00017	1/4″	3/8″	1/16″	7/8″	10 PSI	6 PSI	29.9 in. Hg	15.8 in. Hg	50ft
AFL00018	1/4″	7/16″	3/32″	3/4″	15 PSI	9 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00019	1/4″	1/2″	1/8″	3/4″	19 PSI	12 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00020	1/4″	5/8″	3/16″	1/2″	26 PSI	16 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00022	5/16″	7/16″	1/16″	1-1/4″	8 PSI	5 PSI	20.2 in. Hg	10.1 in. Hg	50ft
AFL00023	5/16″	1/2″	3/32″	1.0″	12 PSI	7 PSI	29.9 in. Hg	25.0 in. Hg	50ft
AFL00026	5/16″	13/16″	1/4″	1/2″	28 PSI	17 PSI	29.9 in. Hg	29.9 in. Hg	50ft
AFL00027	3/8″	1/2″	1/16″	1-3/8″	7 PSI	4 PSI	14.1 in. Hg	7.0 in. Hg	50ft
AFL00028	3/8″	9/16″	3/32″	1-1/2″	10 PSI	6 PSI	29.9 in. Hg	15.0 in. Hg	50ft
AFL00029	3/8″	5/8″	1/8″	1-1/8″	13 PSI	8 PSI	29.9 in. Hg	27.7 in. Hg	50ft
AFL00032	7/16″	9/16″	1/16″	2-1/4″	6 PSI	4 PSI	5.0 in. Hg	0.0 in. Hg	50ft
AFL00036	1/2″	5/8″	1/16″	3.0″	6 PSI	3 PSI	15.0 in. Hg	0.0 in. Hg	50ft
AFL00037	1/2″	11/16″	3/32″	2-1/4″	8 PSI	5 PSI	20.0 in. Hg	10.0 in. Hg	50ft
AFL00038	1/2″	3/4″	1/8″	1-1/8″	10 PSI	6 PSI	29.6 in. Hg	15.6 in. Hg	50ft
AFL00045	5/8″	13/16″	3/32″	3-1/4″	7 PSI	4 PSI	10.0 in. Hg	5.0 in. Hg	50ft
AFL00046	5/8″	7/8″	1/8″	2-3/4″	8 PSI	5 PSI	20.0 in. Hg	9.9 in. Hg	50ft
AFL00053	3/4″	1″	1/8″	3-1/2″	7 PSI	4 PSI	13.9 in. Hg	6.9 in. Hg	50ft
AFL00062	1″	1-1/4″	1/8″	5.0″	6 PSI	3 PSI	5.0 in. Hg	5.0 in. Hg	50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has
been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics
information documents for the most accurate and up to date data and specifics. Important! It is the user’s responsibility
to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical
tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness
for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and
sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
