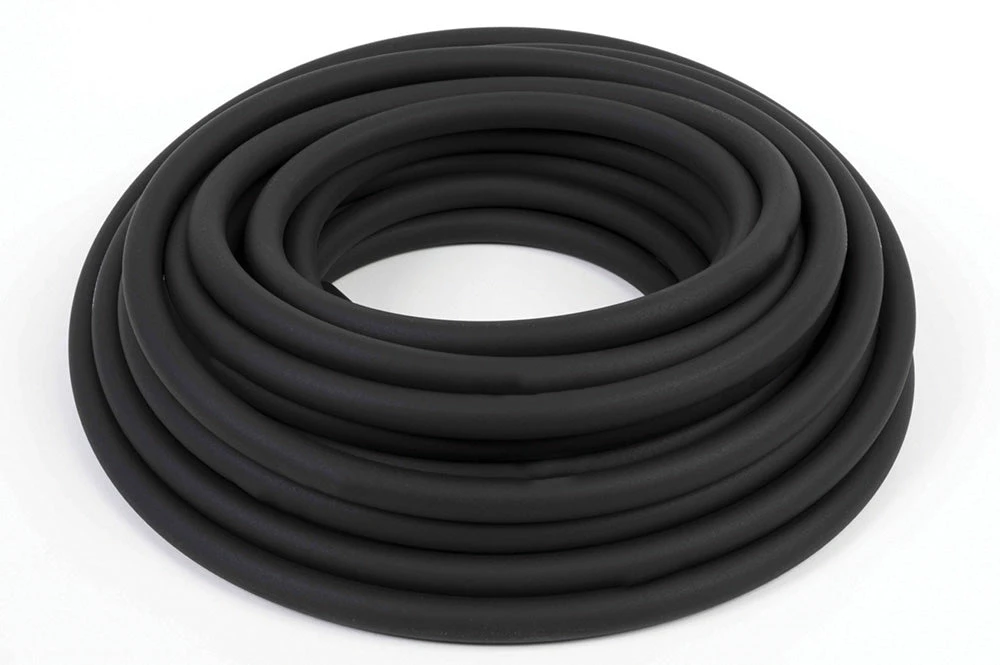

AFL00017 Tygon® By Saint Gobain | 1/4″ I.D. X 3/8″ O.D. X 1/16″ Wall | A-60-G | Industrial Grade Tubing | 50′ Package Length
Original price was: $35.65.$24.96Current price is: $24.96.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Soap and Disinfectant Dispensing, Printing Ink Transfer, Caustic Dispersing, Plating and Etching Chemicals, Wastewater Sampling, Glass and Windows Wash Systems, Vacuum Pumps, Cable Insulation, Abrasion-Resistant Sleeving | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -75 deg. F (-60 deg. C) – 275 deg. F (135 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Literature: | Tygon® Industrial Grade Tubing – Formulation A-60-G (PDF) | ||
| Other Features: | |||
| |||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Bend Radius (in.) | Max. Suggested Working Pressure at 73 deg. F (PSI)* | Max. Suggested Working Pressure at 180 deg. F (PSI)* | Vacuum Rating at 73 deg. F (in. Hg) | Vacuum Rating at 180 deg. F (in. Hg) | Length |
|---|---|---|---|---|---|---|---|---|---|
| AFL00003 | 1/16″ | 3/16″ | 1/16″ | 1/4″ | 34 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00007 | 1/8″ | 1/4″ | 1/16″ | 1/2″ | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00008 | 1/8″ | 3/8″ | 1/8″ | 1/2″ | 34 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00012 | 3/16″ | 5/16″ | 1/16″ | 3/4″ | 13 PSI | 8 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00013 | 3/16″ | 3/8″ | 3/32″ | 1/2″ | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00017 | 1/4″ | 3/8″ | 1/16″ | 7/8″ | 10 PSI | 6 PSI | 29.9 in. Hg | 15.8 in. Hg | 50ft |
| AFL00018 | 1/4″ | 7/16″ | 3/32″ | 3/4″ | 15 PSI | 9 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00019 | 1/4″ | 1/2″ | 1/8″ | 3/4″ | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00020 | 1/4″ | 5/8″ | 3/16″ | 1/2″ | 26 PSI | 16 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00022 | 5/16″ | 7/16″ | 1/16″ | 1-1/4″ | 8 PSI | 5 PSI | 20.2 in. Hg | 10.1 in. Hg | 50ft |
| AFL00023 | 5/16″ | 1/2″ | 3/32″ | 1.0″ | 12 PSI | 7 PSI | 29.9 in. Hg | 25.0 in. Hg | 50ft |
| AFL00026 | 5/16″ | 13/16″ | 1/4″ | 1/2″ | 28 PSI | 17 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AFL00027 | 3/8″ | 1/2″ | 1/16″ | 1-3/8″ | 7 PSI | 4 PSI | 14.1 in. Hg | 7.0 in. Hg | 50ft |
| AFL00028 | 3/8″ | 9/16″ | 3/32″ | 1-1/2″ | 10 PSI | 6 PSI | 29.9 in. Hg | 15.0 in. Hg | 50ft |
| AFL00029 | 3/8″ | 5/8″ | 1/8″ | 1-1/8″ | 13 PSI | 8 PSI | 29.9 in. Hg | 27.7 in. Hg | 50ft |
| AFL00032 | 7/16″ | 9/16″ | 1/16″ | 2-1/4″ | 6 PSI | 4 PSI | 5.0 in. Hg | 0.0 in. Hg | 50ft |
| AFL00036 | 1/2″ | 5/8″ | 1/16″ | 3.0″ | 6 PSI | 3 PSI | 15.0 in. Hg | 0.0 in. Hg | 50ft |
| AFL00037 | 1/2″ | 11/16″ | 3/32″ | 2-1/4″ | 8 PSI | 5 PSI | 20.0 in. Hg | 10.0 in. Hg | 50ft |
| AFL00038 | 1/2″ | 3/4″ | 1/8″ | 1-1/8″ | 10 PSI | 6 PSI | 29.6 in. Hg | 15.6 in. Hg | 50ft |
| AFL00045 | 5/8″ | 13/16″ | 3/32″ | 3-1/4″ | 7 PSI | 4 PSI | 10.0 in. Hg | 5.0 in. Hg | 50ft |
| AFL00046 | 5/8″ | 7/8″ | 1/8″ | 2-3/4″ | 8 PSI | 5 PSI | 20.0 in. Hg | 9.9 in. Hg | 50ft |
| AFL00053 | 3/4″ | 1″ | 1/8″ | 3-1/2″ | 7 PSI | 4 PSI | 13.9 in. Hg | 6.9 in. Hg | 50ft |
| AFL00062 | 1″ | 1-1/4″ | 1/8″ | 5.0″ | 6 PSI | 3 PSI | 5.0 in. Hg | 5.0 in. Hg | 50ft |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has
been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics
information documents for the most accurate and up to date data and specifics. Important! It is the user’s responsibility
to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical
tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness
for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and
sold by Packaged Length. At this time, this particular hose is not available “by the foot” through our site.
